H&M HM-D Automatic Push Fed Crosscut Saw

A heavy duty automatic upstroke crosscut ideal for all day use, with a wide of range of feeding and optional extras available.

  • High precision rack and pinion drive
  • Additonal CNC machining heads available
  • Specialist labelling options
HM Video Placeholder

About this Product

A completely automatic upstroke saw suitable for cutting single and packs of timber. The machine is equipped with a rack and pinion positioning system to ensure accurate positioning for both long and short lengths. The machine is of heavy duty construction and is suitable for heavy or variable weights of timber. The sawblade action is in a quarter circle enabling wide sections of timber to be crosscut. The machine can be manufactured to work either left to right or vice versa.

Hm Hm D Automatic Push Fed Crosscut Saw For Straight Cutting

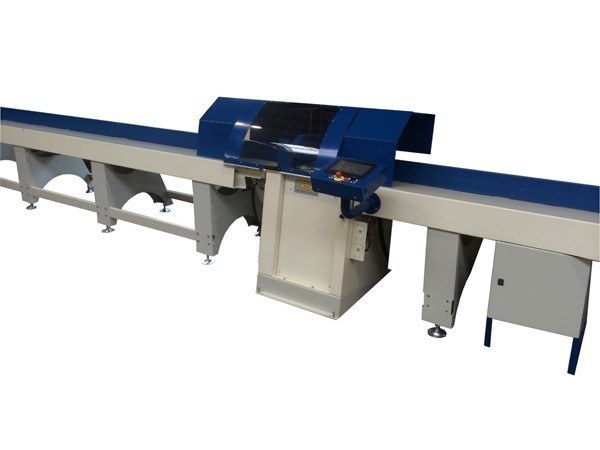

Hm Hm D Automatic Push Fed Crosscut Saw For Straight Cutting

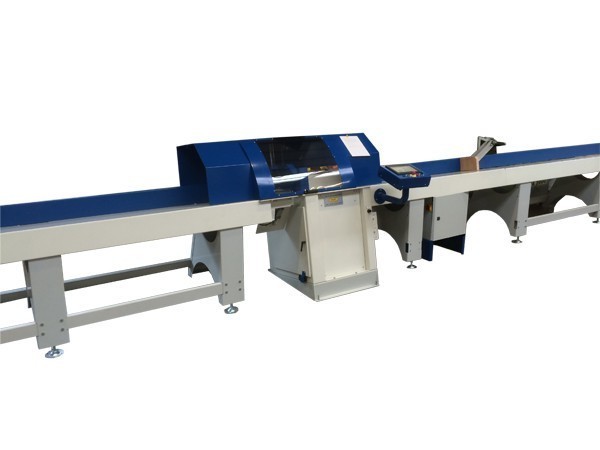

Hm Hm D Automatic Push Fed Crosscut Saw For Straight Cutting 2

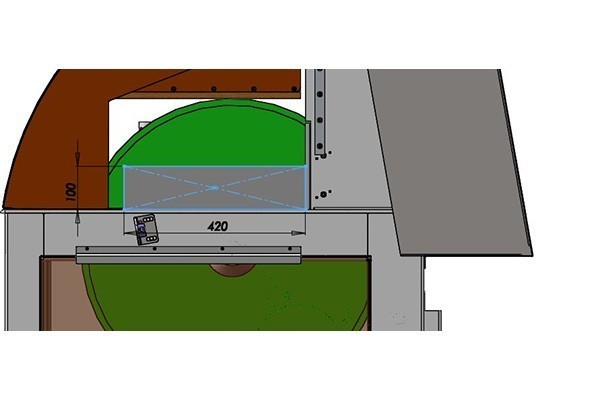

Hm Hm D Automatic Push Fed Crosscut Saw For Straight Cutting 3

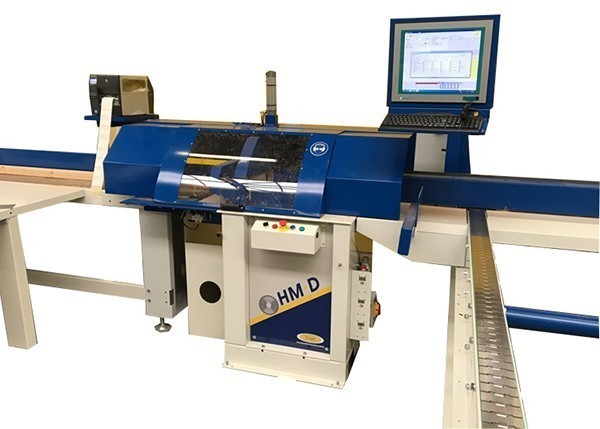

Hm Hm D Automatic Push Fed Crosscut Saw For Straight Cutting 4
Specification

6m infeed capacity roller table equipped with:

  • 50mm diameter rollers 500mm wide to 200mm centres
  • Rack and pinion drive system
  • 2 off 100mm dust extraction outlets
  • AC drive with heavy duty gear box
  • Infeed table inclinded 10° to keep boards against the fence
  • 100kg load bearing capacity per roller
  • 60m/min maximum feed speed
  • Lifting pusher on return stroke
  • Upstroke crosscut saw
  • 7.5hp braked motor
  • Pneumatic saw movement
  • 550mm blade
  • Fully guarded and interlocked
  • Outfeed Table
