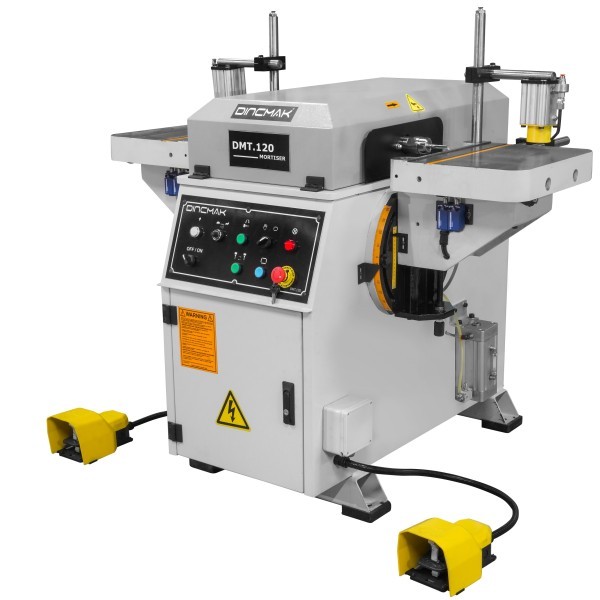

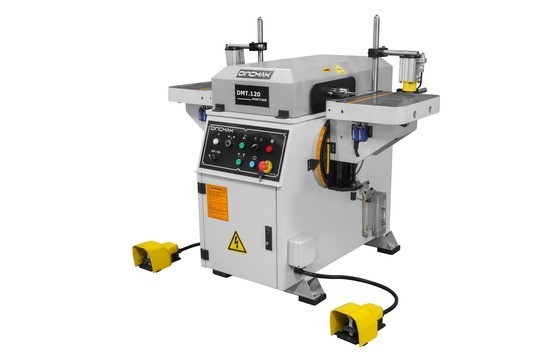

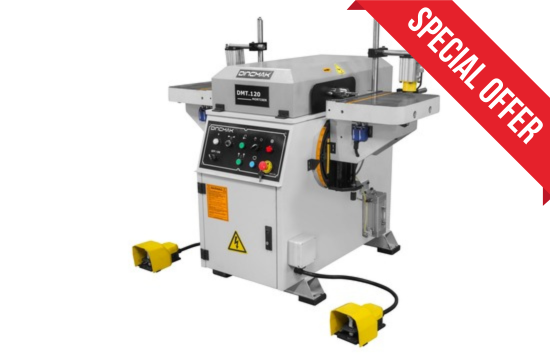

A simple to operate, compact, twin table oscillating slot mortiser for furniture parts. The slot mortise length is easily set via the mechanical digital readout, whilst the carriage oscillation speed is variable. The depth of slot is set by a limit switch on each table. Either table can be angled to give an inclined slot mortise.
Twin Table Operation
Quality Mortise Slot For Furniture
Compact In Size
A simple to operate, compact, twin table oscillating slot mortiser for furniture parts. The slot mortise length is easily set via the mechanical digital readout, whilst the carriage oscillation speed is variable. The depth of slot is set by a limit switch on each table. Either table can be angled to give an inclined slot mortise.
Maximum mortise width 120mm
Maximum depth 50mm
Variable oscillation speed
Tilting table to 20 degrees
Oscillation stroke set via mechanical digital readout
Max workpiece height 100mm
Vertical table adjustment 75mm
Spindle motor 3kw
Oscillation motor 0.75kw
Cutters - not included
Overall dimensions 1300x1200x1200mm
Wight 700KG
