X-Floc

The X-Floc automated insulation system is an industrial blow-in insulation system designed for high-volume prefabrication of building elements such as walls, roofs and ceilings. It fills cavities with loose insulation materials such as wood fibre, cellulose or glass wool, quickly and uniformly with minimal dust. This automated insulation filling system is ideal for offsite timber frame / prefab production.

The X-Floc system works with loose insulation materials including wood fibre, cellulose, and glass wool (or other loose mineral wool), giving you the flexibility to choose an insulation type that suits your project.

The X-Floc automated insulation filling system is designed to be "low-dust". The blow-in process uses an encapsulated injection plate and enclosed material handling, which helps maintain a cleaner, healthier working environmnet compared to manual insulation application.

Compared with cutting and fitting insulation boards manually, the X-Floc system offers faster filling of cavities (high throughput), uniform filling with consistent density and minimal voids, reduced waste (no off-cuts), less handling time and labour, and increased safety due to it's "low-dust" design.

Yes. X-Floc automated insulation blowing machinery is modular and can be integrated into an existing workflow. Both the Premium and Essential line can be mounted via crane, gantry, or a multifunction bridge, making it compatible with automated or semi-automated timber frame production lines. All machine settings and the insulation blowing process can be controlled via a touch screen interface on the injection panel.

The X-Floc EM400 series is a range of industrial insulation filling machinery. The machines shred, loosen, and pneumatically convey loose-fill insulation materials (wood fibre, cellulose, glass wool, rock wool etc) into cavities, attics, or prefabricated panels. They can operate as standalone machines or as part of a larger factory filling insulation system.

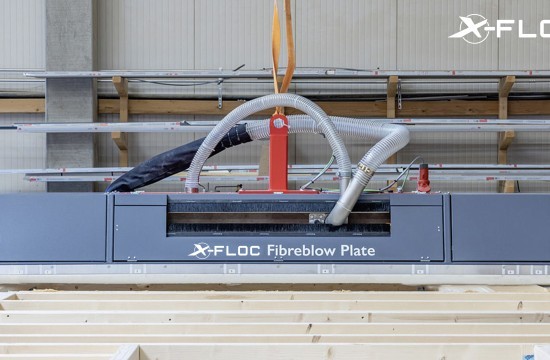

The shredder/agitator system ensures insulation fibres are loosened evenly. Adjustable flow rate and air pressure allow precise control of material density. Insulation filling using a hose or the modular injection plate ensures even distribution of insulation accross cavities or panels.

The EM300 series is a family of compact, high-performance insulation blowing machines designed for professional industrial use. They shred and loosen compressed insulation materials (such as cellulose, wood fibre, mineral wool, granules etc) then pneumatically blow them into cavities or panels. Suitable for offsite construction and small-medium prefabrication projects.

The EM300 series is well-suited to small to medium prefabrication projects or modular construction, where a full large-scale insulation blowing line may not be needed. Situations requiring flexibility, mobility, and a compact footprint without sacrificing performance are ideal for the EM300 series.
