The Fibreblow® Essential Line by X-Floc is an efficient and modular insulation system designed for the prefabrication of timber frame elements. Using blow-in insulation technology, it eliminates the need for cutting and fitting insulation boards, significantly reducing waste, time, and labour. Ideal for carpenters, timber construction firms, and prefab house manufacturers, it ensures a clean, low-dust, and cost-effective insulation process using eco-friendly materials like cellulose and wood fibre.

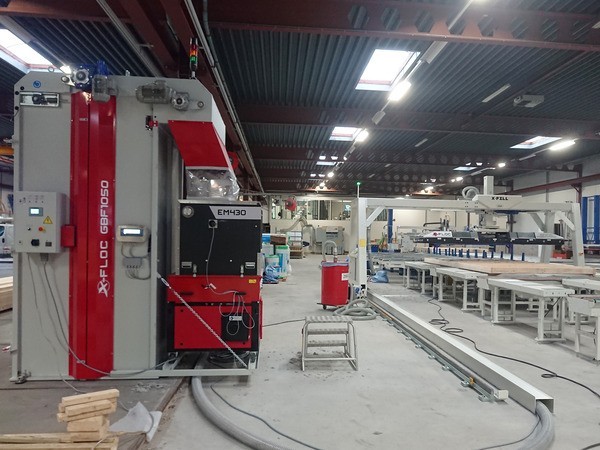

This system typically includes three core components: a big bale conditioner, a high-capacity blow-in machine, and a modular injection panel. Together, they deliver consistent filling performance and are compatible with a range of insulation materials. The system can be operated manually or integrated into automated production lines, allowing flexibility for small workshops or industrial-scale factories.
Key benefits include uniform cavity filling, automated density control, minimal dust emission, and reduced thermal bridging. It’s a robust, scalable solution that supports sustainable building practices and enhances insulation quality for prefabricated roof, wall, and ceiling panels.
Ideal for timber frame production and prefab house manufacturers, the X-Floc Fibreblow Essential Line ensures a clean, low-dust, and cost-effective automatic insulation filling process using eco-friendly materials like cellulose and wood fibre.
The Fibreblow® Essential Line by X-Floc is an efficient and modular insulation system designed for the prefabrication of timber frame elements. Using blow-in insulation technology, it eliminates the need for cutting and fitting insulation boards, significantly reducing waste, time, and labour. Ideal for carpenters, timber construction firms, and prefab house manufacturers, it ensures a clean, low-dust, and cost-effective insulation process using eco-friendly materials like cellulose and wood fibre.
This system typically includes three core components: a big bale conditioner, a high-capacity blow-in machine, and a modular injection panel. Together, they deliver consistent filling performance and are compatible with a range of insulation materials. The system can be operated manually or integrated into automated production lines, allowing flexibility for small workshops or industrial-scale factories.
Key benefits include uniform cavity filling, automated density control, minimal dust emission, and reduced thermal bridging. It’s a robust, scalable solution that supports sustainable building practices and enhances insulation quality for prefabricated roof, wall, and ceiling panels.
Ideal for timber frame production and prefab house manufacturers, the X-Floc Fibreblow Essential Line ensures a clean, low-dust, and cost-effective automatic insulation filling process using eco-friendly materials like cellulose and wood fibre.

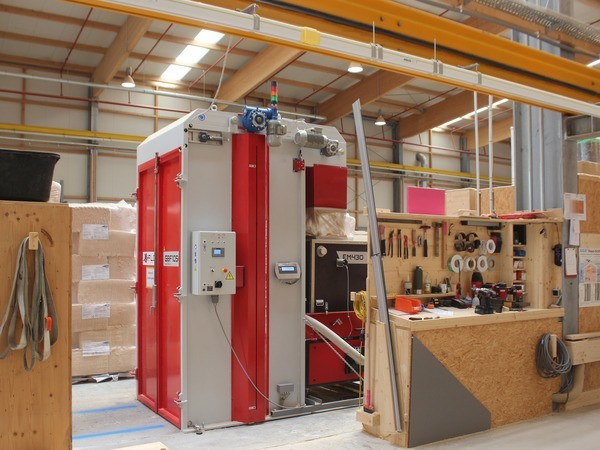

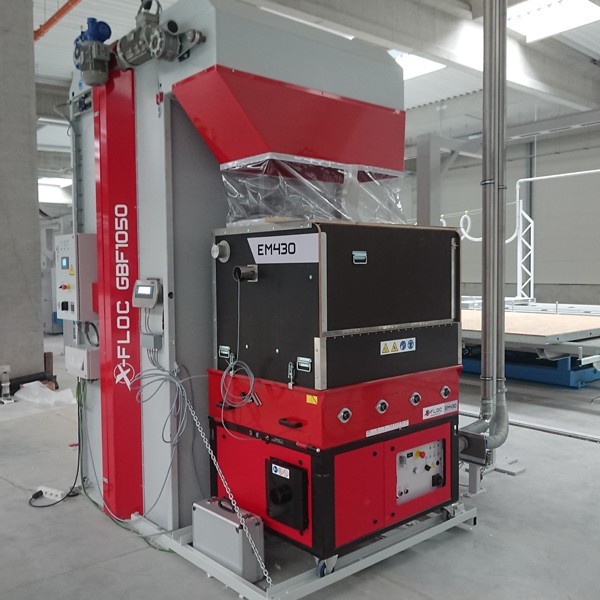

Big Bale Conditioner (Feeder Lift GBF1050)
Dimensions (LxWxH): 1452 x 1688 x 3191 mm
Bale capacity: Approx. 1200 x 1200 x 2300 mm
Weight: Approx. 1220 kg
Electrical connection: 400V / 50Hz / 16A
Power: 2.5 kW
Output: Up to 1500 kg/h
Materials: Cellulose, wood fibre, glass wool, rock wool

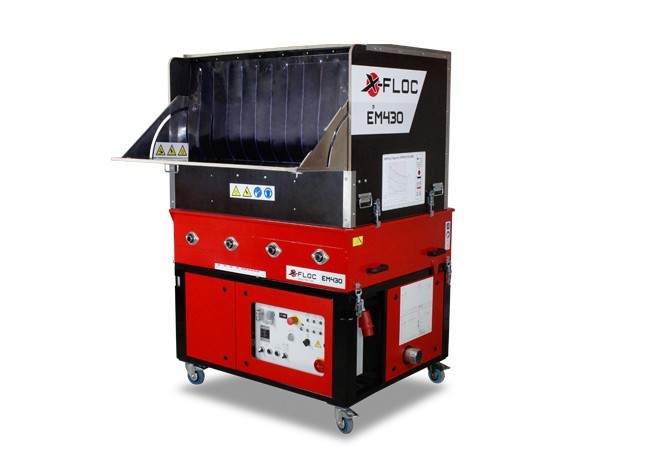

Insulation Blow-in Machine (EM430-WB)
Dimensions (LxWxH): 1300 x 1020 x 1800 mm
Weight: Approx. 427 kg
Electrical connection: 400V / 50Hz / 3x16A
Air turbine: 7.5 kW
Material flow rate: Up to 1600 kg/h
Hose length: Up to 150 m
Control: Integrated with injection panel

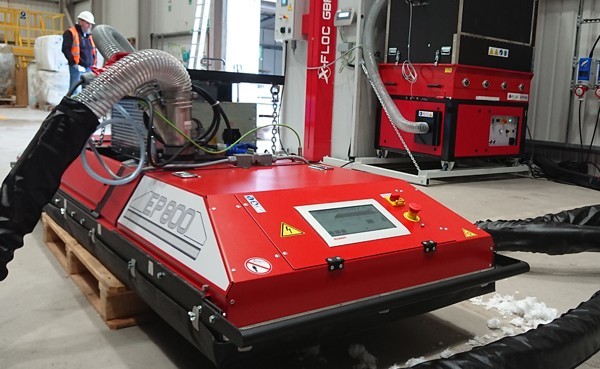

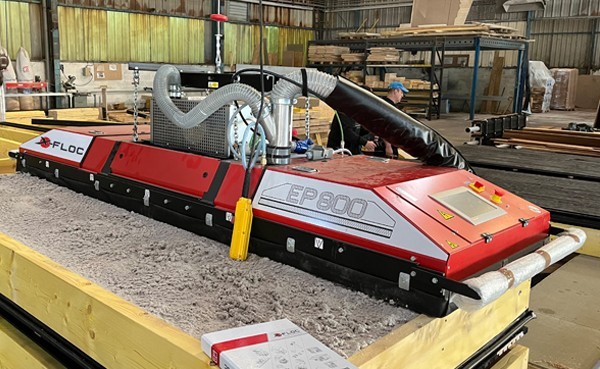

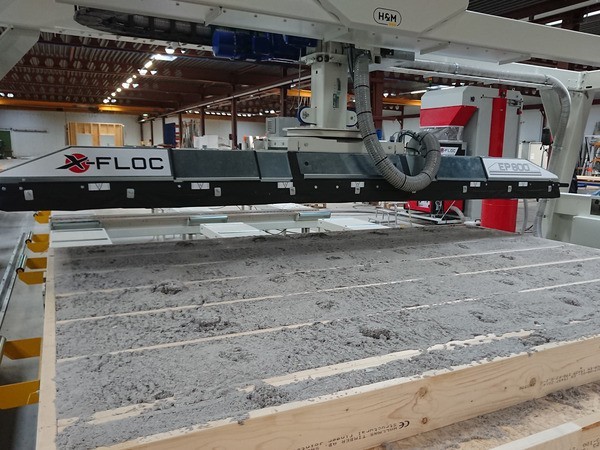

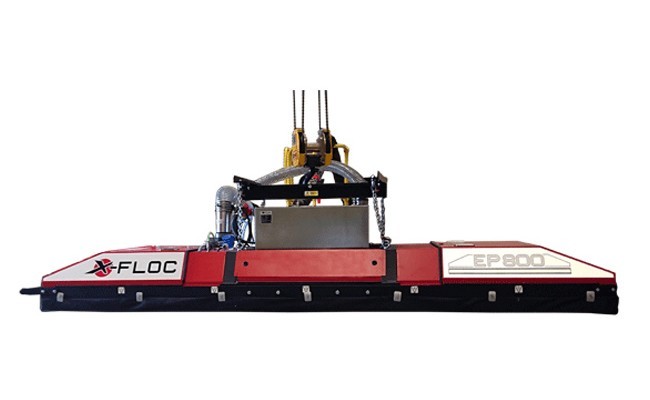

Injection Panel (Fibreblow® Essential Plate EP800)
Dimensions (LxWxH): 3000–4000 x 900 x 490 mm (5–7 nozzles)
Weight: Approx. 300 kg
Electrical connection: 230V / 50Hz / 10A
Material flow rate: Up to 1000 kg/h
Control: Touchscreen interface
Mounting: Compatible with gantry or multifunction bridges
