What is the X-Floc EM400 series?

The X-Floc EM400 series is a range of industrial insulation filling machinery. The machines shred, loosen, and pneumatically convey loose-fill insulation materials (wood fibre, cellulose, glass wool, rock wool etc) into cavities, attics, or prefabricated panels. They can operate as standalone machines or as part of a larger factory filling insulation system.

What insulation materials can be used with the X-Floc system?

The X-Floc system works with loose insulation materials including wood fibre, cellulose, and glass wool (or other loose mineral wool), giving you the flexibility to choose an insulation type that suits your project.

How do X-Floc insulation machines ensure consistent insulation quality?

The shredder/agitator system ensures insulation fibres are loosened evenly. Adjustable flow rate and air pressure allow precise control of material density. Insulation filling using a hose or the modular injection plate ensures even distribution of insulation accross cavities or panels.

What are the benefits of the X-Floc system compared to manual traditional insulation application?

Compared with cutting and fitting insulation boards manually, the X-Floc system offers faster filling of cavities (high throughput), uniform filling with consistent density and minimal voids, reduced waste (no off-cuts), less handling time and labour, and increased safety due to it's "low-dust" design.

INNOVATIVE WOODWORKING MACHINERY & EXPERTISE

+44 (0)151 548 9000

[email protected]

Request a Quote

X-Floc - EM400 Series

High-performance insulation blowing machinery compatible with all insulation materials.

About this Product

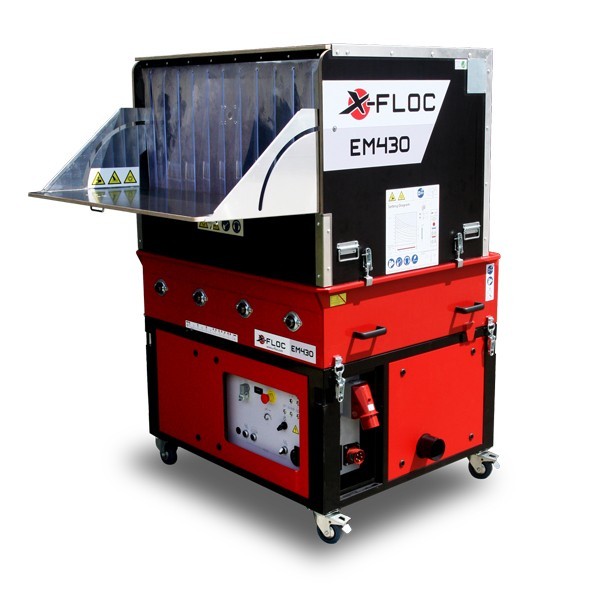

The EM400 series by X-Floc offers high-performance insulation blow-in machines designed for professional use. These versatile machines are compatible with a wide range of insulation materials, including cellulose, wood fiber, rock wool, and more.

They support various blowing methods such as open/attic blowing, dry injection, damp spraying, cavity wall insulation, and fire protection. With user-friendly operation and precise control via cable or optional radio remote, the EM400 series ensures efficient and dust-free insulation processing.

High Capacity and Efficiency

Equipped with a 1000-liter hopper, the EM400 series can handle up to 5-6 bags of insulation material, delivering high throughput rates of up to 2450kg/h for cellulose. The machines feature robust steel airlocks, adjustable feed gates, and optional speed control for precise material flow. Designed for both stationary and mobile use, they are easy to transport and maintain, making them ideal for construction sites and factory filling systems.

Customization and Accessories

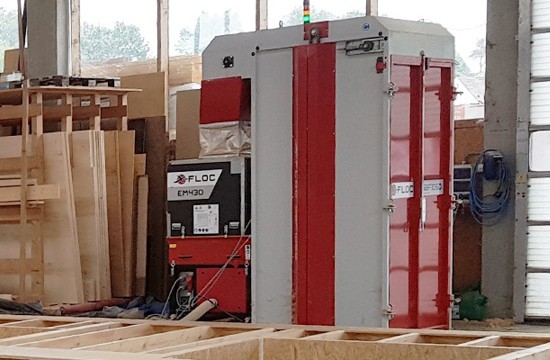

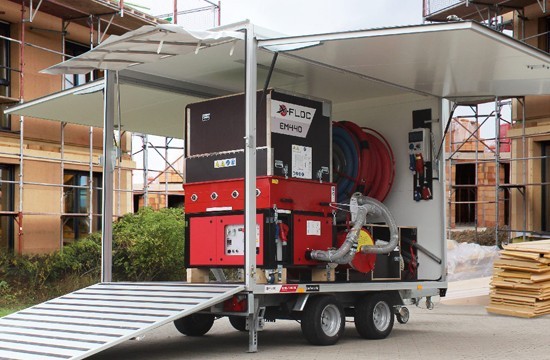

The EM400 series offers a range of accessories, including amplifiers, suction drums, and blow-off units, to enhance performance and adapt to specific project needs. Modular system designs allow integration into factory filling setups, while mobile solutions like blow-in trailers ensure flexibility for on-site applications. Additional options for industrial safety, hoses, connectors, and measurement devices further expand the machines' capabilities.

Reliable and Professional Solutions

X-Floc’s EM400 series combines advanced technology, durability, and ease of use to deliver reliable insulation solutions for professionals. Whether for large-scale projects or specialized applications, these machines are built to meet the highest standards of efficiency and performance. Contact X-Floc for more information or to customize your setup.

Compatible with all blowing insulation materials
Dust-free filling with dust extraction

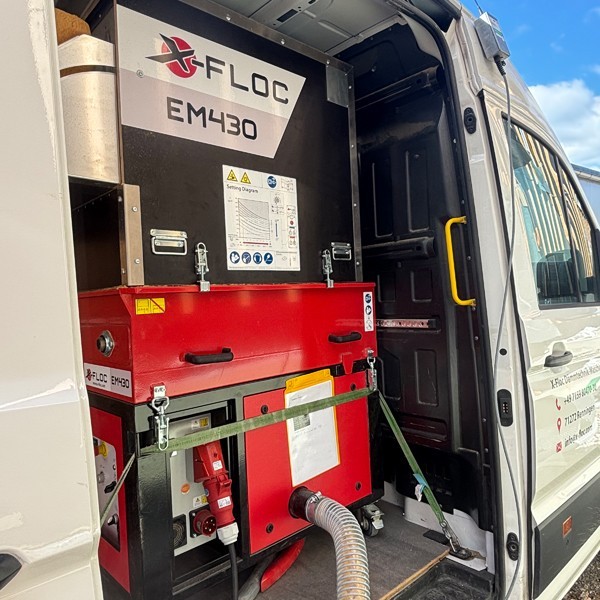

Mobile or stationary use

Enquire now

Finance Available

X-Floc EM400 Series Video Placeholder-68fb5c41204d5

About this Product

High Capacity and Efficiency

Customization and Accessories

Reliable and Professional Solutions

Specification

Options

Specification

EM400-400V/7,5kW: Multi-level turbine

EM430-400V/11kW: Multi-level turbine

EM430-400V/14kW: 16A or 32A power connection selectable

EM440-3×230V/10,5kW: 5 high-powered radial compressors

EM440-400V-230V/10,5kW: Multi-level turbine and 2 high-powered radial compressors

EM440-2x400V/11,4kW: High-performance blow-in machine: optimised turbine output, loosening unit and filling attachment

All important machine settings can be selected directly from the blowing location using either the cable or radio remote control.

Options

Available Machine Accessories for the EM400 Series:

Radio Remote Control FFB2000-Pro: Bidirectional radio technology with high transmission security (Art. no. 5243).
Blow-Off Unit (AE): Maintains installation densities and protects components (Art. no. 4038).
Speed Control Airlock Rotor (DS): Remote-controlled adjustment of material feed rate (Art. no. 5060).
Box Wall Attachment: Increases supply volume from approx. 0.72m³ to 0.914m³ (Art. no. 8522).
Attachment Foot: For fastening the machine to vehicle floors or solid ground (Art. no. 5301).
Intake Connection NW90 / 90°: Right-angled connection for fresh air supply (Art. no. 5613).
Direct Reducer NW90 > NW75: Reduces outlet diameter from NW90 (3½") to NW75 (3") (Art. no. 8936).
Accessory Set NW75/63: Recommended for processing cellulose, wood fiber, and glass wool (Art. no. 5246).
Mains Adapter Phase Monitoring: Checks 3-phase power supplies for interruption protection (Art. no. 4553).
Integration Package for WBS: Higher-level control and safety equipment for factory filling systems (Art. no. 8615).
Mains Voltage Indicator: Detects weak or fluctuating power supplies (Art. no. 4604).
Mains Adapter Distributor 400V-CEE > 3x230V Schuko: Splash-proof housing for construction sites (Art. no. 9481).
Intake Connection NW75 / 90°: Right-angled connection for NW75 hoses (Art. no. 5614).
Increased Power of Additional Fans: Modifies air output to 11.2kW (Art. no. 8126).
Mains Adapter 400V, 25m Ring: CEE plug/coupling, 5-pole, 16A (Art. no. 2492).
Mains Adapter Socket Strip 400V/32A > 2x400V/16A: Includes circuit breakers and hinged cover (Art. no. 7273).
Mains Adapter 400V/32A, 10m Ring: CEE plug/coupling, 5-pole, 32A (Art. no. 6588).
Power Distributor 400V/16A PRCD-S Type B: All-current sensitive (Art. no. 9271).
Reducer PE 90 > 76: For insertion into suction bonnet with ø90mm (Art. no. 5145).

These accessories enhance the functionality, efficiency, and adaptability of the EM400 series machines for various insulation applications.

Enquire about this machine

X-Floc EM400 Insulation Machinery FAQs

: The X-Floc EM400 series is a range of industrial insulation filling machinery. The machines shred, loosen, and pneumatically convey loose-fill insulation materials (wood fibre, cellulose, glass wool, rock wool etc) into cavities, attics, or prefabricated panels. They can operate as standalone machines or as part of a larger factory filling insulation system.
: The X-Floc system works with loose insulation materials including wood fibre, cellulose, and glass wool (or other loose mineral wool), giving you the flexibility to choose an insulation type that suits your project.
: The shredder/agitator system ensures insulation fibres are loosened evenly. Adjustable flow rate and air pressure allow precise control of material density. Insulation filling using a hose or the modular injection plate ensures even distribution of insulation accross cavities or panels.
: Compared with cutting and fitting insulation boards manually, the X-Floc system offers faster filling of cavities (high throughput), uniform filling with consistent density and minimal voids, reduced waste (no off-cuts), less handling time and labour, and increased safety due to it's "low-dust" design.
