The Fibreblow® system is a unique solution for consistent and settlement-proof blow-in results in roof, wall and ceiling elements. The system is powerful, user-friendly and allows seamless scaling from partially to fully automated processes, adapted to your specific production. It has also been proven in practice that it can be easily integrated into existing production lines, including connection to software-controlled bridge suspensions or robotic systems.

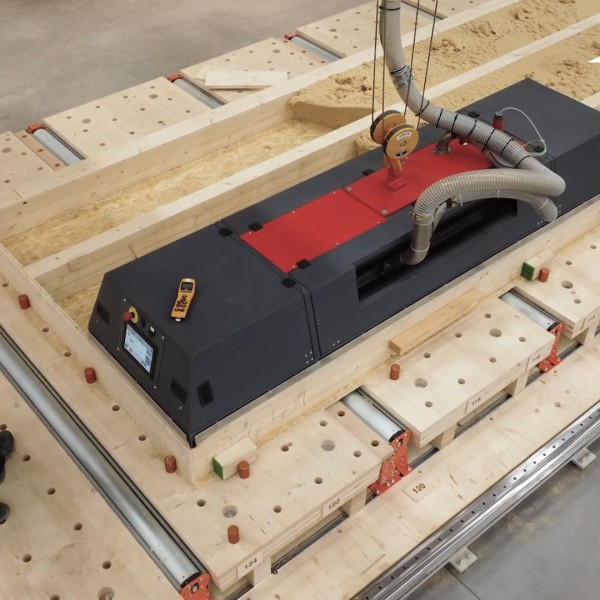

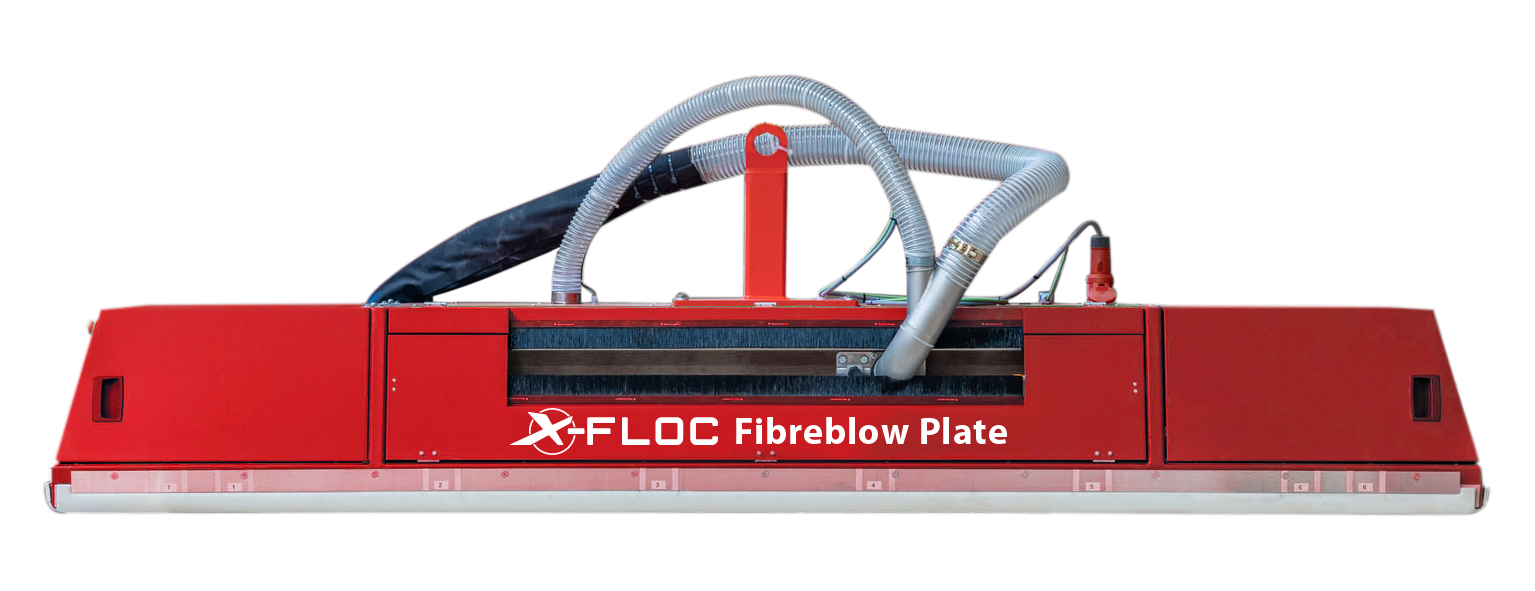

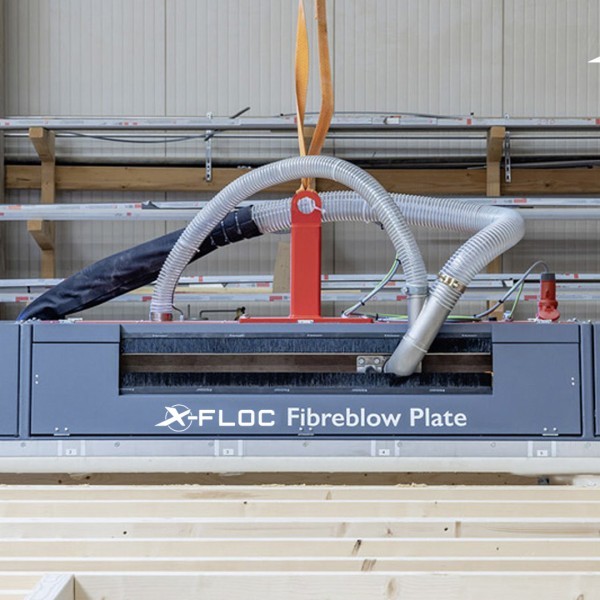

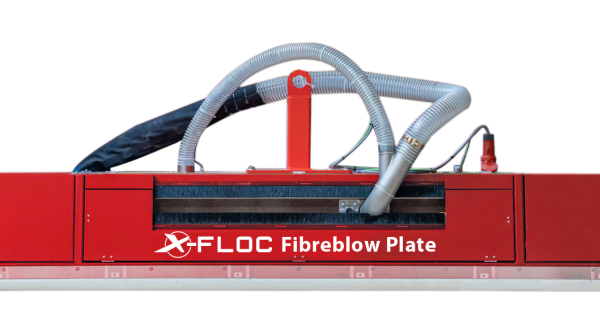

The Fibreblow Plate is a specially designed blowing plate for processing loose wood fibre insulation. In combination with the Fibreblow Feeder Lift and the Fibreblow Feeder Drop, it blows the fibres into the cavities of roofs, walls and ceilings at high speed, evenly and without settling. The distances between the nozzles and the upper and lower edges can be adjusted to ensure optimal corner filling and to increase the blow-in reliability. Thanks to the patent-pending nozzle design, unwanted mounding is prevented.
Using loose insulation materials such as wood fibre, cellulose or glass fibre. With a length of just over 3 metres and 6 outlets, the P6 is easy to handle.
The patented technology ensures process reliability, consistently high execution quality and real time savings in production – a clear competitive advantage for your company
The Fibreblow® system is a unique solution for consistent and settlement-proof blow-in results in roof, wall and ceiling elements. The system is powerful, user-friendly and allows seamless scaling from partially to fully automated processes, adapted to your specific production. It has also been proven in practice that it can be easily integrated into existing production lines, including connection to software-controlled bridge suspensions or robotic systems.
The Fibreblow Plate is a specially designed blowing plate for processing loose wood fibre insulation. In combination with the Fibreblow Feeder Lift and the Fibreblow Feeder Drop, it blows the fibres into the cavities of roofs, walls and ceilings at high speed, evenly and without settling. The distances between the nozzles and the upper and lower edges can be adjusted to ensure optimal corner filling and to increase the blow-in reliability. Thanks to the patent-pending nozzle design, unwanted mounding is prevented.
Using loose insulation materials such as wood fibre, cellulose or glass fibre. With a length of just over 3 metres and 6 outlets, the P6 is easy to handle.
The patented technology ensures process reliability, consistently high execution quality and real time savings in production – a clear competitive advantage for your company
Product Features
Patented ‘Röckli’ material outlet to minimise pile formation (less than 1 cm with the right Röckli selection for
each compartment thickness)
Röckli Medi (30 mm length) – recommended for compartments from 140 mm to 200 mm are included
Extremely low-dust blowing process thanks to built-in dust collection and collection system
Time-saving handling thanks to laser-assisted, fast positioning, e.g. via hall or gantry crane
Automatic insulation material configuration thanks to software algorithm developed by X-Floc engineers (optional)
Manual software configuration for two insulation materials included, additional options available
Remote maintenance module enables secure access to the Fibreblow Premium Line control system by our service team (optional)
Automated filling process via manually selectable connections
Logging of material consumption in combination with Feeder Drop or Feeder Lift, output via USB or network
(‘data logging’)
Efficient insulation with up to 1,200 kg/h at 200 mm insulation thickness (wood fibre)
Additional air blower (booster) for better compaction, e.g. when processing wood fibre (optional)
Varia nozzles (external) for optimised edge and corner filling (optional)
Technical Data
Number of outlet nozzles: 6
Weight approx. 480 kg
Dimensions: 3,300 × 900 × 460 mm
Connected load: 400 V / 16 A / 50 Hz
Stop: Hall or gantry crane (partially or fully automatic bridge possible)
