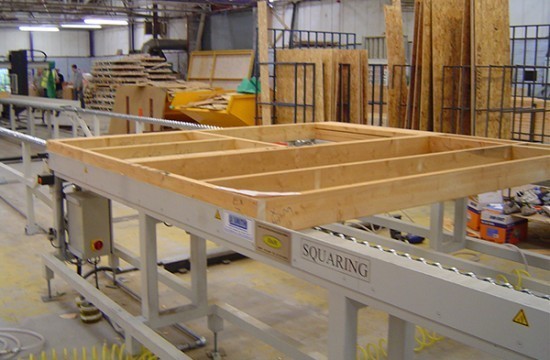

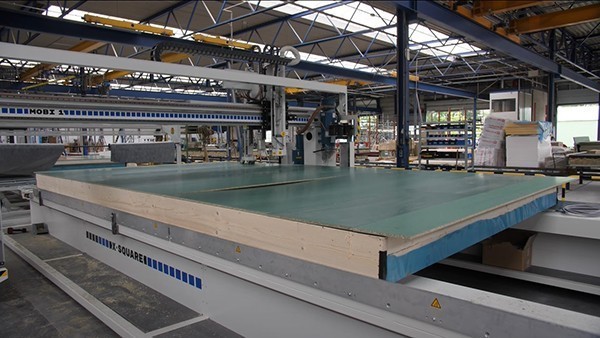

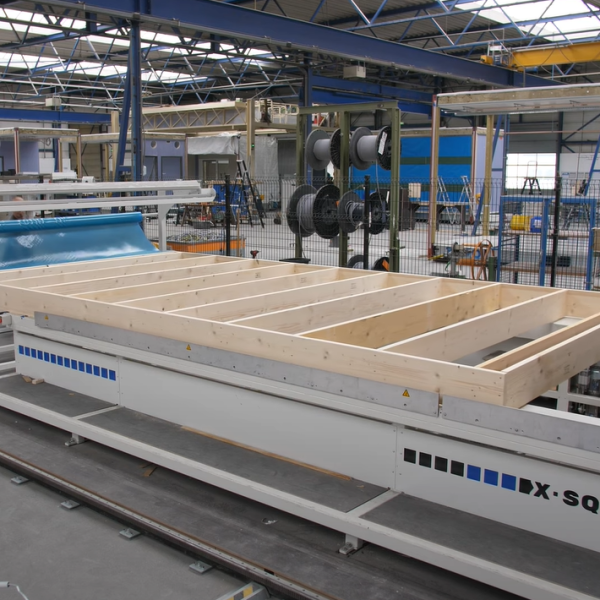

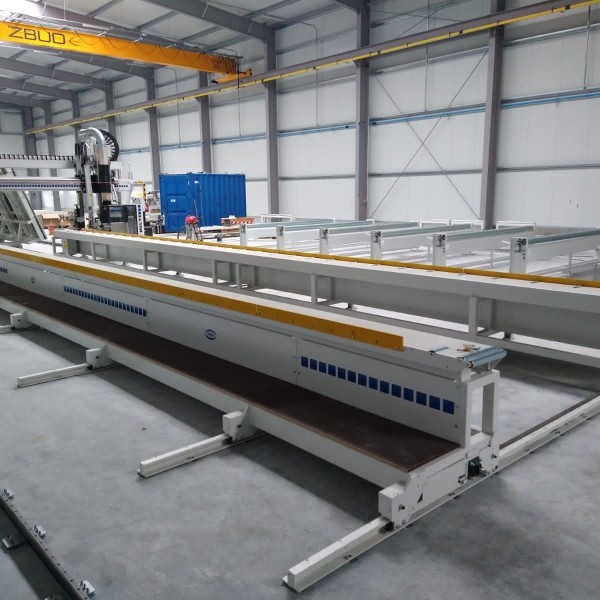

The H&M X-Square for timber frame construction is a PLC-controlled squaring table, ideal for manual boarding or use with a rail-mounted nailing bridge.
It features easy loading pop-up transfer rollers and a 3-point clamping mechanism for automatic alignment in the X and Y axis. Finished panels are easily released and transferred to the next station with a simple push-button action.
The H&M X-Square for timber frame construction is a PLC-controlled squaring table, ideal for manual boarding or use with a rail-mounted nailing bridge.
It features easy loading pop-up transfer rollers and a 3-point clamping mechanism for automatic alignment in the X and Y axis. Finished panels are easily released and transferred to the next station with a simple push-button action.
Heavy duty tables with one fixed and one moveable side for the squaring of a pre-manufactured panel for the application of OSB or Plywood
Range of opening is configured when installed with a 1500m movement
Minimum opening 1500mm
Maximum opening 3000mm (optionally 3500mm)
Working height 825mm
Width adjustment motorised with locking system
85mm high bar for panel clamping along the full length of the station.
Automatic panel squaring and clamping including 3 way clamping
Swing gates for easy access through the line
