MBA Timber Frame Butterfly Station

Turnover ("Butterfly") Device for the turning over of panels to enable the fitting of insulation, or the nailing on both faces of a panel

  • Safe way to turn elements
  • Up to 3 tonnes capacity
  • Heavy duty construction

About this Product

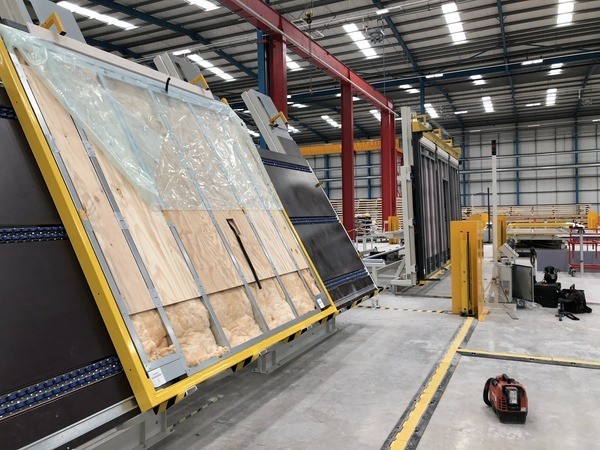

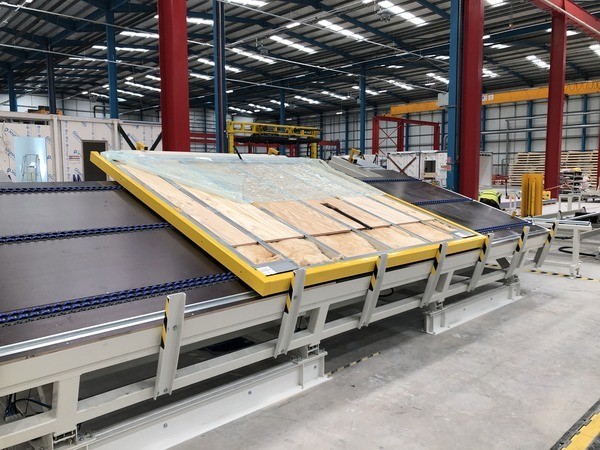

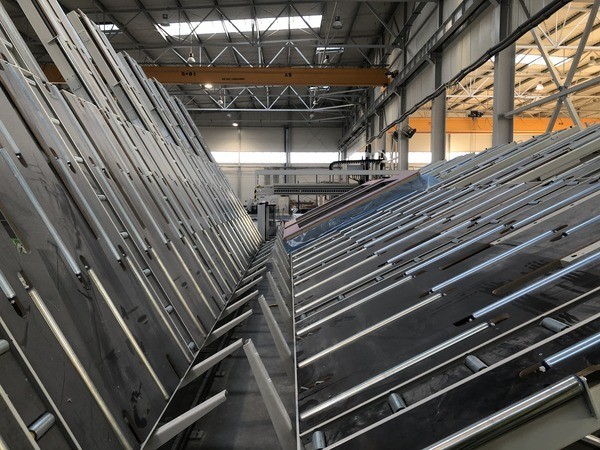

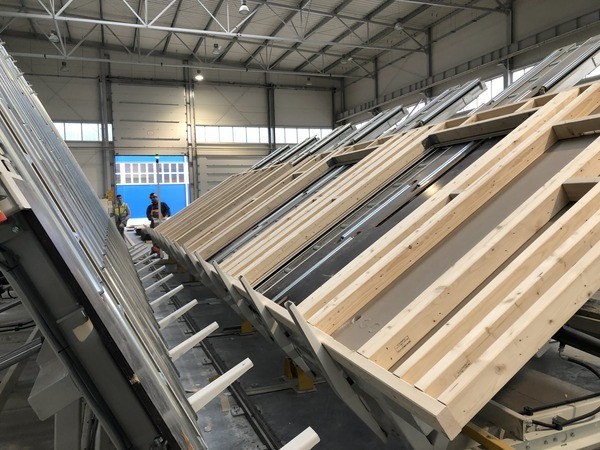

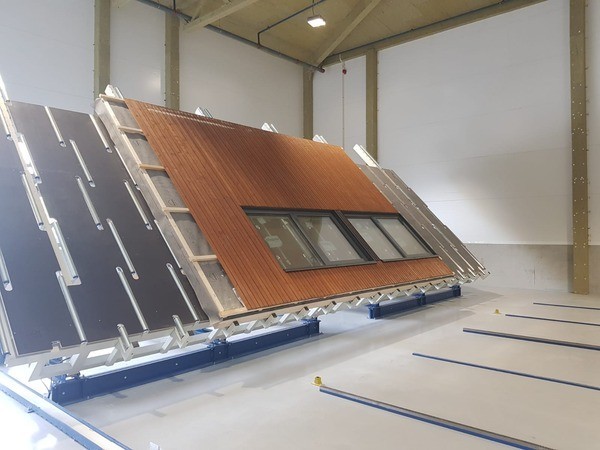

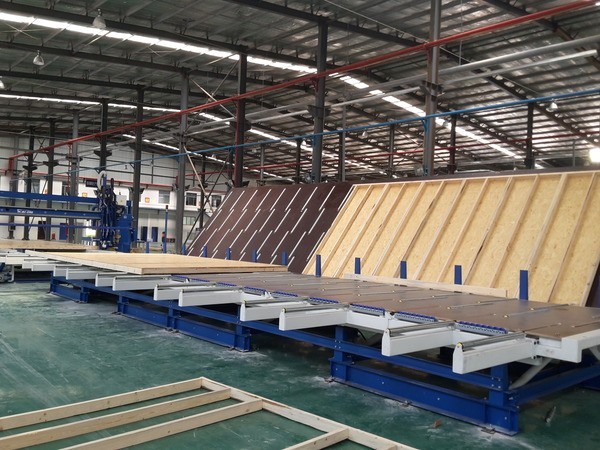

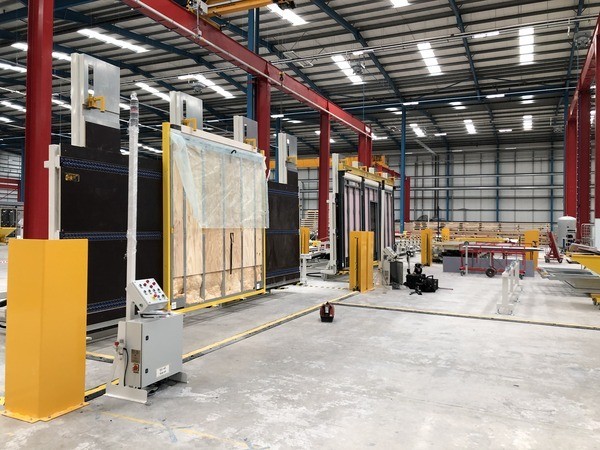

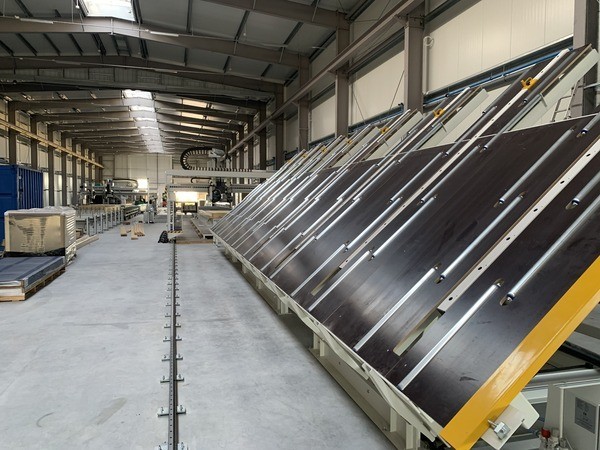

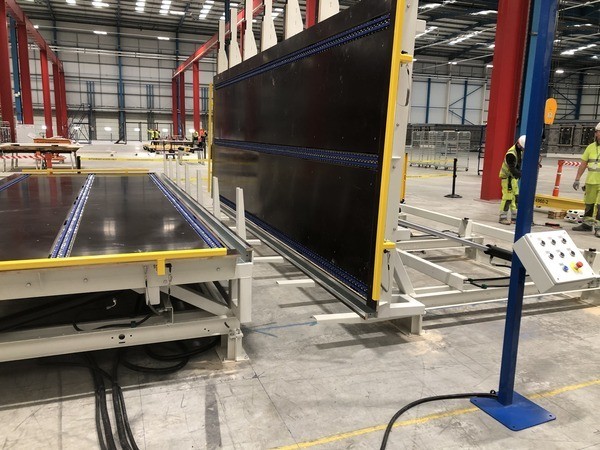

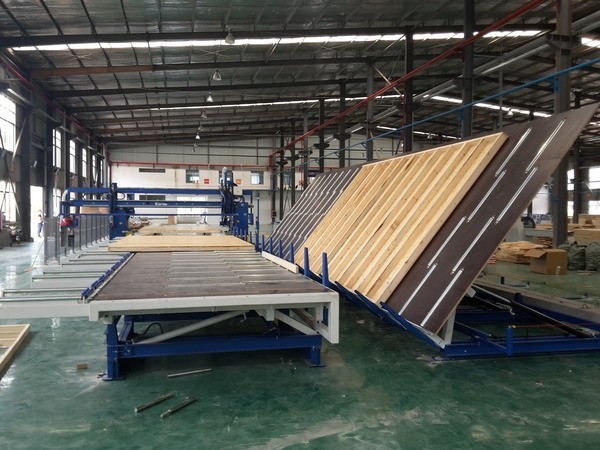

A pair of hydraulically operated tables (also known as a butterfly table) that enable the panels to be brought to the vertical position, passed to the 2nd table, and safely lowered back down on the opposite side for fitting of insulation and closing of the panel.

Butterfly Station
Butterfly Station
Specification

A pair of hydraulically operated tables (also known as a butterfly table) that enable the panels to be brought to the vertical position, passed to the 2nd table, and safely lowered back down on the opposite side for fitting of insulation and closing of the panel. There is an option to have pneumatically operated pop up idle roller tracks fitted in the table, for easy loading and unloading the panels.
The hydraulic lifting of the tables is controlled by push button operation, with fail safe locking cylinders 3,5kw motor 6m standard length (optional 12m) 4m maximum panel height

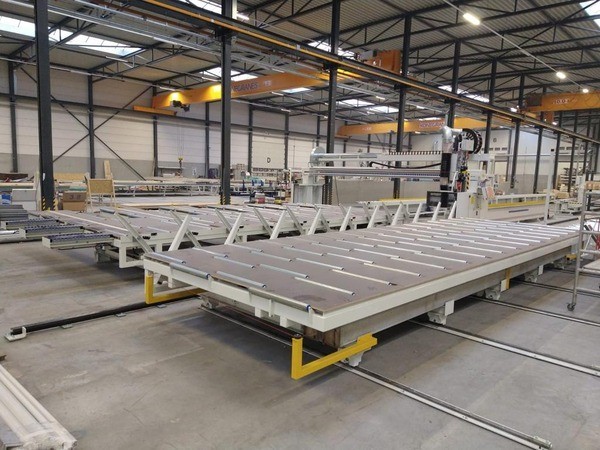

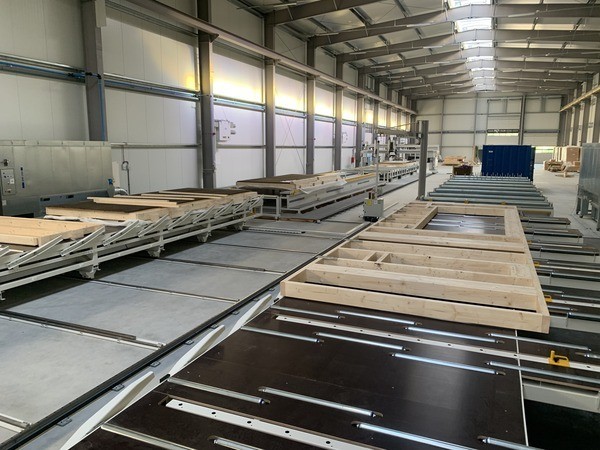

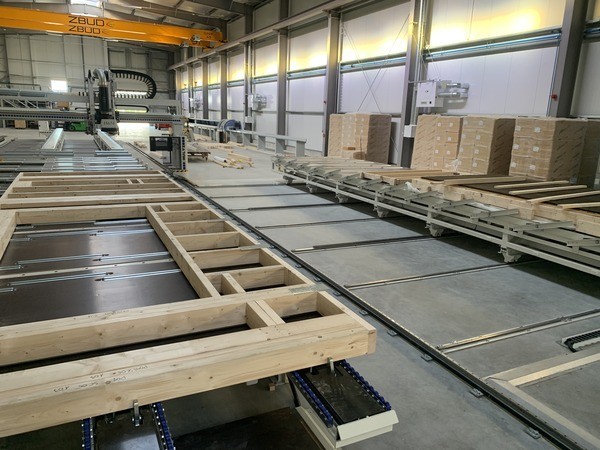

A range of options to allow the tables to also be used as assembly bench for walls and floors and to integrate into a line

Full safety system

Options
