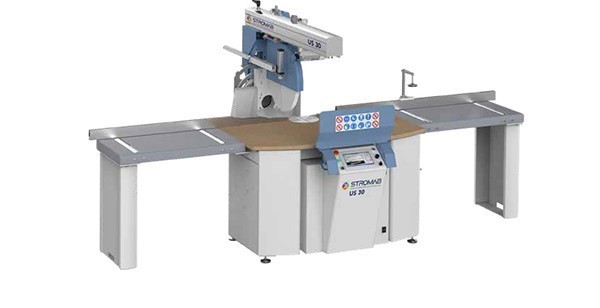

A heavy duty universal radial arm crosscut saw, for straight, vertical and horizontal angle cutting controlled by the touch screen
A heavy duty universal radial arm crosscut saw, with straight, angle and tilting capability, the automatic angle and inclination of the saw blade is electronicaly controlled by the touch screen programmable control unit,the machine is fitted with a 7.5hp motor and a 550mm saw blade making it ideal for a wide range of applications where accurate cutting of angles is required such as roof truss, timber frame components and caskets, the machine can be automated even more with the optional electronic positioning (MX). The machine is fitted with a Beckoff 10.1"control panel with 1024 x 600 touch screen and optimisation. Files can be imported in BTL format
7.5 hp motor,550mm TCT saw blade510mm cutting length at 90210mm cutting depth at 90Horizontal axis +30 + 150Vertical axis ( beveling ) +30 + 120Automatic movement of horizontal and vertical axis via control keypad1000mm roller table left and right of saw2 x vertical pneumatic clampsTwo hand start control3 x 120mm dust outlet99 cutting lists with 15 lines per list
Roller table (90mm dia ) price per mtManual side stop 60mmManual side stop 250mmPneumatic side stop 60mmLaserTCT saw blade 550mmLabel printer direct heat on thermal paper ( 70 x 50 )Label printer heat transfer on normal paper ( 70 x 50 )Label printer heat transfer on Polypropylene ( 70 x 50 )Length over 10,000 ( per mt )Out feed monitor 18"
