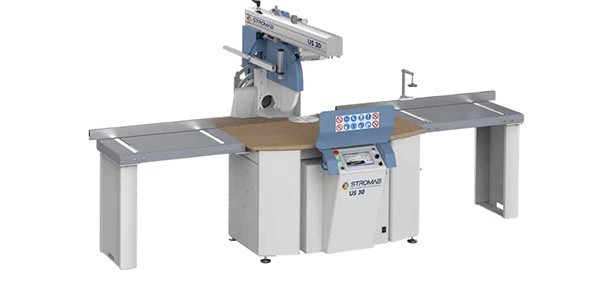

Stromab US30 / US30 MX Universal Radial Crosscut Saw

About this Product

A heavy duty universal radial arm crosscut saw, with straight, angle and tilting capability, the automatic angle and inclination of the saw blade is electronicaly controlled by the touch screen programmable control unit,the machine is fitted with a 7.5hp motor and a 550mm saw blade making it ideal for a wide range of applications where accurate cutting of angles is required such as roof truss, timber frame components and caskets, the machine can be automated even more with the optional electronic positioning (MX). The machine is fitted with a Beckoff 10.1"control panel with 1024 x 600 touch screen and optimisation. Files can be imported in BTL format

A heavy duty universal radial arm crosscut saw, for straight, vertical and horizontal angle cutting controlled by the touch screen

Automatic angle setting

Pneumatic clamping

Large cutting capacity


7.5 hp motor,
550mm TCT saw blade
510mm cutting length at 90
210mm cutting depth at 90
Horizontal axis +30 + 150
Vertical axis ( beveling ) +30 + 120
Automatic movement of horizontal and vertical axis via control keypad
1000mm roller table left and right of saw
2 x vertical pneumatic clamps
Two hand start control
3 x 120mm dust outlet
99 cutting lists with 15 lines per list
