INNOVATIVE WOODWORKING MACHINERY & EXPERTISE

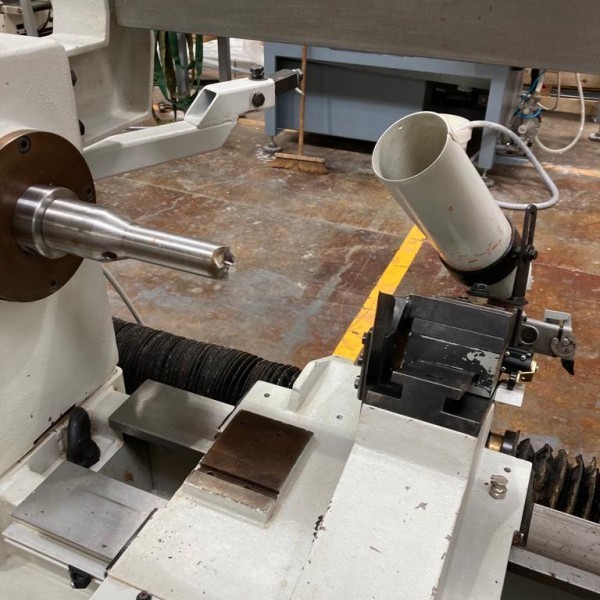

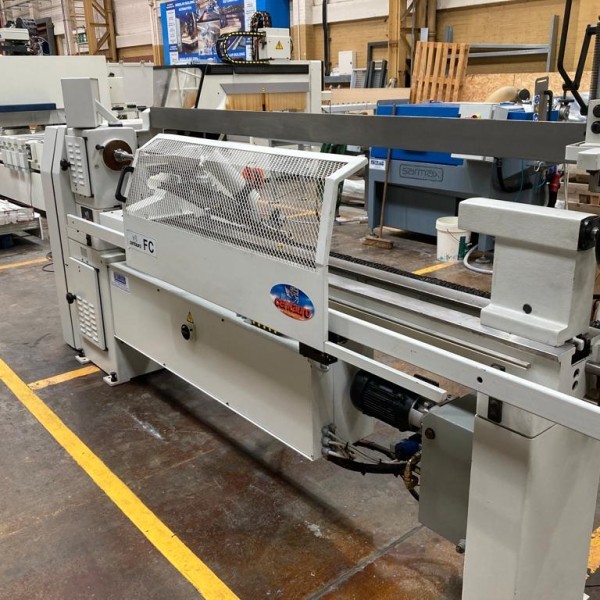

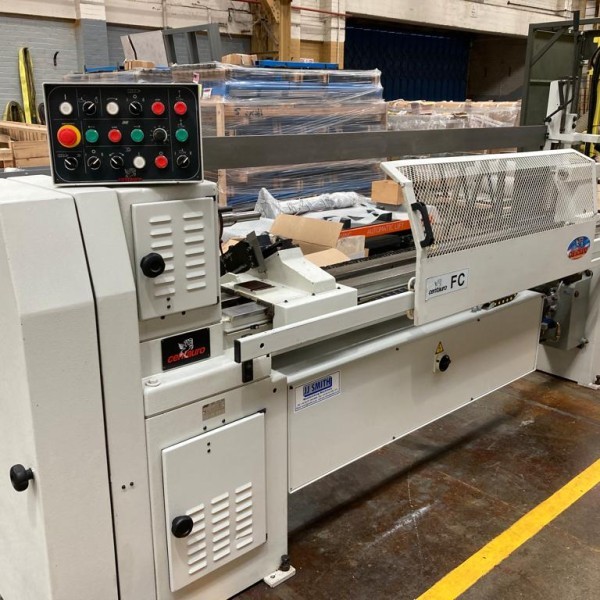

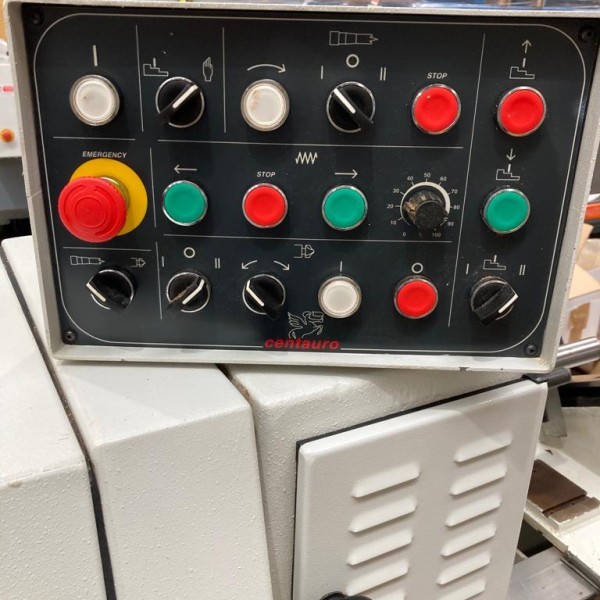

Semi automatic hydraulic copy lathe incorporating a single sensative hydraulic copy unit gouge that follows a sample or template to produce a turned component. The tool carriage speed can be regulated through an electronic control
Specification & standard equipment.
- Hydraulic copy unit fitted with 1 x cutting gouge.
- Max centre distance 1600mm or 2000mm.
- Centre height on bed 250mm.
- Max dia. in manual turning 400mm dia. / 280mm sq.
- Max. copying dia. 220mm dia. / 156mm sq.
- Hydraulic copier stroke - 150mm.
- Max. capacity of steady - 90mm dia (65mm sq.).
- Tailstock fitting - 3 morse taper.
- Variable speed to tool saddle 0 - 2000 mm/min.
- Tool saddle return speed - 2000 mm/min.
- Spindle RPM 650/900/1100/1300/1500/1800/2200/3000.
- Two speed spindle motor 3 - 4 hp.
- Hydraulic pack motor 1hp.
Complete with various steadies
Year - 2005 CE
Condition - Very good for year
