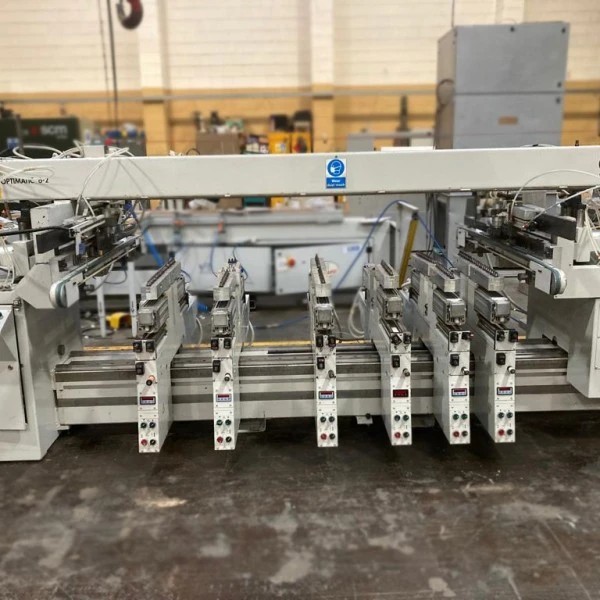

Through feed vertical and horizontal panel borer
Max panel width 2300mm
Max panel thickness 50mm
Equipped with
2 x Horizontal boring units [ left and right ] with 21 spindles at 32mm centres

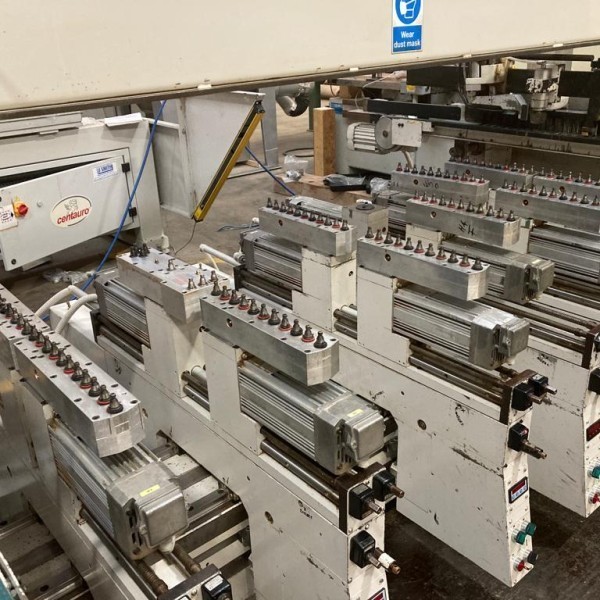

6 x Bottom vertical boring units with split heads [ all 32mm centre distance unless stated ]
Head 1 - 2 x 11 spindles
Head 2 - 1 x 11 spindles and 1 x 7 spindle special centres aggregate
Head 3 - 2 x 11 spindles
Head 4 - 1 x 11 spindles 1 x empty
Head 5 - 2 x 11 spindles
Head 6 - 2 x 11 spindles
All spindles are conical to accept quick release chucks
Motor powers per drilling heads x 1.3kw
Conveyor motors 2 x 0.37kw
Includes box of spare drilling aggregates-
Overall size approx 3.9m x 2m x 1.5m
Weight 2900kg
Year - 1999
