Travel range - X 4357mm, Y 1651mm, Z 155mm
Working Field - X 3700mm, Y 1250mm, Z 85mm
Vector speeds - X/Y - Z Axis - 96 / 25m/min

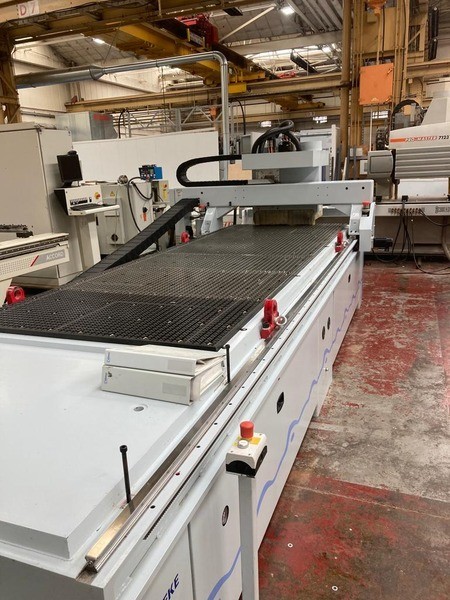

3700mm x 1250mm Matrix table

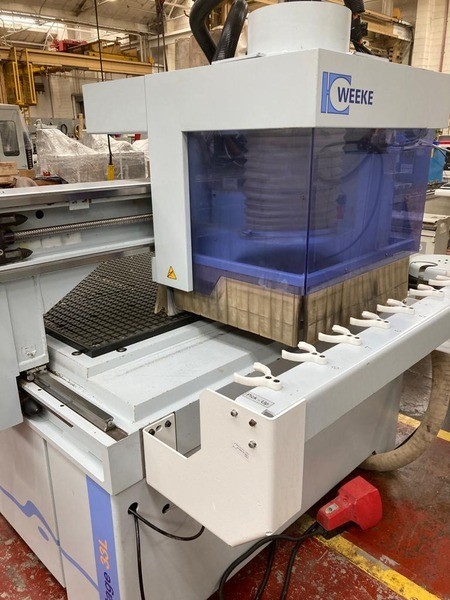

12hp [ 9kw ] HSK Routing Spindle
2 CNC controlled z axes
7 x Vertical drilling spindles
Fixed 8 x position " pick up " toolchanger on right hand side of table.
6 Position rotary toolchanger on x axis gantry.
245/300m3 / hr vacuum pump

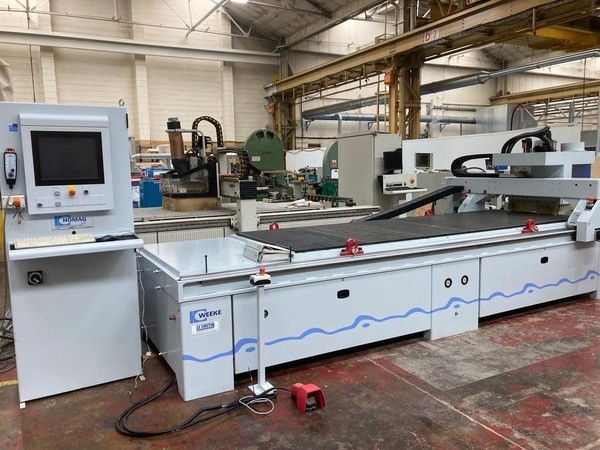

Power control PC85T with
17" TFT Monitor
CD-RW device
USB
Ethernet connection
Hand terminal
USB
Perimeter fencing to left and right only [ no rear ]
Overall floor area 6.6m x 3.9m
Year - 2009 CE
