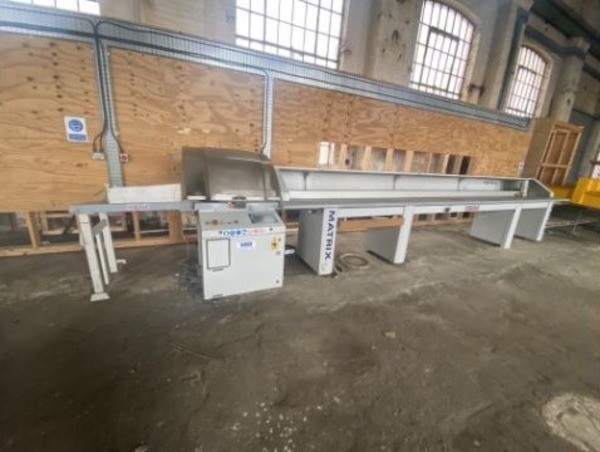

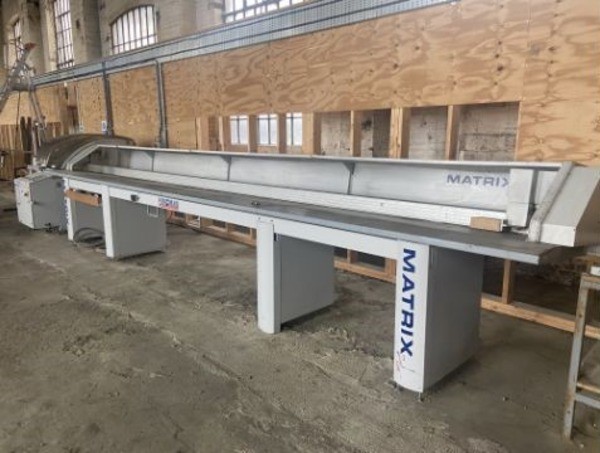

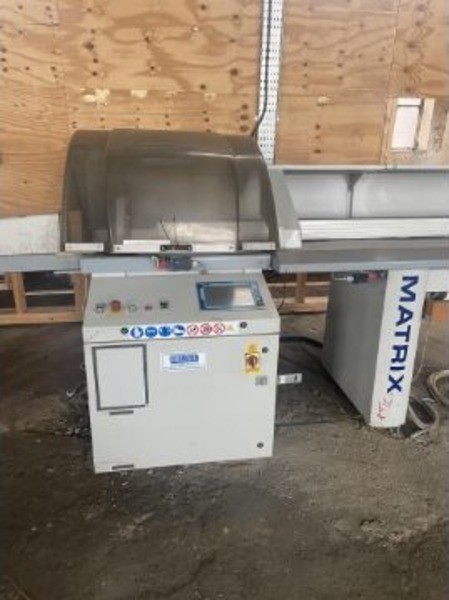

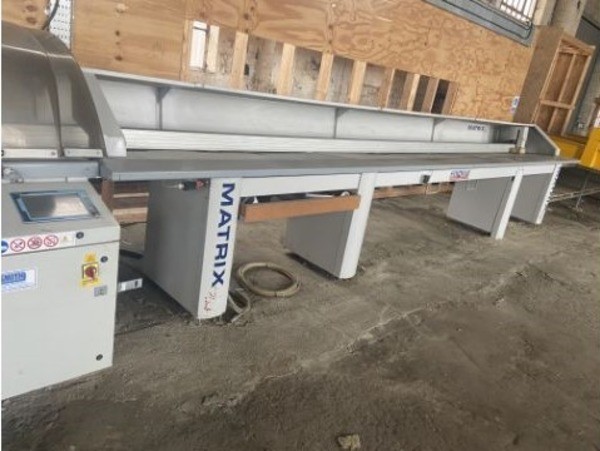

A robustly built upstroke crosscutting machines designed for programmable and repetitive cutting from lengths of standard or random length long timber. The saw unit has a pneumatic upstroke action and is fitted with a Matrix type pusher unit for automatic feeding
Specification Saw Unit TR500
Self braking motor 10hp
Saw blade diameter 500mm
Max cutting width (refer to chart)360mm
Max cutting height (refer to chart)135mm
Dust hoods dia 100mm
Matrix 3 control unit (optimizing)
Touch screen with graphic display
6000mm infeed capacity
Rack and pinion feed system
Pneumatic lifting of pusher on return stroke
10hp saw motor
500mm blade daimeter
Electrically interlocked Perspex hinged guard
1000mm outfeed table
Year - 2013 CE
