Delta CH02 Master 1515 Pallet Production Line - 2017

Briefly comprising:

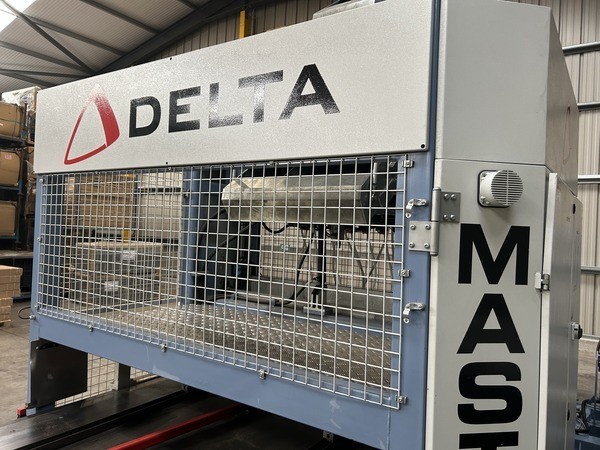

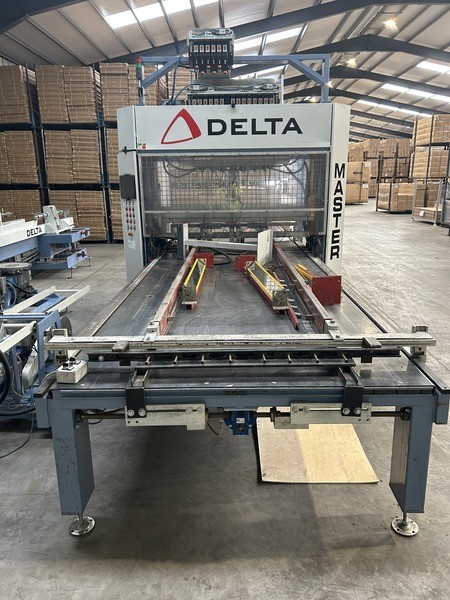

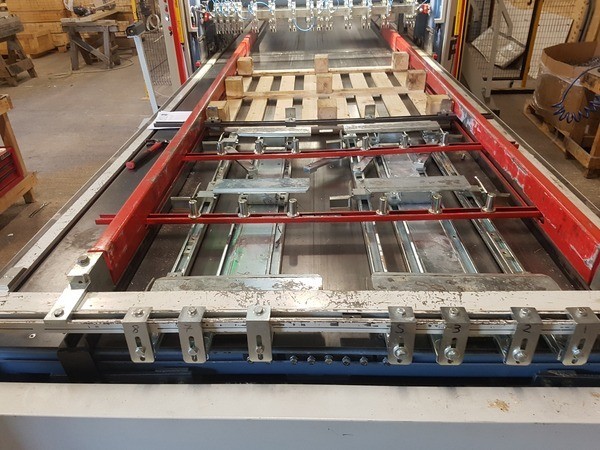

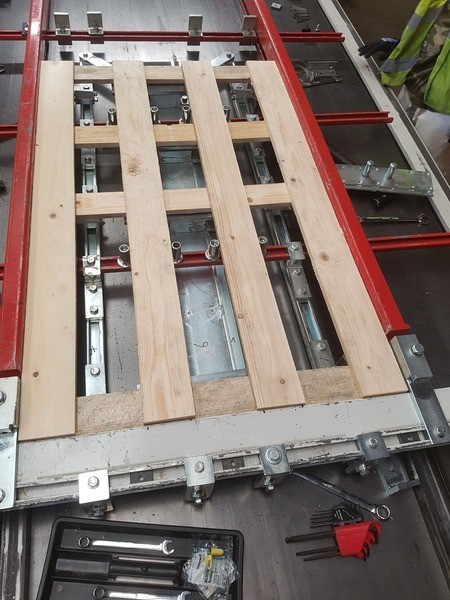

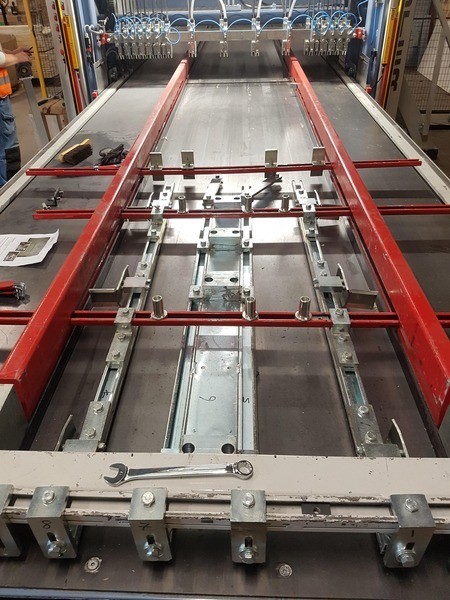

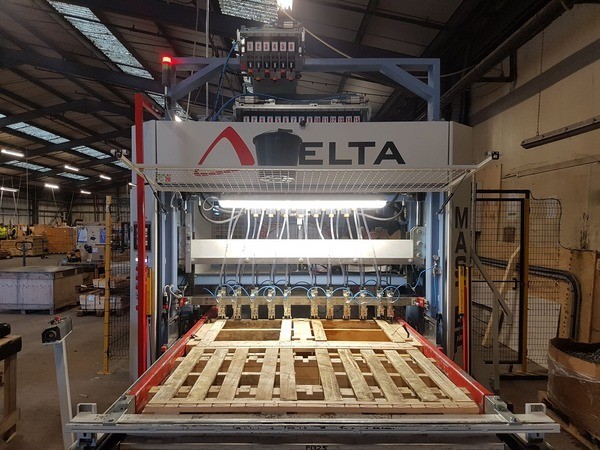

Delta CHA02 MASTER 1515 Hydraulic nailing machine

- Automatic sequences PLC controlled

- Touch screen controller for programming nailing cycles and combinations, working times etc

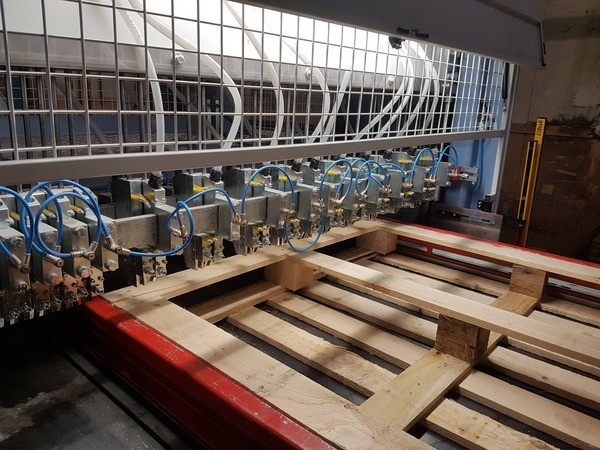

- 32 x Type PZ01 Galvanised steel nailing grippers

- 2 x 15 Outlet hydrauilc nail dispensers

- 1 x 5 Outlet hydrauilc nail dispenser

- Nail sizes min 30mm, max 90mm

CA01 Alternate cart for automatic offloading of the product

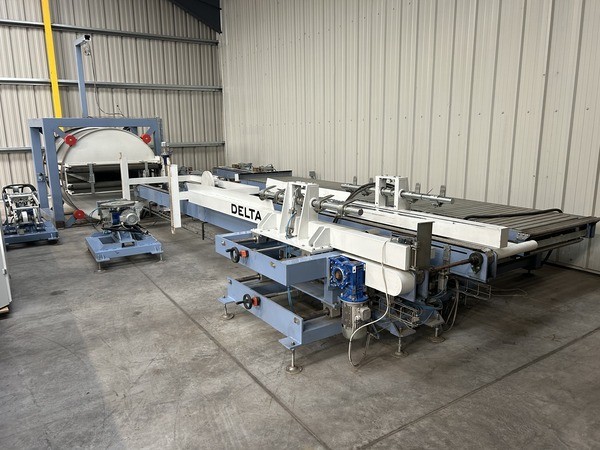

GPT 180 degree Rotaing belt tilter

- 180 degree rotation

- Max pallet width 1400mm

BLM Working table 2 meters long for handling and adding transversal planks

1 x TS Stamping Unit

- With 4 adjustable heat stampers

- Pallet size minimum 800mm x 800mm, maximum1400mm x 1400mm

GP 90 degree pallet rotator for standard size pallets 800 x 1400mm

RBF All purpose electric forked tilter for pallet size as above

IMP Hydraulic stacker

- Min pallet size 700mm, max 1400mm

- Max pallet size without jointing length 2200mm

- MAG 6 meter long motorised warehouse conveyor

Year - 2017

Condtion - No longer in use and dismantled and stored in warehouse

Full original specification available.

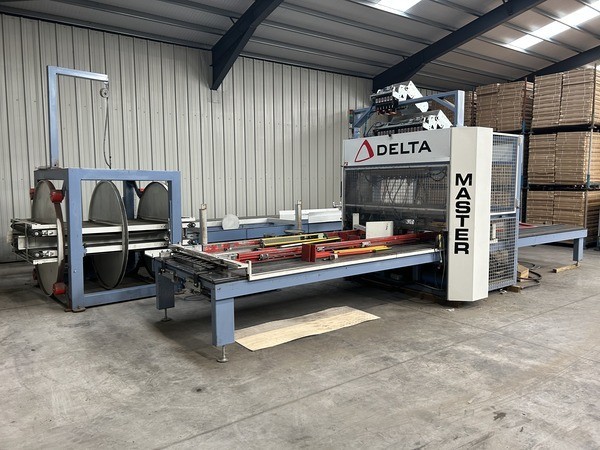

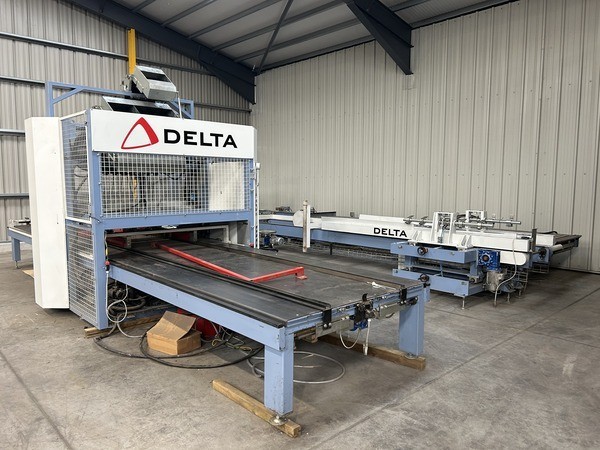

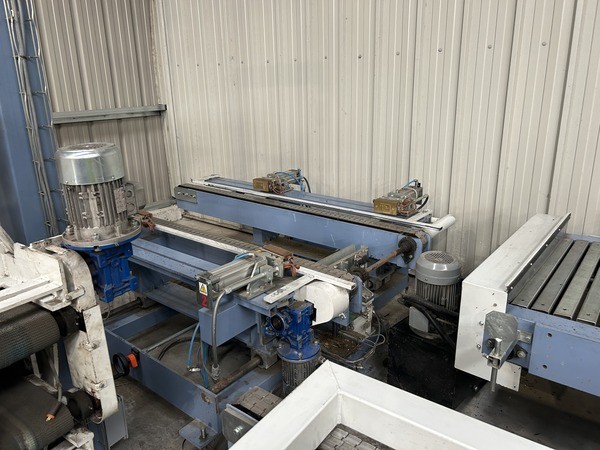

Photo's show line before removal. Short video clips also available
