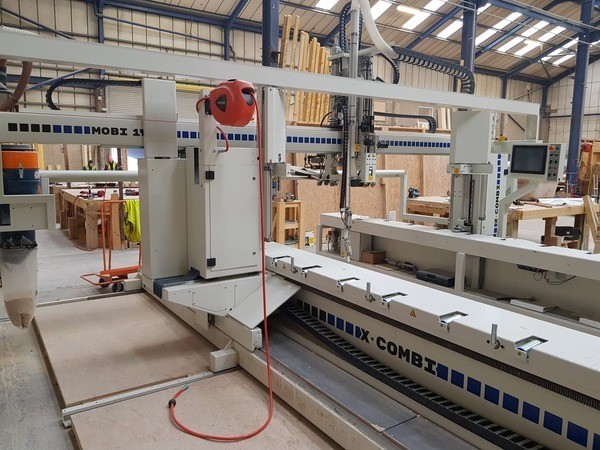

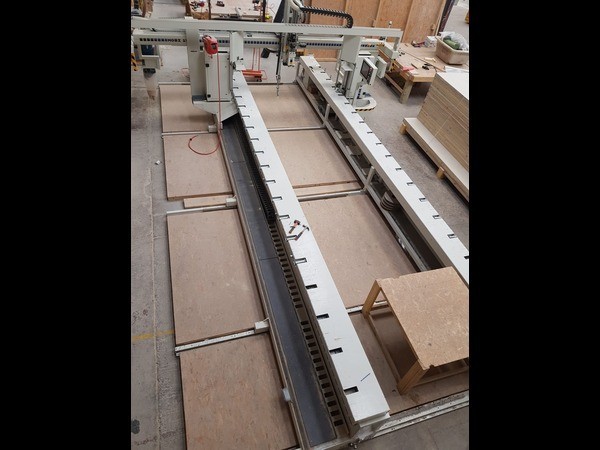

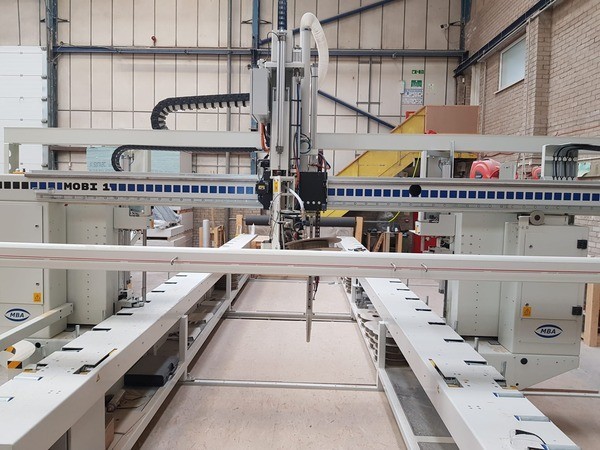

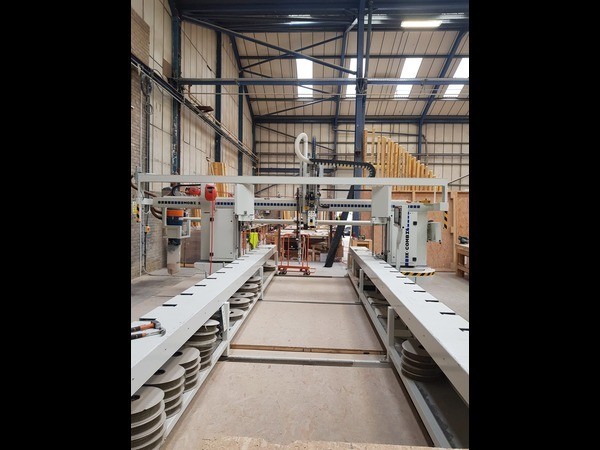

MBA X Combi Combined Timber Frame Assembly Station for Walls - 2022 CE

About this Product

A complete working station for the production of timber frame construction walls including the following functions:

-Framing of the wall

-Nailing or stapling of cladding

-Routing of openings and overhangs

Specification

- Full PC control with 2 off 19” touch screens Interactive display of framing for panel assembly Automatic download from drawing software-

- Heavy duty tables with one fixed side and one moving side

- 90 degree squaring corner blocks with pneumatic retraction to enable panel to move to next position when finished

- 1500mm minimum panel height

- Maximum panel height 3.5m

- Maximum panel length 6m

- 825mm working height 350mm maximum frame height

- Motorised table opening with automatic brake locking

- Independent retractable clamping system, for the complete access of nail guns along top and bottom rails, to enable square and accurate clamping of the panel

- Framing tools driven to the required position via a servo drive motor, with heights controlled by software

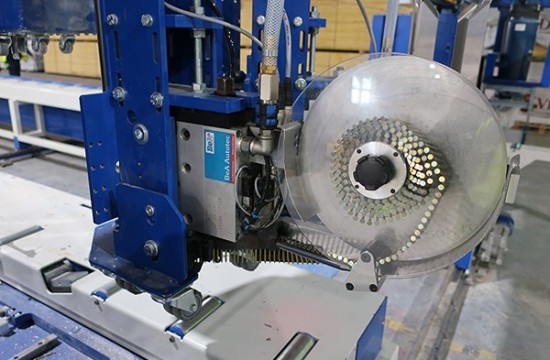

- Bridge mounted with one tool holder for nailing / stapling tool.

- Full integration with major software packages including Sema, Dietrich;s, HsbSoft, CADWORKS, Gang Nail, DDS, Mitek.& Inventor

- Pneumatic lifting rollers to assist the manually transporting of the finished panel to next position.

- Laser for aligning studs

- Intermediate Stud Support to support shorter length studs while framing

- Pneumatic Reel for storage of hand nailing tool

- Servo controlled router, with mobile dust collector – 4kw

Year - 2022.

Condition - Almost as new [ hardly used since installation December 2022 ]

This item is IN STOCK. Contact our team for more details.
