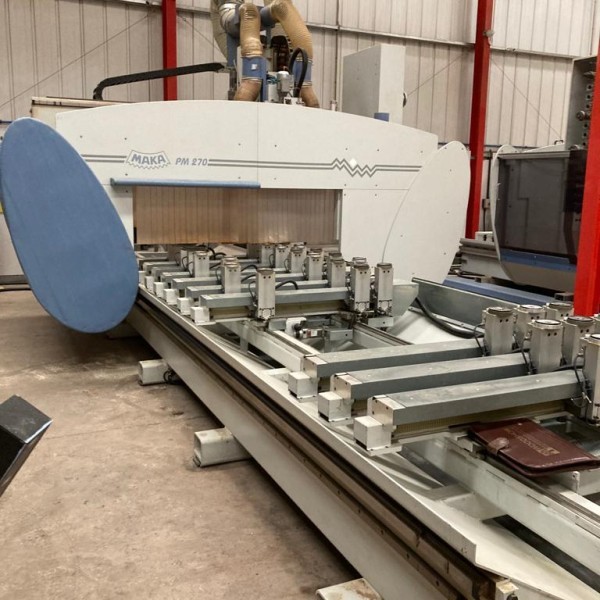

Maka PM270 5 Axis CNC Machining Centre - 2006 CE

About this Product

Travel areas - x axis 2350mm, y axis 6200mm

Z axis 700mm

A axis 540 degrees [ rotating ]

B axis 196 degrees [ pivoting + / - 98 degrees ]

Idle running speed - x / y axis 45m/min, z axis 24m/min

Universal 16kw 5 axis Routing head water cooled, with infinitely variable speeds upto 26000rpm. For HSK Tools

Chain type 32 position toolchanger to accept HSK tools

Automatic NC positioning of the table supporting bars

10 x Panel supports to accept various types of vacuum pods [ table divided in 2 clamping stations ]

Vaccum pump 128m3 / hr with stand by tank holding 250 L for rapid vacuum generation

2 x Vacuum clamping circuits

1 x Chipconveyor mounted in bed of machine

Automatic central lubrication

1 x Barcode reader

Siemens 840D 5 axis CNC Controller - mobile operating panel with 10"screen

Full original specification available on request

Laser projection system available at extra cost

Year - 2006 CE

Conditon - Very Good - can be inspected operational

This item is IN STOCK. Contact our team for more details.
