Camam FGS Rotary Shaping & Profiling machine

About this Product

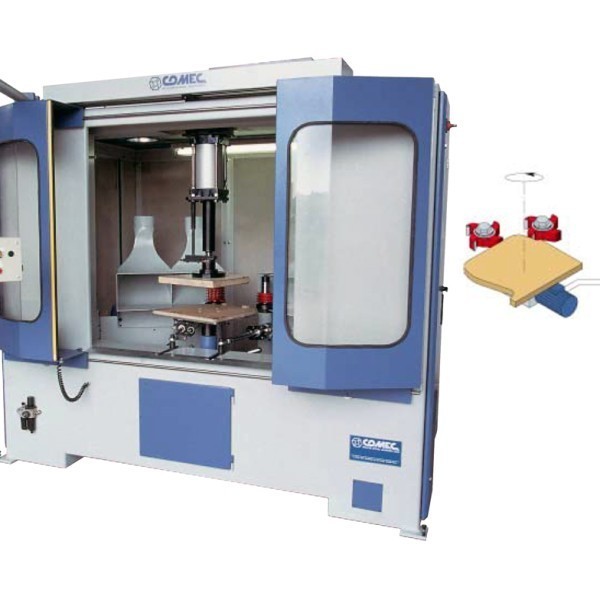

Compact rotary high production machine for shaping and milling equipped with single or twin machining heads. Milling / shaping takes place by means of the heads following a jig on the table.

The working area is totally enclosed in a safety cabin with automatic opening / closing of the doors. On request machines can be configured to suit customers own requirements


Compact rotary high production machine for shaping and milling equipped with single or twin machining heads.

Key Features:

High Production

Rotary operation

Single or twin milling heads

Specification

FGS 1T CAB

 1 x profiling / milling head 12.5hp motor at 7000rpm.

Max dia to be worked 800mm.

Min dia to be worked 110mm.

Rotation of work table 2, 3.5, 5. 7.5 revs per min.

Motor for rotation 2hp.

Centre pneumatic workpiece clamp.

CE safety protection including totally enclosed sound cabin.

FGS 2T CAB

1 x roughing profiling / milling head 12.5hp motor at 7000rpm.

1 x finishing profiling / milling head 7.5hp motor at 7000rpm

Max dia to be worked 1200mm.

Min dia to be worked 200mm.

Rotation of work table 2, 3.5, 5. 7.5 revs per min.

Motor for rotation 2hp.

Centre pneumatic workpiece clamp.

 CE safety protection including totally enclosed sound cabin.
