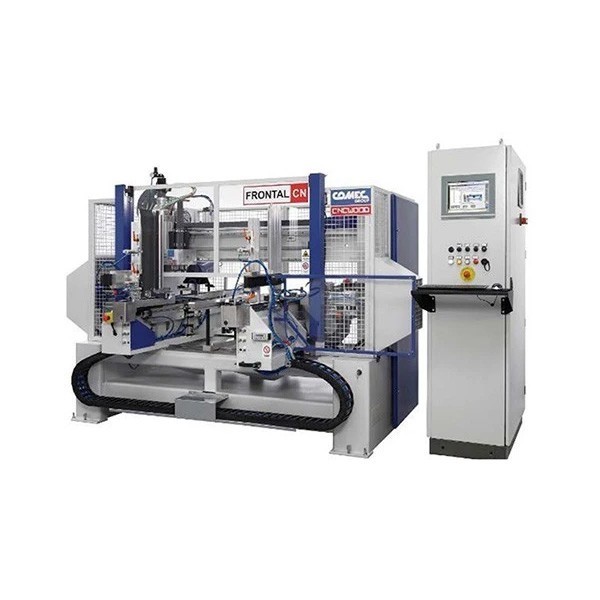

Comec Frontal 1500 CN - Throughfeed CNC Machine

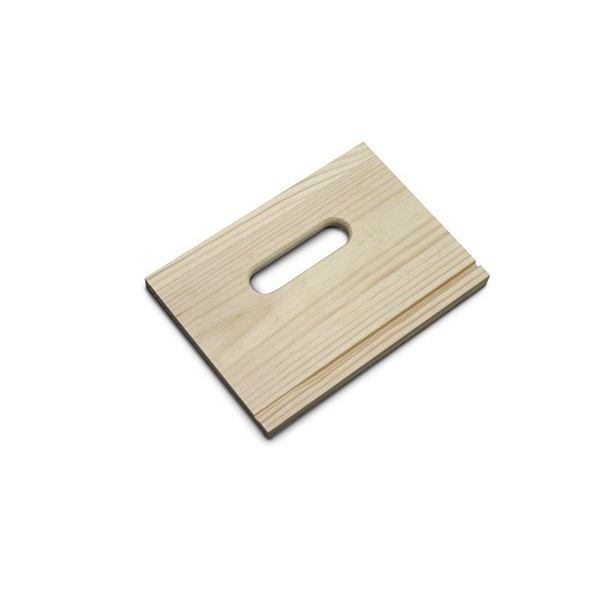

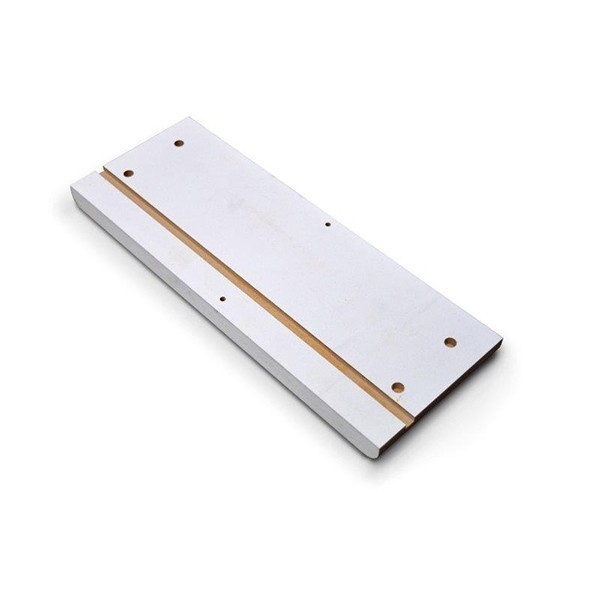

Your ultimate solution for the volume production of drawer components including drawer fronts, boxes and drilled panel parts.

About this Product

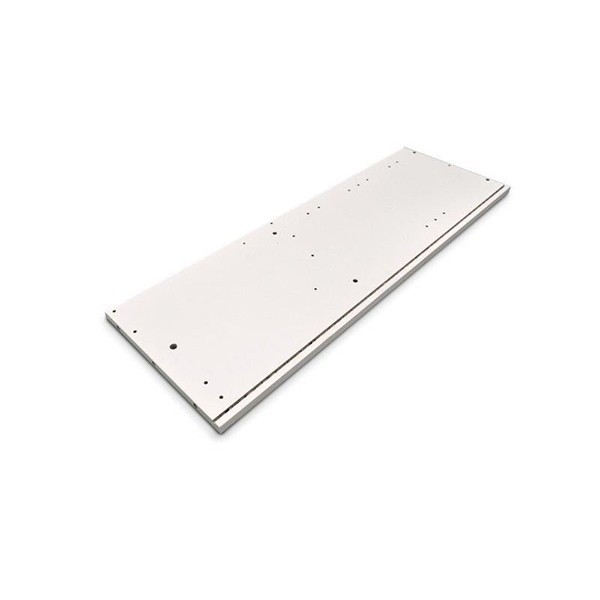

Streamline your manufacturing processes with the Frontal 1500 CN, a cutting-edge CNC machine designed for the precise production of drawer fronts, drawer boxes and drilled panel parts. This powerhouse boasts two dedicated workstations to meet your production demands with precision and speed.

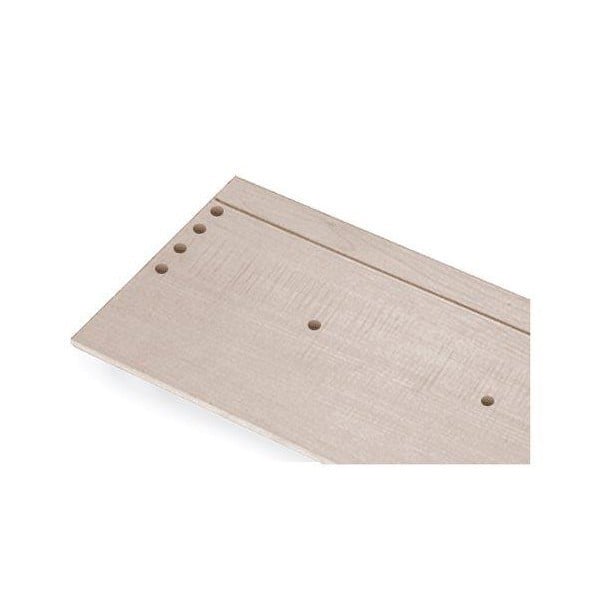

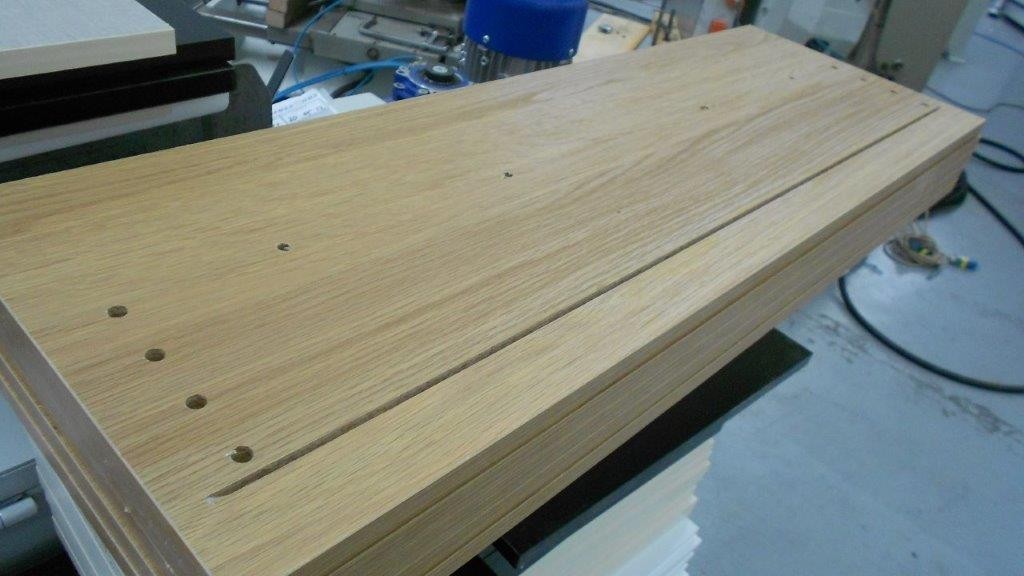

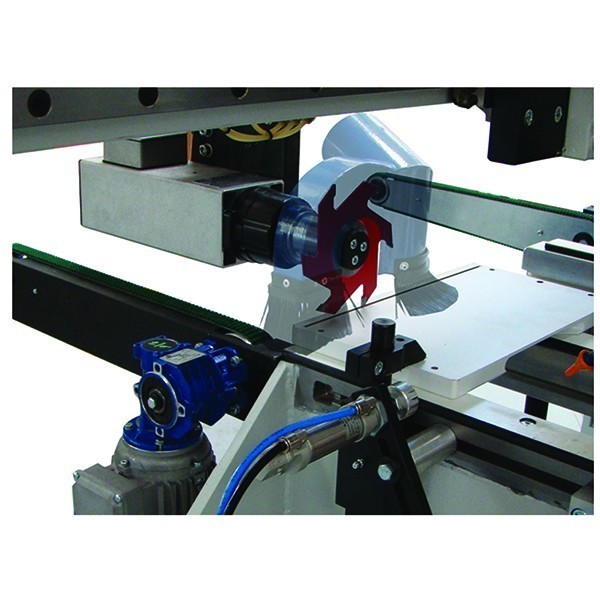

At the heart of the Frontal 1500 CN lies its CNC drilling group, equipped to handle both vertical and horizontal drilling operations. Whether you're producing intricate designs or standard components, this machine ensures consistency and quality with every piece. The second workstation features a linear grooving unit, operating seamlessly along the X axis, this unit expertly machines grooves for drawer bottoms.

One of the stand out features of this machine is its user-friendly design. With a hopper feed loading system and convenient piece return mechanism, this machine empowers a single operator to manage production comfortably. The Frontal 1500 CN is not a one-size fits all solution, we understand that every production environment is unique, which is why we offer bespoke configurations tailored to your specific needs. Whether it's additional features, customisations or specialised setups, we're committed to helping you achieve optimal results.

comec-frontal-cn1500-2s-ca-through-feed-machining-centre-for-drawer-elements-270323-kzdJhHtrtc.jpg
comec-frontal-cn1500-2s-ca-through-feed-machining-centre-for-drawer-elements-270323-kzdJhHtrtc.jpg
comec-frontal-cn1500-2s-ca-through-feed-machining-centre-for-drawer-elements-2-Lx0bihCEeD.jpg
comec-frontal-cn1500-2s-ca-through-feed-machining-centre-for-drawer-elements-4-080BHcFRBw.jpg
comec-frontal-cn1500-2s-ca-through-feed-machining-centre-for-drawer-elements-5-6DRSGKdEFl.jpg
comec-frontal-cn1500-2s-ca-through-feed-machining-centre-for-drawer-elements-6-gNkcAnupDS.jpg
comec-frontal-cn1500-2s-ca-through-feed-machining-centre-for-drawer-elements-7-Adq7DNCRmM.jpg
comec-frontal-cn1500-2s-ca-through-feed-machining-centre-for-drawer-elements-270323-5OATyHYc4y.jpg
comec-frontal-cn1500-2s-ca-through-feed-machining-centre-for-drawer-elements-270322-Vlz0qDWo0Z.jpg

  • CNC point to point drill head
  • Hopper feed loading and automatic piece return system
  • Custom configurations available

Specification

Technical Information

Machine base manufactured from electro welded thick steel plate to help ensure machining accuracy

Maximum working length 1500mm (longer on request)

Minimum working length 300mm

Maximum thickness 30mm

Minimum thickness 10mm

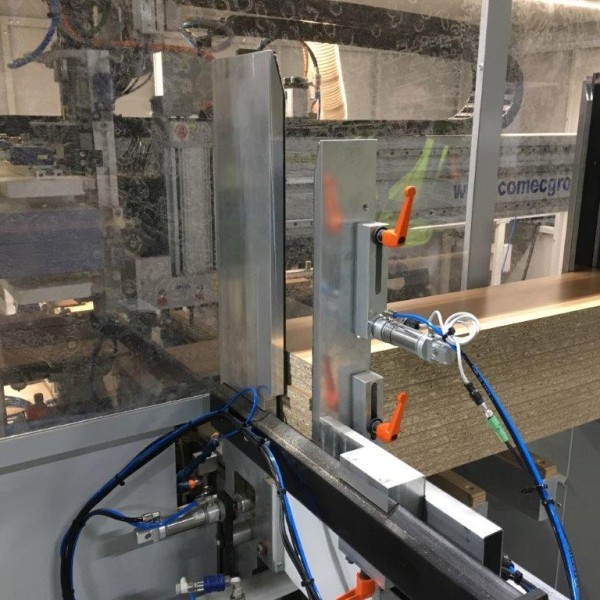

Right shoulder fixed, left shoulder moveable to set working width. Digital read out for setting

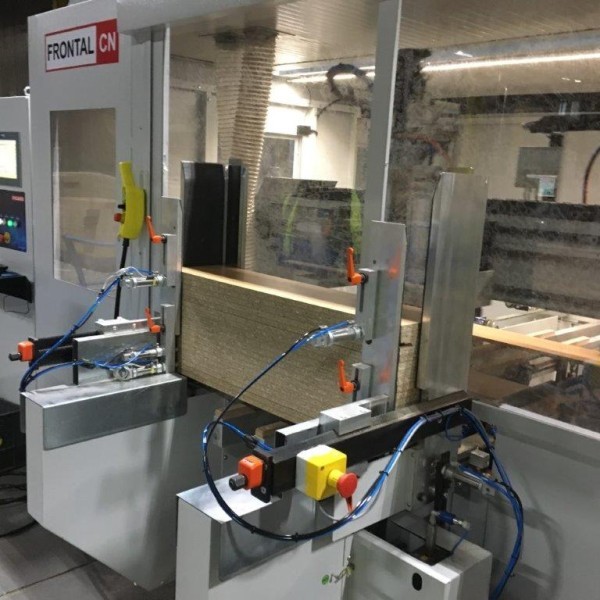

Automatic hopper feed loading.

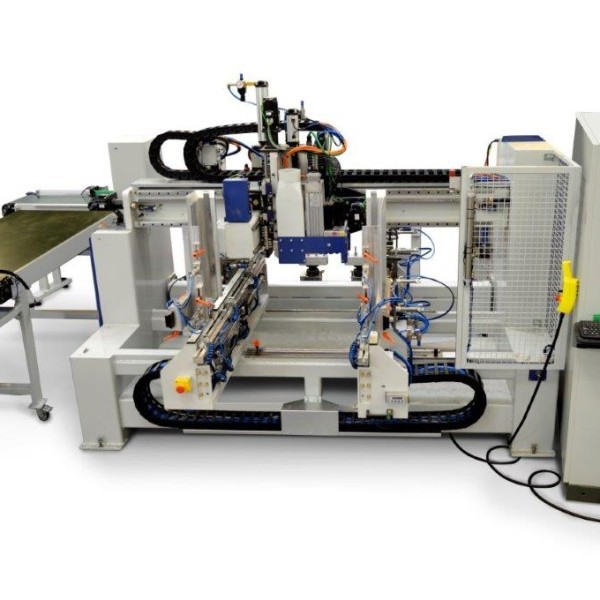

CNC point to point drilling group with motor 1.7kw controlled on the X,Y and Z axis

Grooving unit CNC controlled on X axis

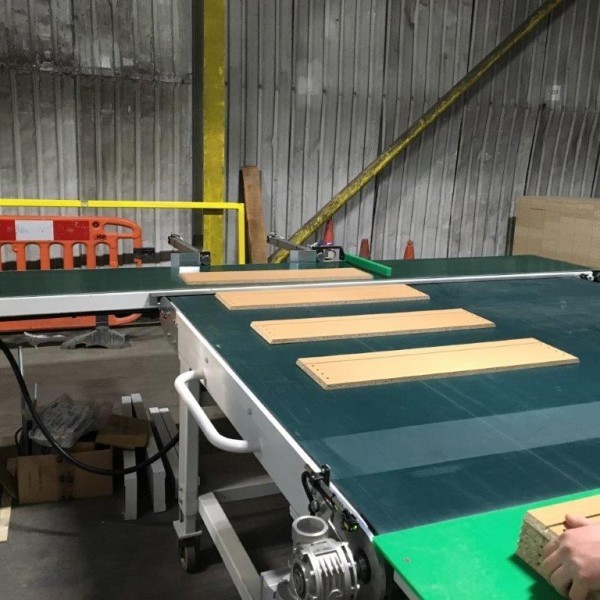

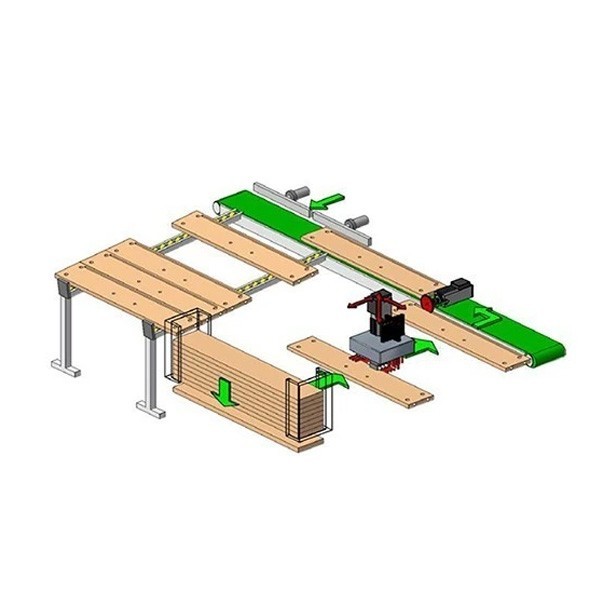

Rear transversal conveyor belt, with pneumatic electors pushing the panel on to the side conveyor belt transporting the panels back to the operator side

Standalone control panel

Software with parametric programming

Ethernet port for remote access included

Power & Air

Total installed power 25kw

Air supply 8 bar

Overall Dimensions

5000 x 3000mm overall floor space

3000kg
