Deltawood LB3-3T Multi Head Swing Chisel Mortiser

Heavy duty multi head swing chisel mortising machine ideal for the volume production of products such as door stiles, gates, garden furniture etc

  • Multi Head
  • High Volume
  • Increasing production

About this Product

A heavy duty multi head swing chisel mortising machine ideal for the volume production of products such as door stiles, gates, garden furniture etc. As standard the machine is equipped with 3 mortising heads which are manually adjustable along the length of the machine. Optionally more heads can be fitted. Workpiece clamping and movement in / out of the work table are controlled through hydraulics

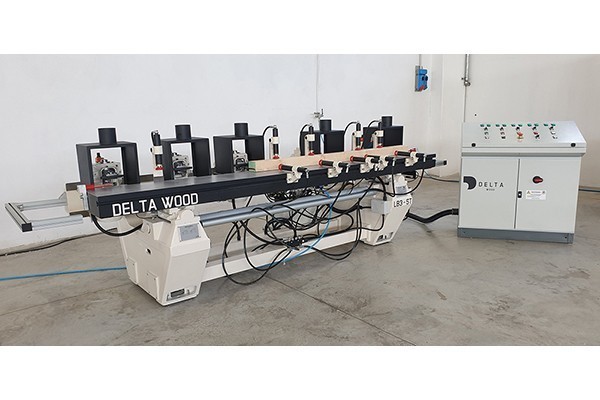

Deltawood LB3 3T Multi Head Swing Chisel Mortiser
Deltawood LB3 3T Multi Head Swing Chisel Mortiser

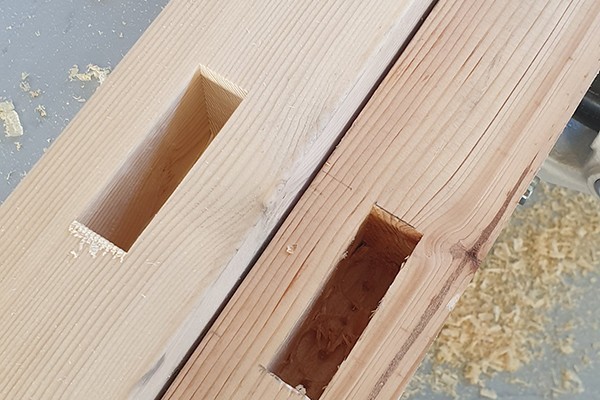

Deltawood Lb3 3t Multi Head Swing Chisel Mortiser 5

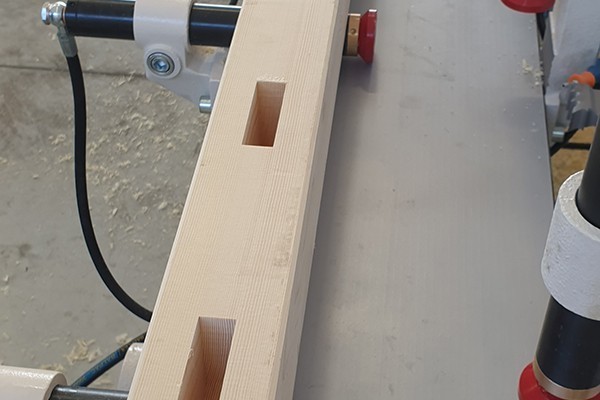

Deltawood Lb3 3t Multi Head Swing Chisel Mortiser 6

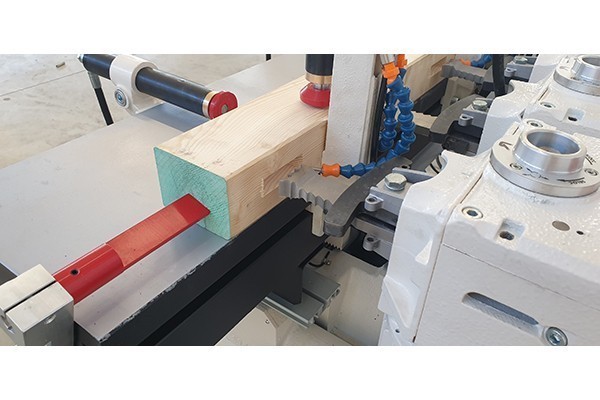

Deltawood Lb3 3t Multi Head Swing Chisel Mortiser 3
Specification

Automatic mortising machine with 3 heads
Worktable dimensions 3000 x 300mm
Cast iron construction to give maximum rigidity
3 x vertical hydraulic work piece clamps
3 x horizontal hydraulic work piece clamps
Speed movement in adjustable through hydraulics
Automatic operation

Mortising heads x 3.
Manually positioned in X axis with mechanical locks
Mechanical siko readouts for height position - Z axis
Double eccentric operation of the mortising heads (patented design)
Motor HP3
RPM 2800mm
Max distance between 2 x outside mortising heads 2800mm
Min distance between 2 x outside heads 180mm - ctre to ctre of mortise.
Dust extraction outlets 100mm

Hydraulic pump motor 10hp
