INNOVATIVE WOODWORKING MACHINERY & EXPERTISE

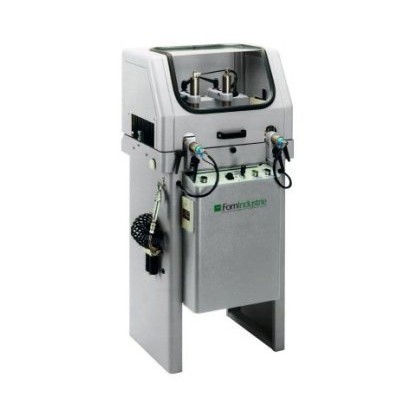

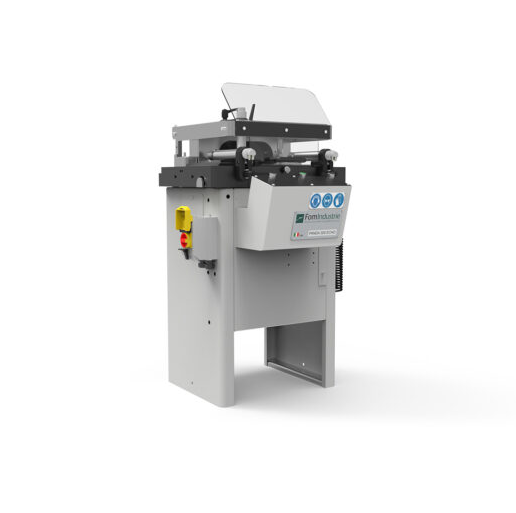

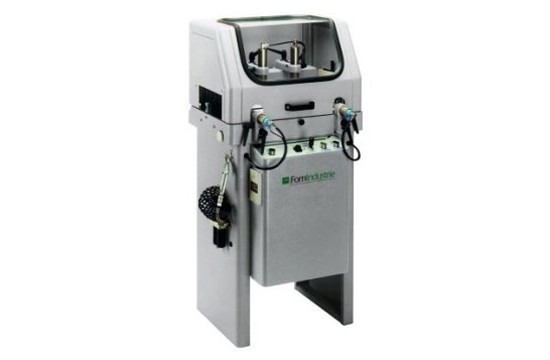

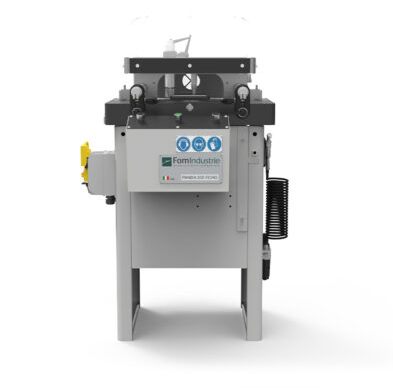

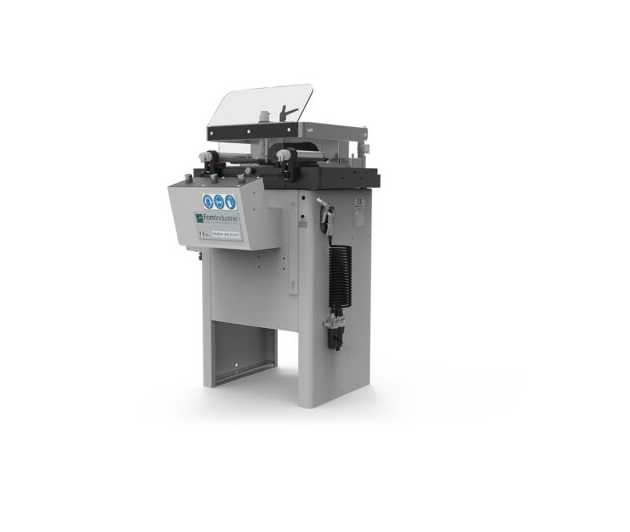

Fom Model Panda 300 Aluminium Cutting Upstroke Crosscut Saw

About this Product

Electropneumatic upstroke crosscut saw, for cutting Aluminium sections, oilpneumatic upstroke movement of the saw blade with pneumatic horizontal and vertical clamps, Manual rotation of the table on bearings for straight cutting and angles + / - 45 ° The machine is made in stabilized cast iron, The transmission via belt drive of the 2hp motor to the 300mm TCT saw blade is complete with spray mist blade lubrication.

Electropneumatic upstroke crosscut saw, for cutting Aluminium sections, oilpneumatic upstroke movement of the saw blade with pneumatic horizontal and vertical clamps.

Specification

Oilpneumatic saw stroke

Blade rotation + /- 45 °

300mm TCT saw blade

2hp saw motor

32mm saw spindle

2 x horizontal clamps

2 x vertical clamps

Spray mist blade lubrication

Enclosed safety hood

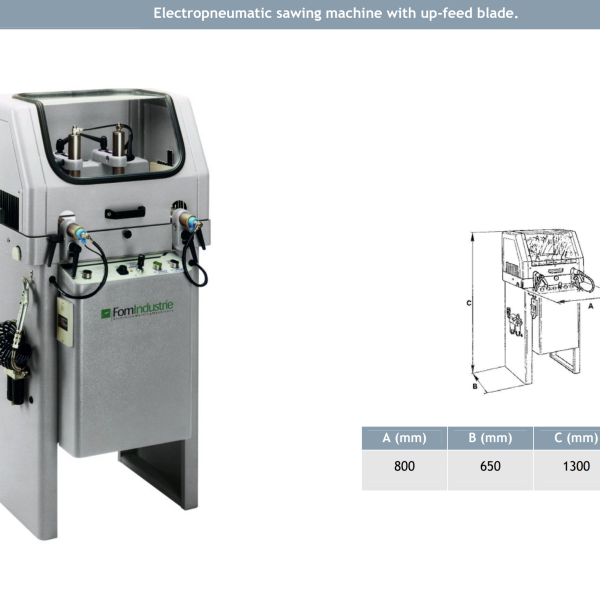

For cutting capacity see cutting diagram

Options
Downloads
