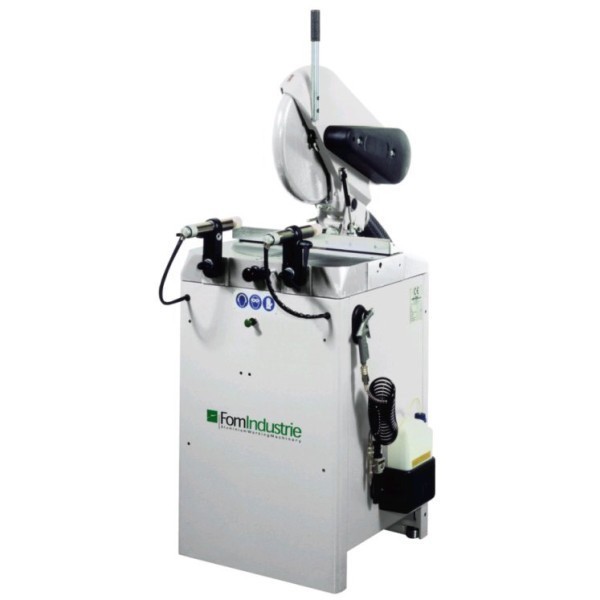

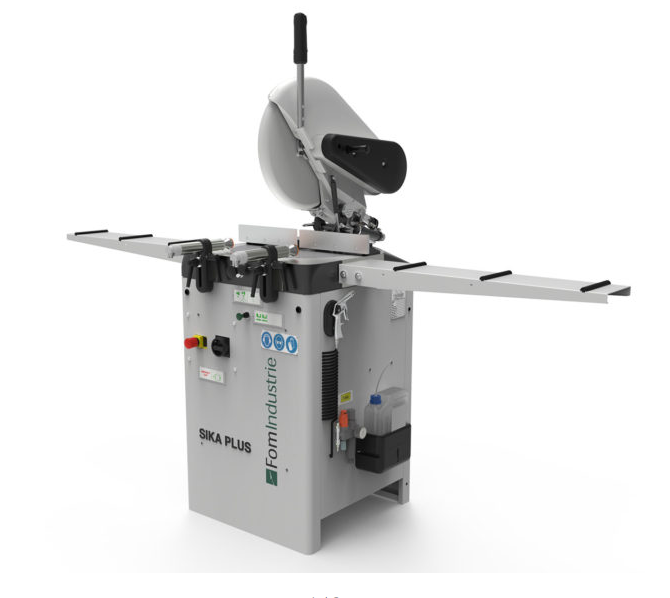

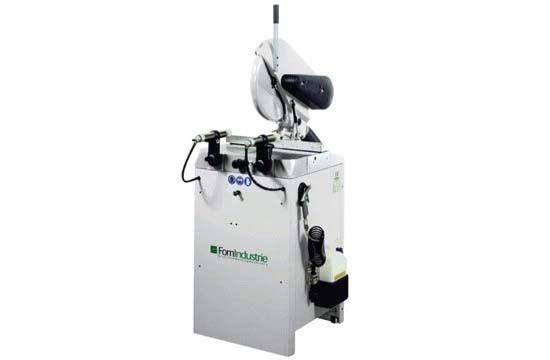

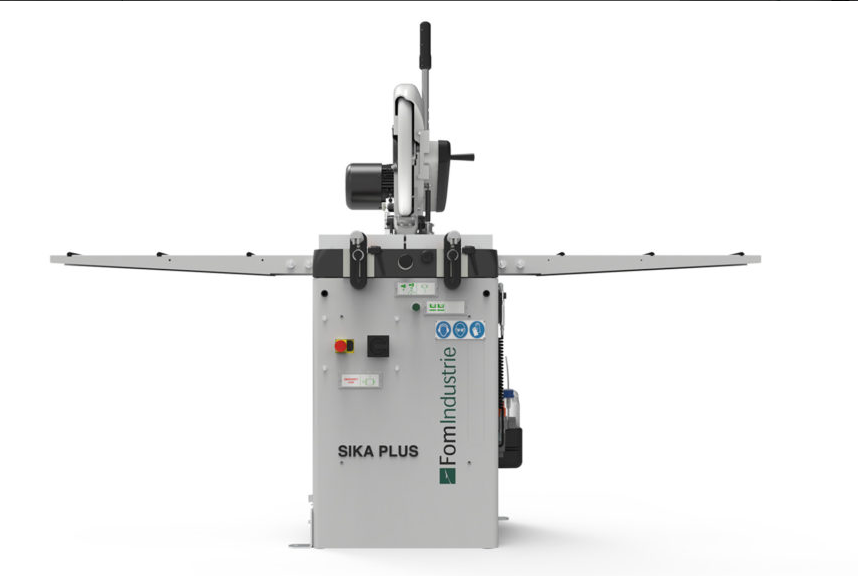

Fom Model Sika Plus M Single Blade Aluminium Cutting Saw

About this Product

Single blade heavy duty aluminium cutting saw. Made from stabilised cast iron. The machine is suitable for cutting aluminium profiles and extrusions, with manual downstroke movement. The saw is fitted with a 3hp motor and comes complete with Ø400mm TCT saw blade, The table rotates on bearings guaranteeing long term precision, the angles are manually set with positive locking at 90° and 45°. Intermediate angles are achieved using the scale and front locking mechanism. The head rotates +/- 45 ° and tiltable to 45° to the left. The saw is fitted to steel fabricated stand, 2 x horizontal clamps and spray mist lubrication system all come as standard. Sika Hyro Pneumatic with pneumatic downstroke and 2 hand start.

  • 2.2kw self braking motor
  • Ø400mm TCT saw blade
  • 2 x front horizontal clamps
Specification

2.2kw self braking motor

Ø400mm TCT saw blade

2 x front horizontal clamps

Table rotation fitted with bearings

Ø32mm saw spindle

Cutting capacity ( see cutting chart )

Spray mist blade lubrication system

CE safety equipment

Options
Downloads
