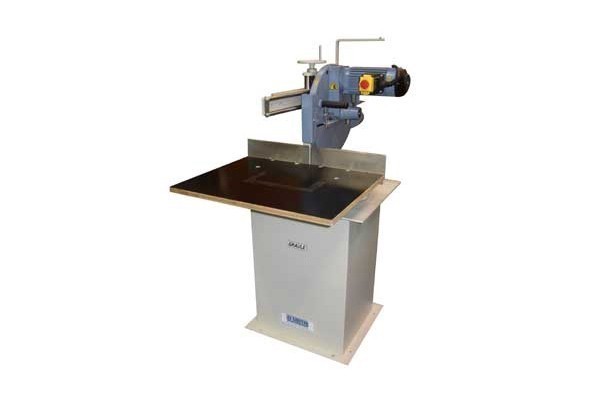

Graule ZS135 Radial Arm Crosscut Saw

A quaility radial arm cross cut for accurate cutting straight or angled.

  • Compact
  • Ergonmic design
  • Straight or angled cutting

About this Product

A German built and designed crosscut saw with a facility for the easy cutting of angled or straight components. A unique feature of the machine is that when angle cutting is required the saw unit pivots about a central point thus always maintaining the same cutting length. Although compact in design the machine gives large cutting capacity.

Graule ZS135 Radial Arm Crosscut Saw
Graule ZS135 Radial Arm Crosscut Saw
Specification
  • Precision ball bearing movement on hardened steel runners.
  • Sturdy cast iron construction with steel base stand.
  • Spring return of sawcarriage.
  • 350mm max. sawblade dia.
  • 3 kW brake motor.
  • 30-40mm dia spindle dia.
  • 45 - 90 - 25 degree horizontal movement (swivel)
  • Adjustable upper protection
  • 350mm dia TCT sawblade - 72 teeth.

Cutting capacity:

  • 350mm x 135mm deep at 90 degrees.
  • 250mm wide x 135mm deep at 45 degrees (swivel).
  • Dust extraction outlet 100mm
  • Working height of table 900mm
  • 'N' model with vertical tilting.
  • 90-45 degrees tilt to left.
  • Max capacity 350mm wide x 92mm deep.
