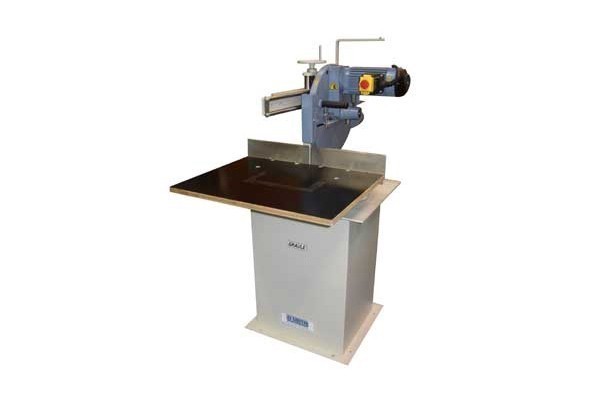

Graule ZS135 - Radial Arm Crosscut Saw

A quality radial arm crosscut for accurate straight or angled cutting. Prices from £6,290 plus VAT.

About this Product

Discover precision and efficiency like never before with this German built and designed crosscut saw, crafted to effortlessly handle both angled and straight cutting of wooden components with ease.

What sets this machine apart is its unique pivoting saw unit, ensuring consistent cutting length even when angle cutting is required. Despite its compact design, the Graule ZS135 boasts an impressive cutting capacity, making it a powerhouse in any workshop.

Featuring a 350mm diameter saw blade and 3kw brake motor, the Graule ZS135 crosscut saw delivers exceptional cutting performance. Its horizontal movement ranges from 45 - 90 - 25 degrees, providing versatility to tackle a variety of cutting tasks. Constructed with a sturdy cast iron body and steel base stand, this machine is built to withstand the rigors of daily use while maintaining stability and precision.

The Stromabstop Automatic Positioning Stop can be fitted to this crosscutting machine, saving you time and money by eliminating mismeasuring and miscutting.

  • Sturdy and compact design
  • Unique pivoting saw unit
  • Ideal for straight and angled cutting
Specification

Technical Information

Precision ball bearing movement on hardened steel runners

Spring return of sawcarriage

350mm max. saw blade diameter (72 teeth)

3 kW brake motor

30-40mm dia spindle diameter

45 - 90 - 25 degree horizontal movement (swivel)

90-45 degree vertical tilt to left - 'N' model only

Adjustable upper protection

Dust extraction outlet 100mm

Working height of table 900mm

Cutting Capacity

350mm x 135mm deep at 90 degrees.

250mm wide x 135mm deep at 45 degrees (swivel)

350mm wide x 92mm deep in vertical tilt - 'N' model

Options
