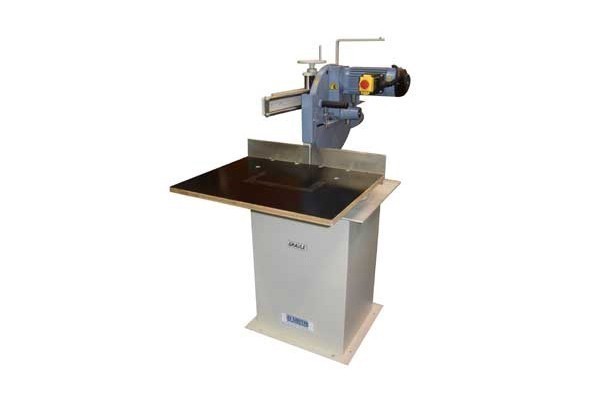

A compact and sturdy radial arm crosscut with vertical tilting for straight or angled cutting. Available to buy online with immediate delivery.
Discover precision and efficiency like never before with this German built and designed crosscut saw, crafted to effortlessly handle both angled and straight cutting of wood, aluminium, plastic and composite components with ease.
Featuring a 420 mm diameter saw blade and 3kw brake motor, the Graule ZS170 delivers exceptional cutting performance with a unique pivoting saw unit, ensuring consistent cutting length time after time. Despite its compact design, the ZS170 boasts an impressive cutting capacity, making it a powerhouse in any workshop.
The ZS170 radial arm crosscut saw can be fitted with a number of options including digital readouts to display angle positions (swivel and/or tilt ), hydraulic damper brake (hydro-check) and pneumatic work piece clamps.
The Stromabstop Automatic Positioning Stop can be fitted to this crosscutting machine, saving you time and money by eliminating errors in measuring and inaccurate cutting.
Discover precision and efficiency like never before with this German built and designed crosscut saw, crafted to effortlessly handle both angled and straight cutting of wood, aluminium, plastic and composite components with ease.
Featuring a 420 mm diameter saw blade and 3kw brake motor, the Graule ZS170 delivers exceptional cutting performance with a unique pivoting saw unit, ensuring consistent cutting length time after time. Despite its compact design, the ZS170 boasts an impressive cutting capacity, making it a powerhouse in any workshop.
The ZS170 radial arm crosscut saw can be fitted with a number of options including digital readouts to display angle positions (swivel and/or tilt ), hydraulic damper brake (hydro-check) and pneumatic work piece clamps.
The Stromabstop Automatic Positioning Stop can be fitted to this crosscutting machine, saving you time and money by eliminating errors in measuring and inaccurate cutting.
Product information
Technical Information
Precision ball bearing movement on hardened steel runners
Sturdy cast iron construction with steel base stand
3kW brake motor
Spring return of sawcarriage
420mm max. sawblade diameter
40mm spindle diameter
+ 45 / 90 / - 60 degree horizontal movement (swivel)
90 - 45 degree vertical tilt to left
Adjustable upper protection

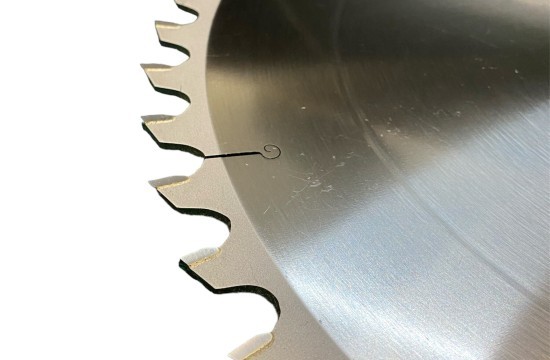

1 x TCT saw blade for wood 420 x 84 teeth x 3.5mm kerf x 40mm bore - WZ alternate bevel
Dust extraction outlet 100mm
Working height of table 900mm
Cutting Capacity
400mm x 170mm deep at 90 degrees
280mm wide x 170mm deep at 45 degrees (swivel)
400mm wide x 115mm deep at 45 degrees
