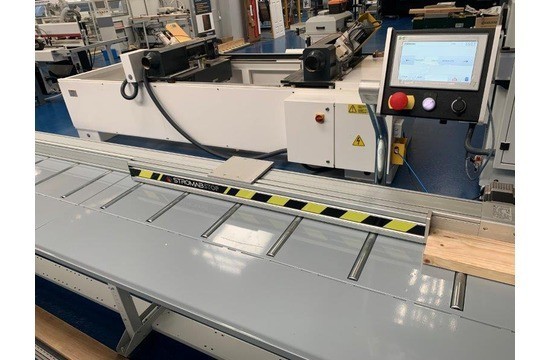

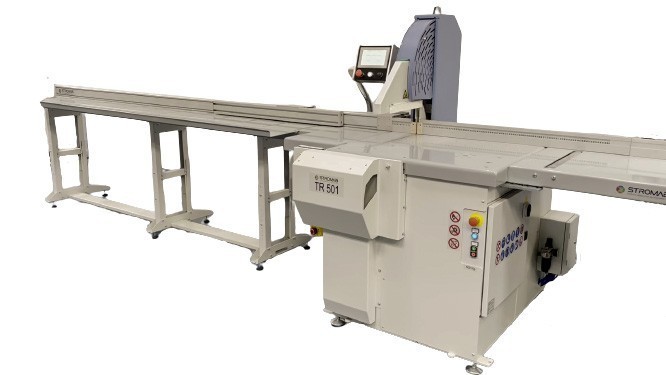

The Stromabstop is an automatic Positioning System, built with experience and knowledge gained over many years manufacturing fully automatic crosscutting saws. The Stromabstop is a simple to use positioning stop and is compatible not only with Stromab crosscut saws but a wide range of applications. The stop eliminates the need to measure and mark out prior to cutting / drilling etc and with repeated accuracy. The intuitive simple to use control panel makes programming easy and straight forward, with 7" touch screen colour display, USB for importing cutting lists and optional optimisation software available.
The Stromabstop is an automatic Positioning System, built with experience and knowledge gained over many years manufacturing fully automatic crosscutting saws. The Stromabstop is a simple to use positioning stop and is compatible not only with Stromab crosscut saws but a wide range of applications. The stop eliminates the need to measure and mark out prior to cutting / drilling etc and with repeated accuracy. The intuitive simple to use control panel makes programming easy and straight forward, with 7" touch screen colour display, USB for importing cutting lists and optional optimisation software available.
The Stromabstop is an automatic Positioning System, built with experience and knowledge gained over many years manufacturing fully automatic crosscutting saws. The Stromabstop is a simple to use positioning stop and is compatible not only with Stromab crosscut saws but a wide range of applications. The stop eliminates the need to measure and mark out prior to cutting / drilling etc and with repeated accuracy. The intuitive simple to use control panel makes programming easy and straight forward, with 7" touch screen colour display, USB for importing cutting lists and optional optimisation software available.
Available in working lengths of 3000 - 4500 - 6000 and 7000 mm lengths
Reversible Left or Right direction

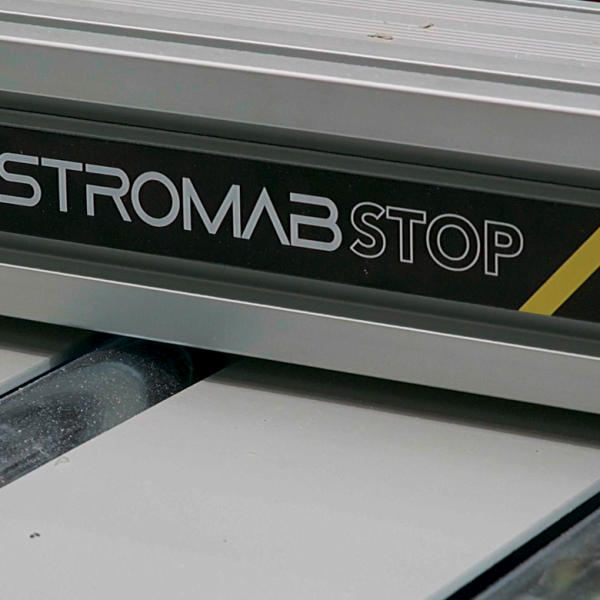

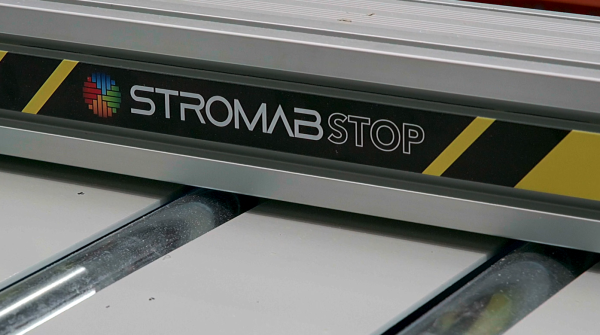

Anodised aluminium profile 105x 90 mm
Reinforced 32 mm toothed belt
Single phase motor 6 Nm 115 - 230 v
Positioning speed 60 m/min
Repeat precision +/- 0.1 mm

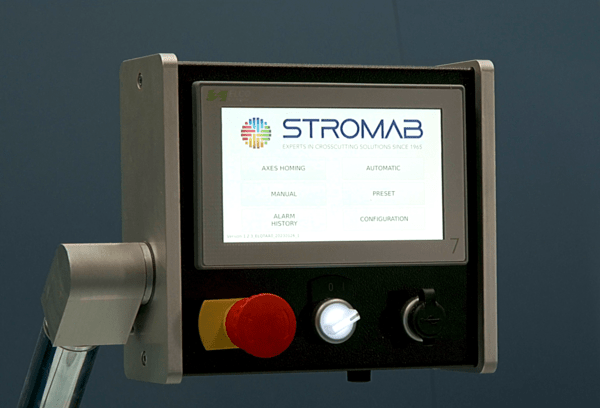

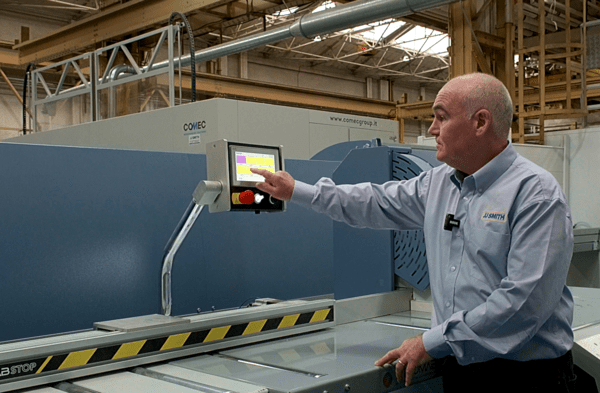

Smart 7 touch screen colour control unit 7" display
3 working mades Manual for Absolute or Incremental working, Preset with 8 pre set positions and Automatic cutting list mode,
USB port for importing cutting lists
