Saw Unit

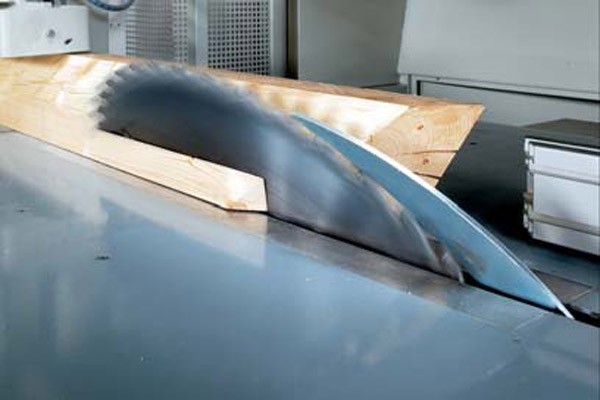

The innovative 5-axis saw body of the CT800 means a variety of cutting geometries are possible in one compact machine - straight, mitred, compound mitres, scarf cuts and full length ripping. Powered by a 15kW saw motor and a huge 800mm diameter sawblade, the CT800 has the ability to crosscut timber of 280mm high x 770mm wide or rip lengths up to 300mm high. Automatic table rotation of 0-340 degrees allows timber to be fed in from both directions of the infeed.
Infeed

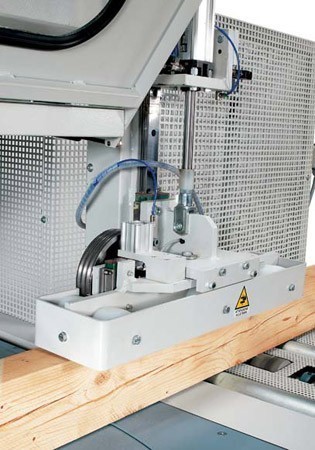

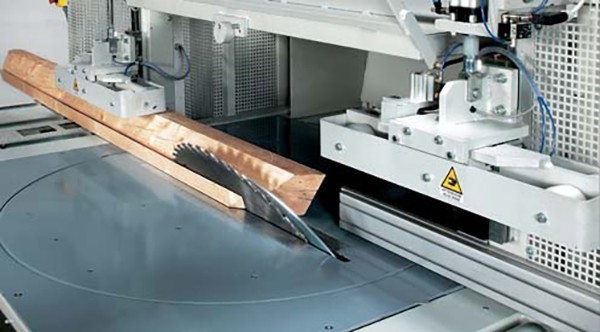

Using powerful servo driven pressure rollers either side of the saw body, the CT800 is able to drive the heaviest of timber beams back and forth through the saw to complete complex cutting geometries.
For accuracy of positioning the CT800 uses two independant servo driven pressure rollers.
Controller
Harnessing the power of an ELCO Top 12 colour touch screen, programming of cutting lists is straightforward.
Saw Unit
The innovative 5-axis saw body of the CT800 means a variety of cutting geometries are possible in one compact machine - straight, mitred, compound mitres, scarf cuts and full length ripping. Powered by a 15kW saw motor and a huge 800mm diameter sawblade, the CT800 has the ability to crosscut timber of 280mm high x 770mm wide or rip lengths up to 300mm high. Automatic table rotation of 0-340 degrees allows timber to be fed in from both directions of the infeed.
Infeed
Using powerful servo driven pressure rollers either side of the saw body, the CT800 is able to drive the heaviest of timber beams back and forth through the saw to complete complex cutting geometries.
For accuracy of positioning the CT800 uses two independant servo driven pressure rollers.
Controller
Harnessing the power of an ELCO Top 12 colour touch screen, programming of cutting lists is straightforward.
Saw Unit
800mm diameter blade
15kW saw motor
Cutting capacity - straight - single stroke - 280 x 450mm / 250 x 390 / 200 x 450 (max panel height 300mm)
Cutting capacity - straight - combined stroke - 280 x 770mm / 250 x 840
Cutting capacity - 45 degrees - single stroke - 200 x 210mm
Cutting capacity - 45 degrees - combined stroke - 200 x 760mm

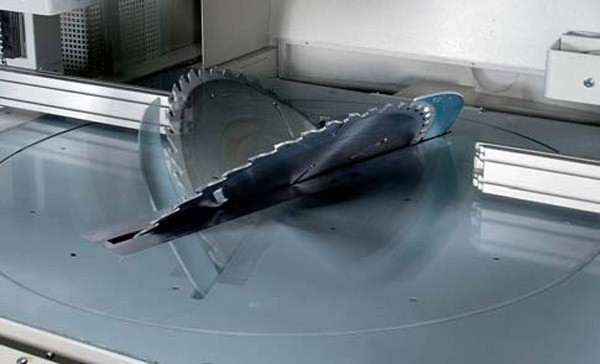

Blade rotation 0 - 340 degrees (max panel height 290mm)
Blade inclination 90-45 degrees (max panel height 200mm)
Forward movement of saw carriage 600mm

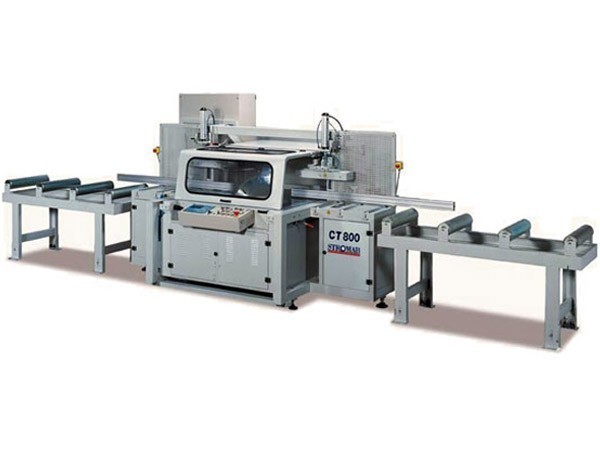

Infeed & Outfeed
1m outfeed table
Touch screen controller
Remote programming of cutting list via USB
Controller
Touch screen controller
