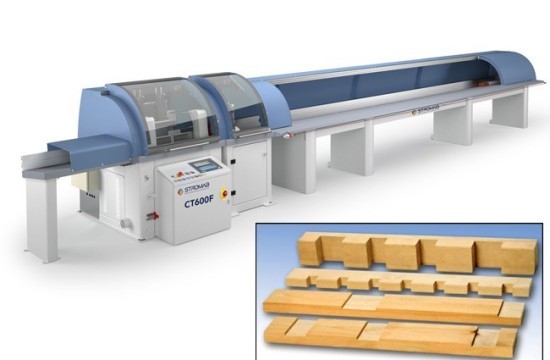

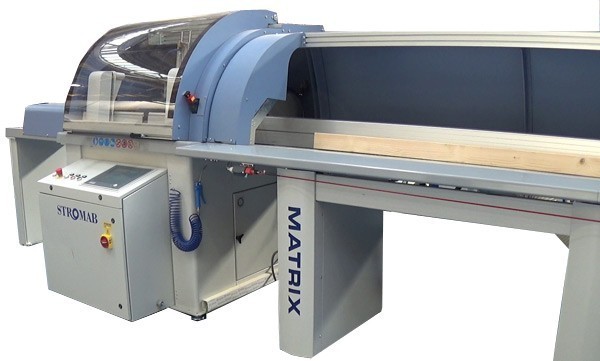

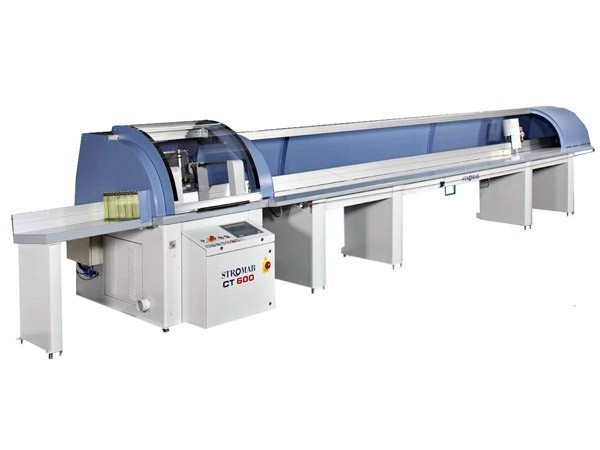

Stromab CT600 - Automatic Angle Crosscut Saw

Stromab's flagship machine with over 200 installations in the UK and Ireland!

About this Product

Saw Unit

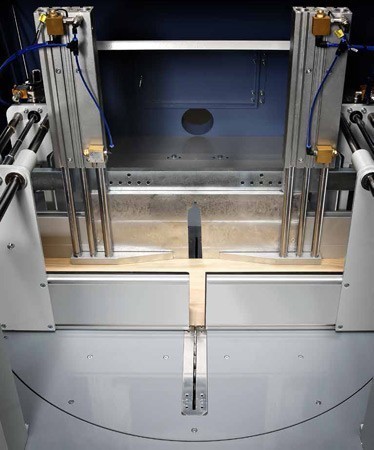

Coupling the main saw body features of +/- 0.2 degree accuracy, 7.5kW saw motor and 4 independent electro pneumatic clamps, the 600mm diameter saw blade is well equipped, even when cutting at very acute angles.

Thanks to an innovative saw blade positioning system, a variable geometry cutting capability is available as standard on all models. This allows a cutting circle of either 200mm x 370mm or 160mm x 410mm.

Infeed System

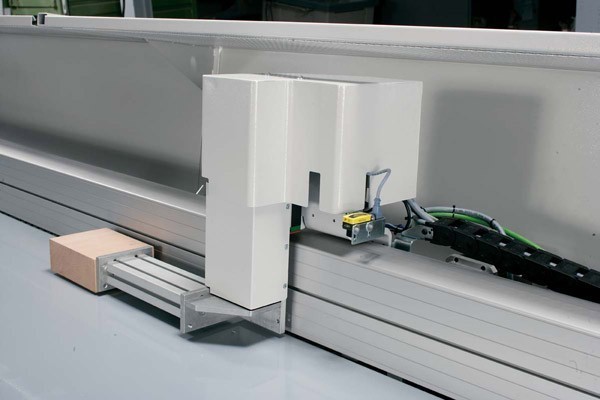

Consistency is the hallmark of Stromab's automatic range, where the tables and push feed systems maintain unwavering quality standards. Elevating precision to new heights, the CT600 is equipped with a stock length reading camera, seamlessly accommodating both standard and random lengths of timber at any juncture. Powered by a servo-driven rack and pinion push feed system, it effortlessly handles infeed lengths of up to 14m without compromising on speed (max 90m/min) or positioning accuracy (+/- 0.4mm). Setting the gold standard in the market, Stromab's infeed system outpaces competitors with unmatched speed, unparalleled capacity, and exceptional accuracy.

Controller

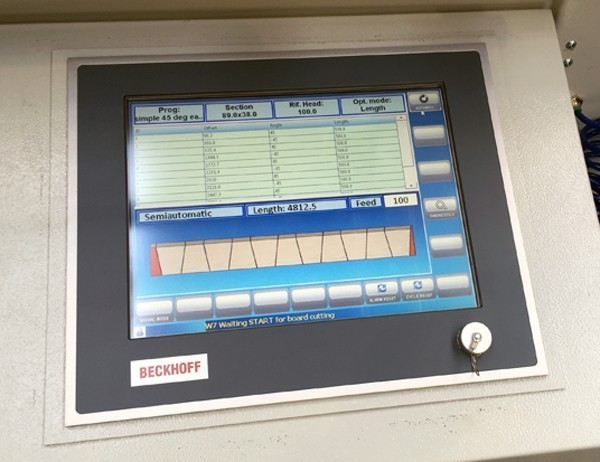

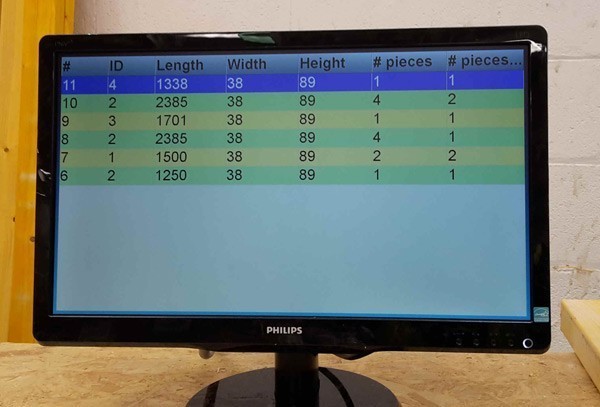

Powered by a state-of-the-art 12" touch screen industrial PC from Beckhoff Germany and TwinCAT automation software, the simple user interface allows four types of data input: Manual Entry / XML / BTL / Excel files. Five programming and optimisation modes are freely selectable - Board Sequence, Priority, Min. Waste, Max. Length & Pre-Optimise* Rotatable 3D piece graphics allow users to visually inspect parts before, during and after they are cut.

*Pre Optimise is available with JJ Smith's Design2Saw office software package. Design2Saw can be used with several machine manufacturers and pre-optimises cutting lists to provide comprehensive data on yields, waste, stock timber and pre-planning production schedules. All cutting list data can be downloaded directly from supported design software packages or enter manually via Excel.

  • Best selling angled crosscut
  • 0.2m accuracy
  • 200mm x 370mm cutting capacity

Specification

Saw Unit

7.5kw saw motor

600mm diameter saw blade

200mm x 215 cutting height

160mm x 140mm cutting width

0.2 degree position accuracy

Infeed & Outfeed

Length measuring camera

90m/min positioning speed

0.4mm positioning accuracy

8 degree incline on table

Servo driven rack & pinion

1m outfeed table

Automatic lifting of pusher arm

Controller

BECKHOFF 12" industrial touch screen PC

Windows based programming software

6 optimisation criteria - longest size, minimum waste, sequence, priority size, by volume or by value
