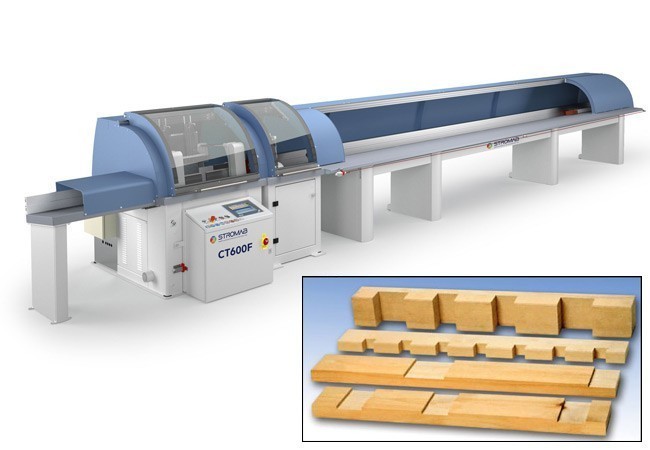

Stromab CT600/F - Automatic Angle Crosscut & Combined Notcher

A unique automatic notching and angle cutting automatic crosscut saw.

About this Product

Saw & Milling Unit

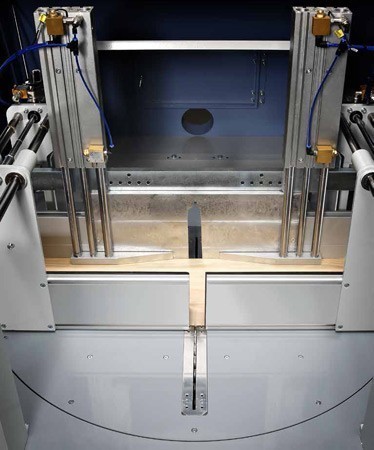

Coupling the main saw body features of +/- 0.2 degree accuracy, 7.5kW saw motor and four independent electro pneumatic clamps, the 600mm diameter saw blade is well equipped even when cutting at very acute angles. Additionally, an integrated milling unit with a huge 100mm x 400mm x 75mm capacity completes the F model and opens the CT600 range up to timber frame, door production, garden furniture and much more!

Infeed System

Across the entire automatic range, Stromab tables and push feed systems remain constant to keep the quality to the highest level. The CT600/F includes as standard an optimisation camera which allows standard or random lengths of timber to be used at any point. Using a brushless servo driven rack and pinion push feed system, it enables infeed lengths of up to 14m capacity without compromising on speed (max 90m/min) or positioning accuray (+/- 0.4mm).

Stromab's infeed system is the fastest, highest capacity and most accurate on the market in comparison to standard competitor models.

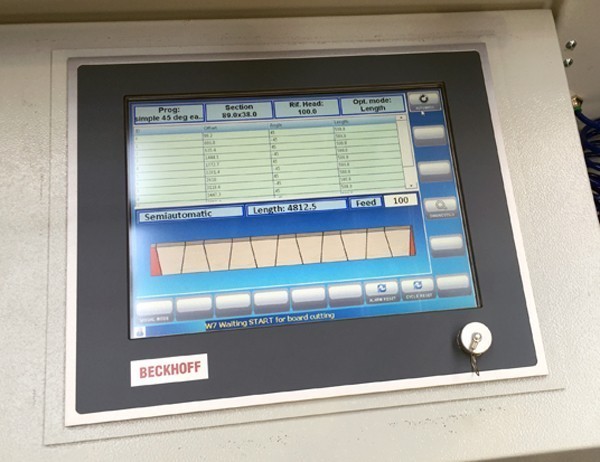

Controller

Powered by a state-of-the-art 12" touch screen industrial PC from Beckhoff Germany and TwinCAT automation software, the simple user interface allows four types of data input: Manual Entry / XML / BTL / Excel files.

From there, five programming and optimisation modes are freely selectable - Board Sequence, Priority, Min. Waste, Max. Length & Pre-Optimise*. Milling positions are easily identifiable using the rotatable 3D piece graphics and allow the user to visually inspect parts before, during, and after they are cut.

*Pre Optimise is available with JJ Smith's Design2Saw office software package. Design2Saw can be used with several machine manufacturers and pre-optimises cutting lists to provide comprehensive data on yields, waste, stock timber and pre-planning production schedules. All cutting list data can be downloaded directly from supported design software packages or enter manually via Excel.

  • Competitively priced
  • True woodworking centre
  • Industry standard

Specification

Saw Unit

7.5kw saw motor

600mm diameter saw blade

200mm x 215 cutting height

160mm x 140mm cutting width

0.2 degree position accuracy

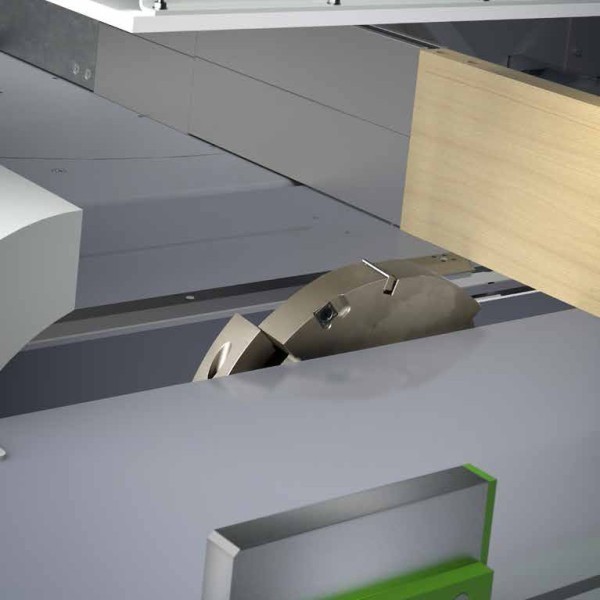

Milling Unit

4kW milling motor

280mm diameter block with replaceable knives

400mm stroke

100mm max width (single pass)

75mm depth

Infeed & Outfeed

Length measuring camera

90m/min positioning speed

0.4mm positioning accuracy

8 degree incline on table

Servo driven rack & pinion

1m outfeed table

Automatic lifting of pusher arm

Controller

BECKHOFF 12" industrial touch screen PC

Windows based programming software

6 optimisation criteria - longest size, minimum waste, sequence, priority size, by volume or by value
