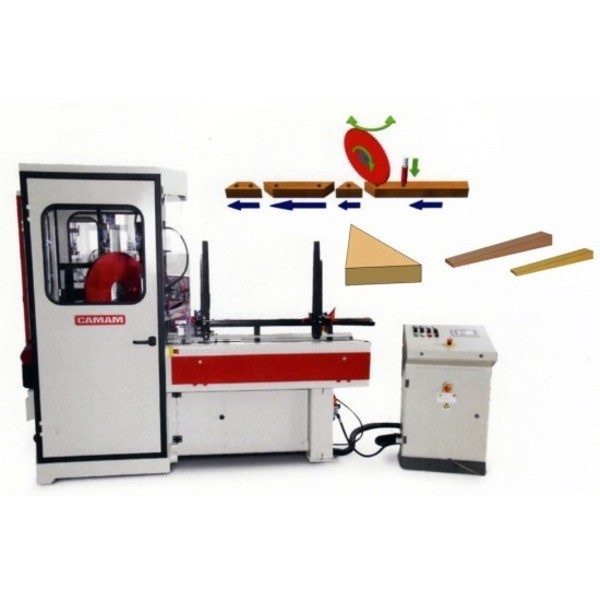

Camam TAC1 - Volume Component Automatic Angular Crosscut Saw

Transform your manufacturing processes with this high volume small component crosscut saw.

About this Product

Key Features

Perfectly suited to high volume component manufacturing such as stair wedges, sofa corner blocks, truss & furniture components, glue blocks, filler pieces.

Self centring grippers and centreline cutting with angles of +/-60 degrees.

Hopper fed with a standard length capacity of 1350mm - components are collected in box underneath..


  • High production of small components
  • Produce up to 800 pieces per hour
  • Small footprint to maximise floor space

Specification

1350mm x 200mm x 80mm Capacity

Cutting thickness from 10mm to 80mm

Cutting width from 10mm to 200mm

3 seconds per operation - feeding, cutting & drilling = 9 seconds

Up to 60m/min advancement speed

4kW saw motor

+/- 60 degree rotation - mechanical adjustment

Completely enclosed interlock saw cabin

Outfeed conveyor belt
