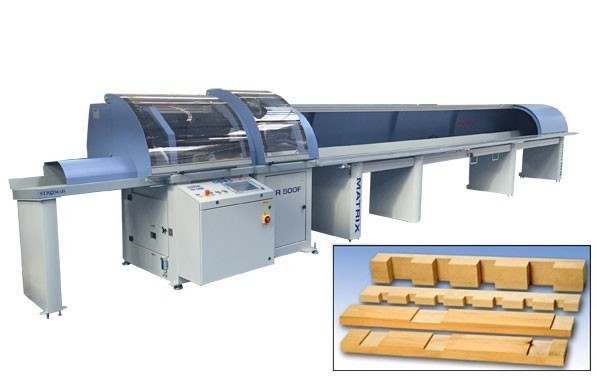

Stromab Matrix/F - Automatic Crosscut & Combined Notcher

Highly flexible automatic notching and crosscutting saw.

About this Product

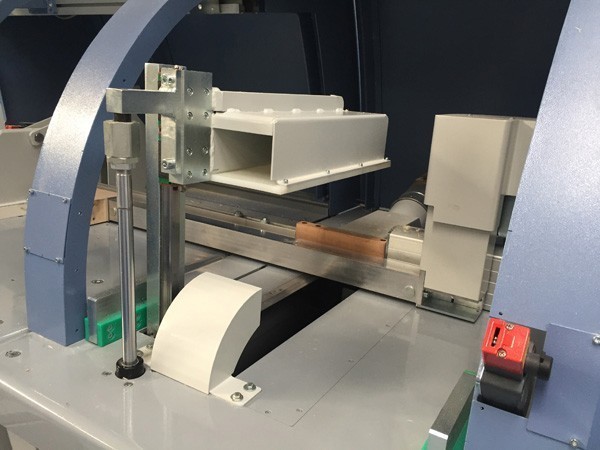

Saw & Milling Unit

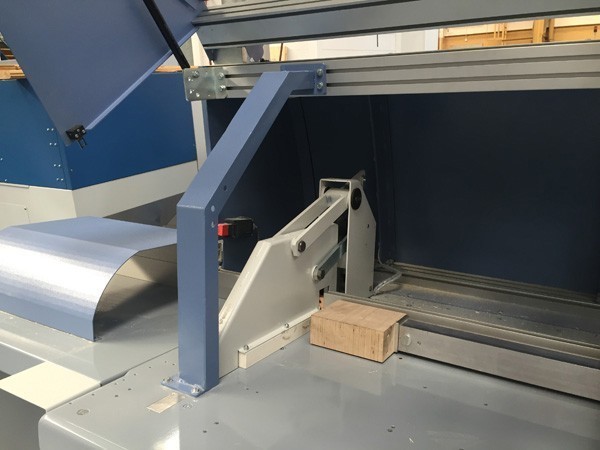

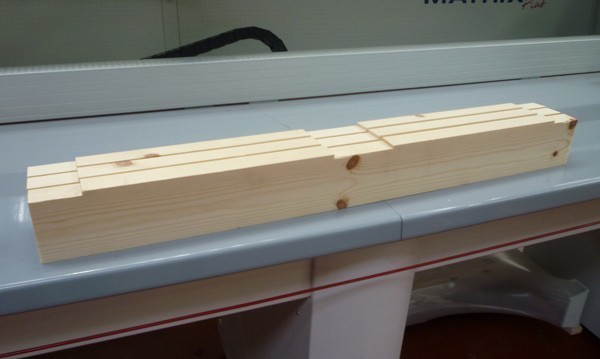

Built to meet the exacting standards of a sawmill while delivering the precision reminiscent of fine joinery, the globally acclaimed TR500 saw unit boasts a remarkable track record of over 400 installations in the UK and has been used in the industry for over half a century. As part of the TR platform, this model stands out with its enduring 7.5kW saw motor - a consistent feature across the Stromab range. With a variable speed cutting cycle, it effortlessly handles softwoods or hardwoods, accommodating dimensions of up to 135mm high or 360mm wide, managed by a single top clamping unit. Taking performance to new heights, the Matrix/F goes beyond expectations by integrating a fully automatic milling unit featuring a 2-point clamping system and an impressive capacity of 100mm x 400mm x 75mm.

Infeed

Combining the industry standard rack and pinion system and Stromab's unique F series milling system, the range is capable of pushing timber up to 14m and up to 90kg - without additional rollers. Featuring a table incline of 8 degrees, automatic lifting pusher system and a positioning accuracy of 0.4mm, the Stromab Matrix/F powers though your repetitive cutting and milling requirements.

Controller

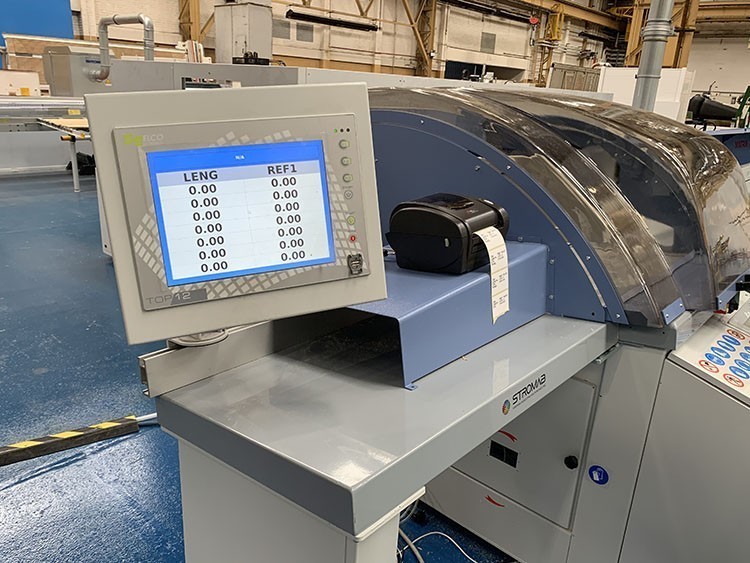

Harnessing the power of an ELCO Top 12 colour touch screen, programming of cutting lists is simple, using the innovative optimisation methods:

BASE with board sequence, max length, or sequence.

OPTI with base features and volume, minimum waste or priority.

DEFECT with complete optimisation, chalk mark detection and timber grading.

By using our office software 'Design2Saw', files can be pre-optimised for the highest yield savings and loaded quickly via USB, reducing operator programming time.

stromab-matrix-f-automatic-fully-programmable-cross-cutting-notching-machine-HCNUl2a91p.jpg
stromab-matrix-f-automatic-fully-programmable-cross-cutting-notching-machine-HCNUl2a91p.jpg
stromab-matrix-f-automatic-fully-programmable-cross-cutting-notching-machine-4-aLsLYGyDKX.jpg
stromab-matrix-f-automatic-fully-programmable-cross-cutting-notching-machine-5-tpGyJ04XwK.jpg
stromab-matrix-f-automatic-fully-programmable-cross-cutting-notching-machine-6-Aq75OeWrw4.jpg

  • 100mm x 400mm x 75mm milling capacity
  • Quick and simple programming
  • 0.4mm accuracy

Specification

Saw Unit

7.5kw saw motor

500mm diameter saw blade

135mm x 120mm cutting height

360mm x 55mm cutting width

Milling Unit

4kW milling motor

280mm diameter block with replaceable knives

400mm stroke

100mm max width (single pass)

75mm depth

Infeed & Outfeed

90m/min positioning speed

0.4mm positioning accuracy

8 degree incline on table

Servo driven rack & pinion

1m outfeed table

Automatic lifting of pusher arm

Controller

Elco TOP12 12" industrial touch screen PC

3 optimisation criteria - longest length, sequence & board sequence
