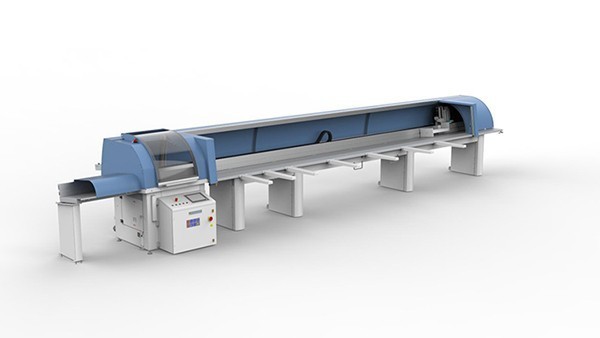

Stromab TR601 MX - Ultra Heavy Duty Automatic Crosscut

Hydraulic upstroke crosscut saw for timber up to 750kg.

About this Product

Saw Unit

Stromab's TR601 MX hydraulic saw unit features a 600mm diameter sawblade, 9kW direct drive saw motor and huge cutting capacity of 660mm wide and 200mm high.

Infeed

The MX model functions like a standard Matrix or CT600 infeed but includes additional built in SAFE modules, photocell barriers and TUV certification. For the increased weight required for proucts such as I-joists, Kerto, Glulam and LVL, Stromab's high performance linear guide system and helical gear system powers this innovative push fed crosscut saw.

Controller

Powered by a state-of-the-art 12" touch screen industrial PC from Beckhoff Germany and TwinCAT automation software, the simple user interface allows four types of data input: Manual Entry / XML / BTL / Excel files. Five programming and optimisation modes are freely selectable - Board Sequence, Priority, Min. Waste, Max. Length & Pre-Optimise* Rotatable 3D piece graphics allow users to visually inspect parts before, during and after they are cut.

*Pre Optimise is available with JJ Smith's Design2Saw office software package. Design2Saw can be used with several machine manufacturers and pre-optimises cutting lists to provide comprehensive data on yields, waste, stock timber and pre-planning production schedules. All cutting list data can be downloaded directly from supported design software packages or enter manually via Excel.

  • Heavy duty 14m capacity
  • Fully programmable
  • Suitable for repetitive cutting of engineered timber

Specification

Saw Unit

12 hp self braking saw motor

600mm diameter saw blade

650mm max cutting width

200mm max cutting height

Pneumatic clamping

Infeed & Outfeed

9 - 14 m infeed capacity with heavy duty profile

Rack and pinion push feed drive systems

Table inclined at 8 degrees

1m outfeed table

Controller

BECKHOFF 12" industrial touch screen PC

Windows based programming software
