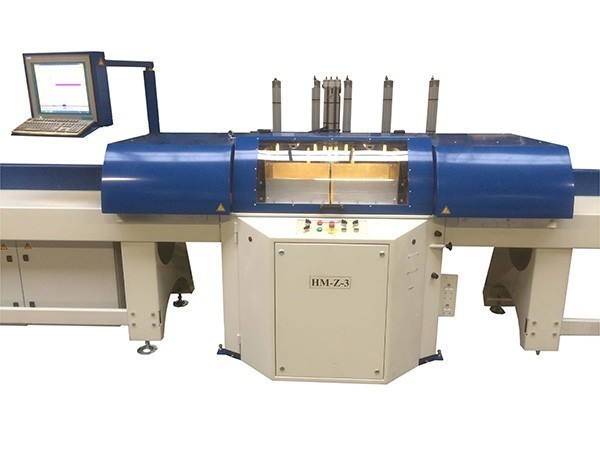

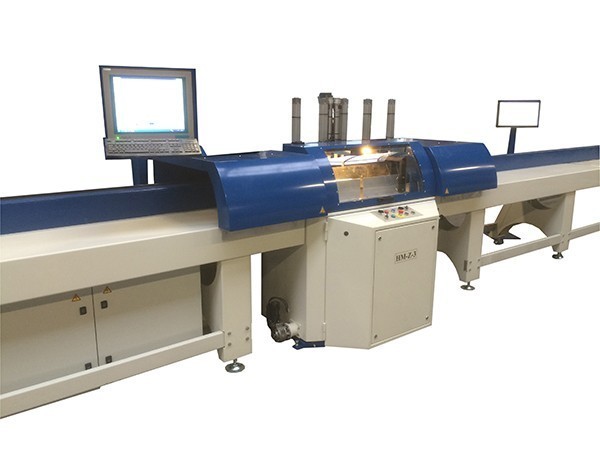

H&M HMZ-3 - Automatic 3-Axis Crosscut Saw

Automatic crosscut saw for the accurate cutting of roof trusses, I-joists, LVL, CLT, and other crucial components.

About this Product

Step into the future of timber cutting with the state-of-the-art completely automatic 3-axis crosscut saw from H&M. Engineered with precision and efficiency in mind, this cutting-edge machine is specifically designed to handle the accurate cutting of roof trusses, I-joists, LVL, CLT, and other crucial components with unparalleled ease.

Experience seamless operation with all movements meticulously controlled by NC technology, ensuring swift and precise cuts every time. Boasting CNC controlled cutting height as standard, this machine provides unmatched versatility and precision in your cutting operations.

Tailored for the demands of the roof truss and timber frame industries, this 3-axis CNC upstroke crosscut saw sets the standard for accuracy and reliability with a 700mm saw blade and 7.5hp motor. Whether you're tackling compound angle cutting or executing long scarf cuts, the HMZ-3 delivers flawless results with every cut due to its large cutting height of up to 250mm and capability to handle even the most intricate cutting tasks.

That's not all. An onboard optimisation package is included which allows cutting lists to be test optimised against timber lengths to generate a pre-optimised cutting list.


  • Completely automatic 3-axis crosscut saw
  • Handles intricate cutting tasks with large cutting height
  • Ideal for the timber frame industry

Specification

Saw Unit

270 degree rotation

7.5 hp motor

700mm blade

250mm maximum sawing height

Maximum noise level 81 dB

Positioning accuracy 0.1 mm

65 m/min maximum speed

AC motor with toothed rack, controlled by a frequency regulator steel guide with adjustable linear bearings

Infeed & Outfeed

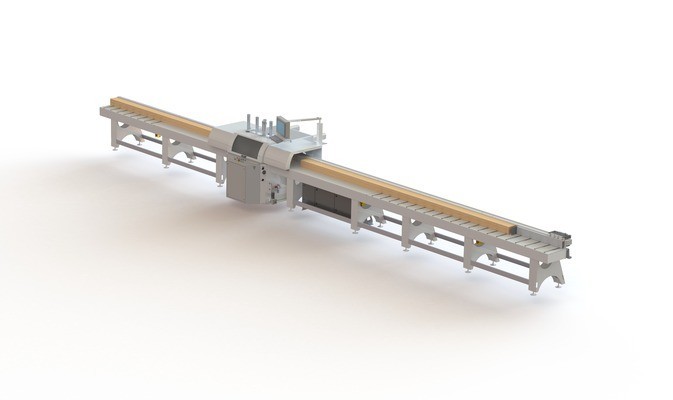

6000mm capacity infeed (overall length 8000mm)

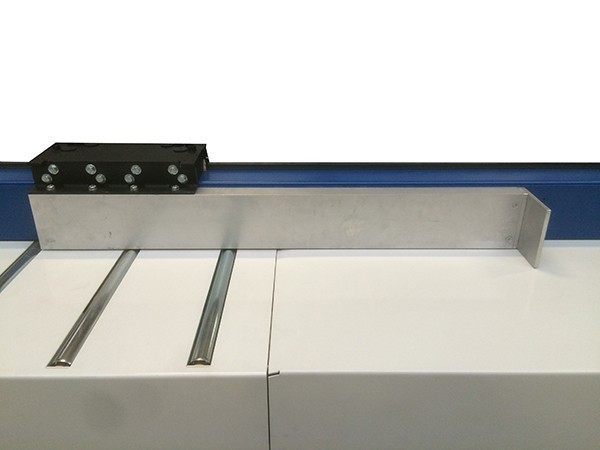

2000mm outfeed table

Controller

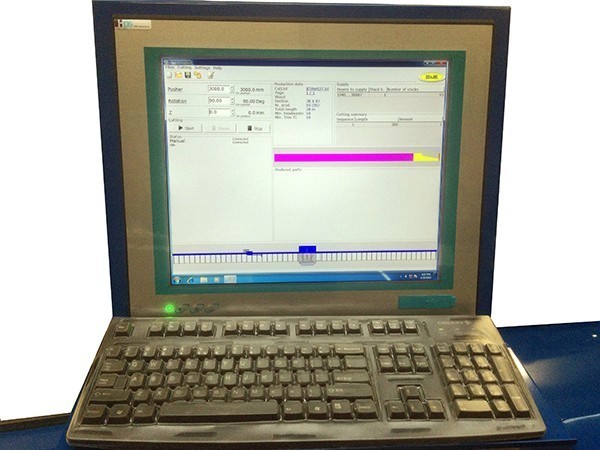

Industrial computer with colour monitor 120 Gb hard disk and USB & ethernet connections

H&M developed software using Windows

Touch screen operation

Connectivity

1 x 220 volts mains socket on an unused, 16 Amp fused group

1 x 400 volts, 32 Amp fused connection point, 3 phase + 0

1 x compressed air connection, minimum 6 Bar

1 x 180mm and 1 x 150mm extraction outlets
