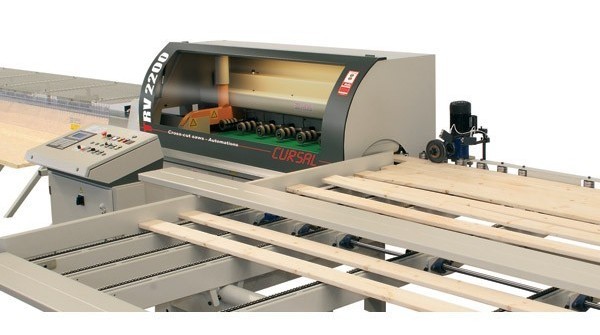

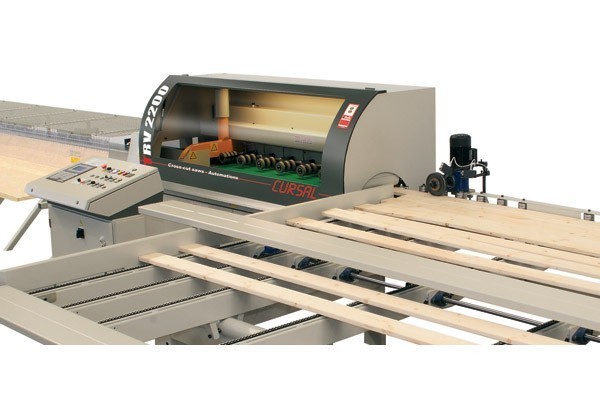

Cursal TRV 2200E - Throughfeed Optimising Crosscut Saw

High speed optimising and defecting throughfeed crosscut saw for precise cutting of fixed and random lengths of timber.

About this Product

Key Features

The Cursal TRV 2200E is a high speed optimising and defecting throughfeed crosscut saw, engineered for rapid and precise cutting of fixed and random lengths of timber. With optimisation capabilities spanning the entire length of the board for a designated section, this machine ensures maximum efficiency in utilising all materials.

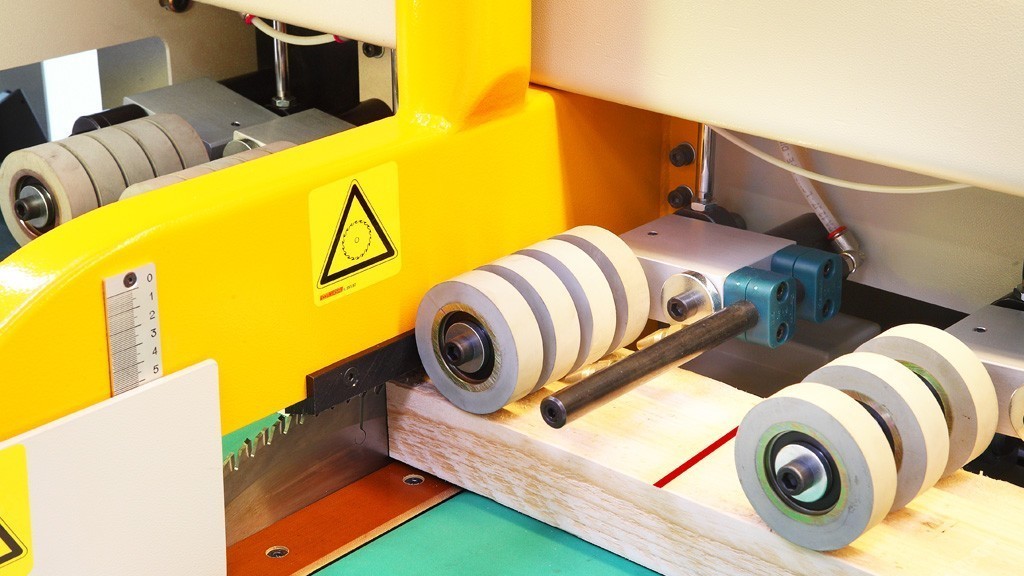

Featuring a motorised upper beam equipped with eight pneumatic pressure rollers on the infeed side of the saw blade and two pressure rollers on the exit side, this machine guarantees optimal material feed and cutting precision. The saw's fast vertical stroke is powered by two synchronised pneumatic cylinders with adjustable speed ranging from 0.1 to 0.7 seconds, ensuring swift and accurate cutting operations.

With a feeding direction from right to left and a board feed speed of up to 280m/min, the Cursal TRV 2200E delivers unparalleled performance and productivity. Explore our range of optional infeed and outfeed equipment to further enhance your workflow and maximise output.

Computer & Programming

Controlled by an industrial computer boasting CNC and HD touch screen technology, this crosscut saw allows for the creation and storage of up to 128 cutting programs, offering unmatched versatility and convenience for your production needs.


  • Rapid cutting of fixed and random lengths
  • Optimisation capabilities
  • Unparalleled performance and output

Specification

Saw Unit

500mm diameter blade

Quick change saw blade with anti-locking nut

8kw installed power

Infeed & Outfeed

Defecting camera

Feed system with brushless motor

Motorised upper feed system with pneumatic pressure wheels adjustable by height

Minimum / maximum infeed length 500mm / 6300mm

Minimum / maximum outfeed length 20 - 3000mm (opt lengths available)

Minimum / maximum timber thickness 8mm / 70mm (opt 85mm)

Minimum / maximum timber width 30mm / 250mm (opt 300mm)

Minimum length of last cut piece 180mm

Working speed examples maximum: tested with boards cross cut section 2500mm2

Cut lengths of 100mm = up to 150 cuts/min

Cut lengths of 250m = up to 125 cuts /min

Average cut length tolerance: Up to 1m = +/- 0.7mm; above 1m = +/- 0.1% of the programmed length

Controller

Separate switch board control panel

128 programs, classified by 16 widths

8 x qualities

Optimisation by priority, length, quantity or value

Waste recovery, also change cutting program automatically when maximum waste is exceeded

Simulator of the optimisation with or without board (virtual simulation)

Possibility to connect to Ethernet port for on-line assistance

Serial connection to external PC and printer
