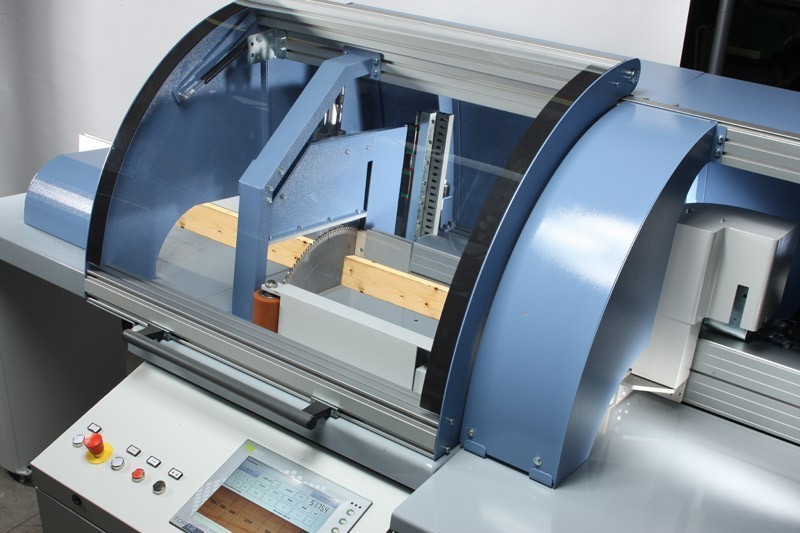

Saw Unit

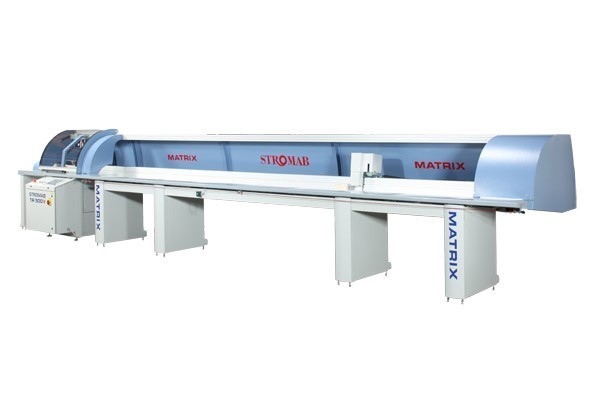

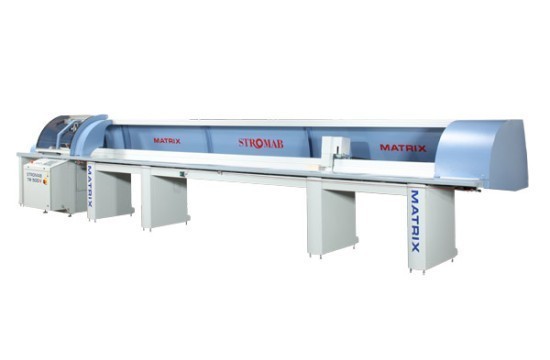

The fast 500 is the latest in Stromab’s range of automatic crosscutting saw units. With a unique high speed upstroke action, the operation can be limited to mm’s over the timber section meaning much higher production output of up to 40% more than standard saw units.

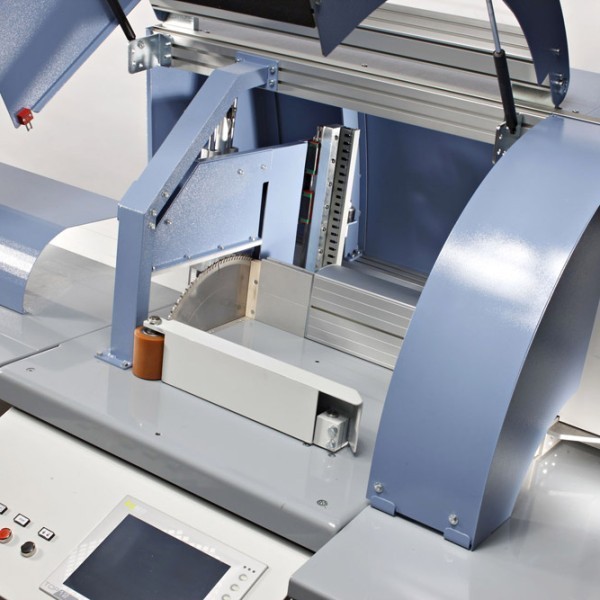

To aid the high speed cutting, the saw unit comes as standard with a pneumatic side pressure and external top pressure roller.
Infeed
Capacity lengths from 3m to 16m with a positioning accuracy of 0.4mm are easily achievable thanks to the industry standard rack and pinion system featured through the Stromab range.
Controller

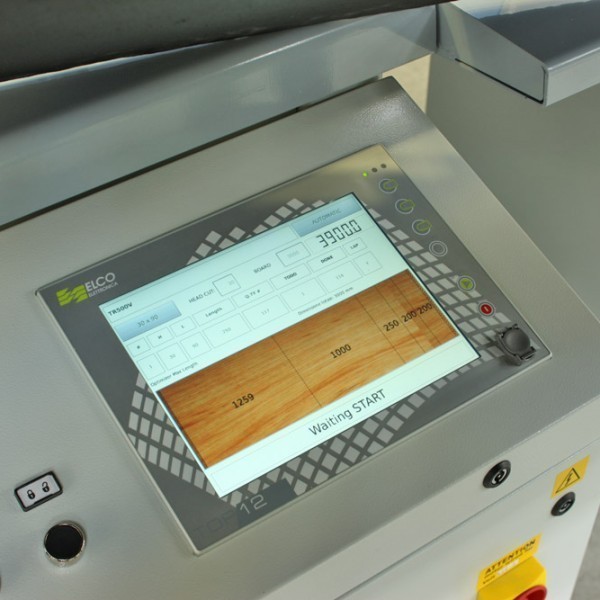

Harnessing the power of an ELCO Top 12 colour touch screen, cutting lists can be programmed easily via the screen using the innovative optimisation methods:
BASE with board sequence, max length, or sequence.
OPTI with base features and volume, minimum waste or priority.
DEFECT with complete optimisation, chalk mark detection and timber grading.
Alternatively, using our office software 'Design2Saw', files can be pre-optimised for the highest yield savings and loaded quickly via USB, reducing operator programming time.
Saw Unit
The fast 500 is the latest in Stromab’s range of automatic crosscutting saw units. With a unique high speed upstroke action, the operation can be limited to mm’s over the timber section meaning much higher production output of up to 40% more than standard saw units.
To aid the high speed cutting, the saw unit comes as standard with a pneumatic side pressure and external top pressure roller.
Infeed
Capacity lengths from 3m to 16m with a positioning accuracy of 0.4mm are easily achievable thanks to the industry standard rack and pinion system featured through the Stromab range.
Controller
Harnessing the power of an ELCO Top 12 colour touch screen, cutting lists can be programmed easily via the screen using the innovative optimisation methods:
BASE with board sequence, max length, or sequence.
OPTI with base features and volume, minimum waste or priority.
DEFECT with complete optimisation, chalk mark detection and timber grading.
Alternatively, using our office software 'Design2Saw', files can be pre-optimised for the highest yield savings and loaded quickly via USB, reducing operator programming time.
Saw Unit
7.5kW saw motor
500mm diameter saw blade
390mm cutting width
150mm cutting height
2 second cutting cycle
Pneumatic side pressure
Pneumatic external top pressure
2 x 100mm extraction outlets
Infeed & Outfeed
90m/min positioning speed
0.4mm positioning accuracy
8 degree incline on table
Servo driven rack & pinion

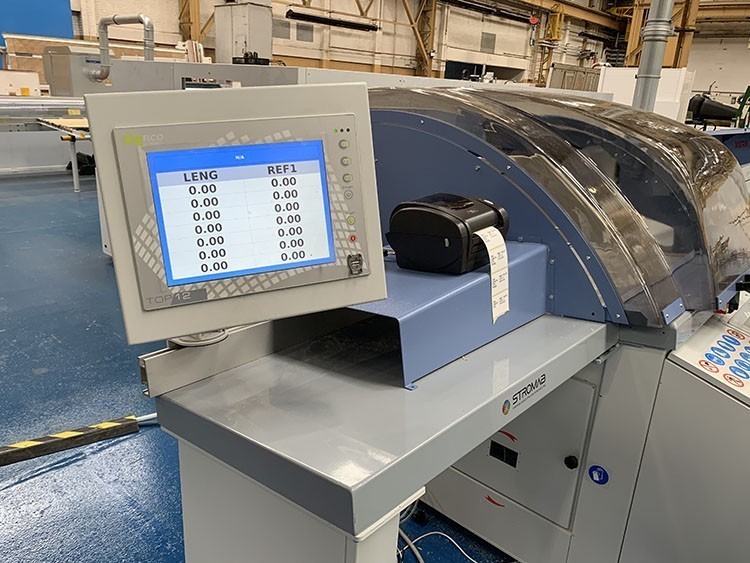

1m outfeed table
Automatic lifting of pusher arm
Controller
Elco TOP12 touch screen controller
Linux Base software
3 optimisation levels
