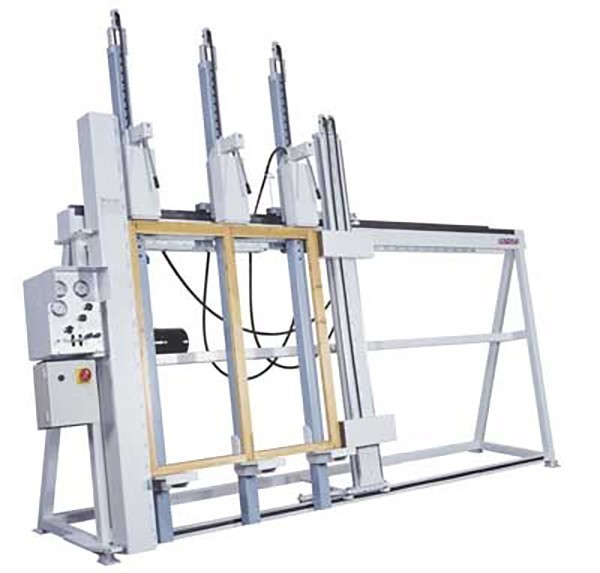

Vertical heavy-duty hydraulic frame clamp for window frames and doors
A vertical hydraulic frame cramp for windows and doors.
The vertical beams easily slide from side to side while the vertical and horizontal clamping cylinders have quick locking mechanisms and counter balance weights for easy and quick setting.
3m x 2m capacityVertical frame cramp with one fixed and one moveable longitudinal pressure beam.3 x Vertical beams each with hydraulic cylinder with 150mm stroke. Each with spring balance unit.2 x Horizontal hydraulic pressure cylinders with 120mm stroke, positioned on moveable longitudinal pressure beam.3 x vertical beams fitted with adjustable lower support platesHydraulic controls for vertical / horizontal clamping pressure and clamping activation positioned on the left hand of the machineHydraulic pump unit with 1.5hp motor.Thrust for each cylinder KG 2500
Extra vertical beam and cylinderExtra horizontal cylinderCouple of spacers for small framesExtra frame length each 500mmExtra frame height each 500mm (up to 2500mm)On / off tap for hyd. cylindersTilting device for inclined frame (each cylinder)

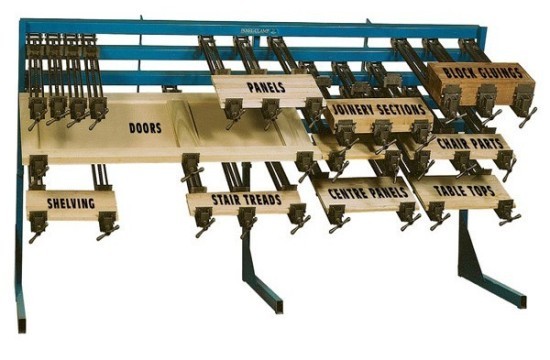

JLT 2.4m & 3.6m clamp racks
Stromab SL1 Hydraulic presses for beams /posts
Taylor 20/5 automatic hydraulic clamp carrier system for solid wood edge and face laminating
6/5m clamp carrier system for solid wood edge face laminating
Taylor 6/2.5 m clamp carrier system
Taylor PVA glue applicator range

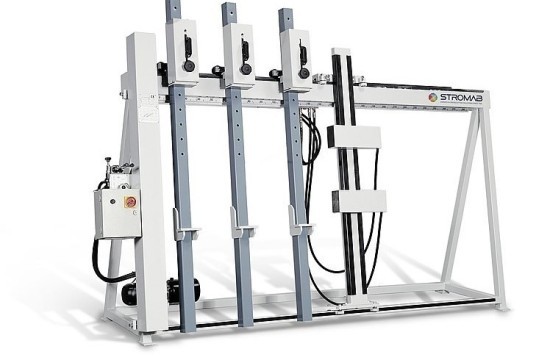

Stromab STH OR-A
