Semi automatic 6 section rotary Clamp Carrier system for solid wood edge and face laminating of joinery sections, stair parts, panels, worktops etc

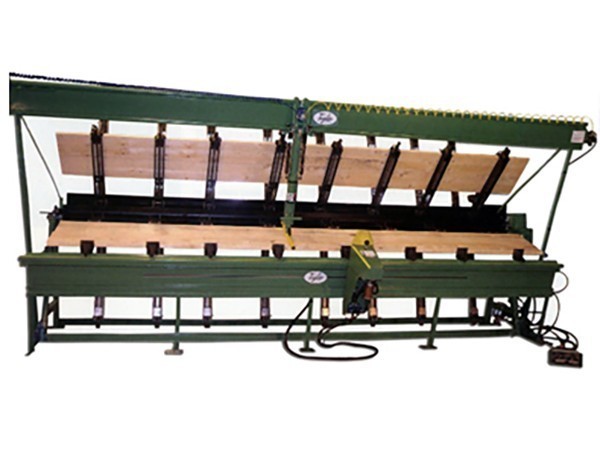

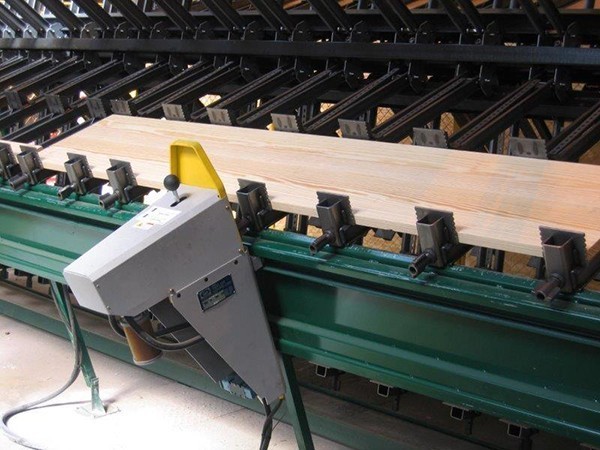

A substantially built simple to operate 6 section rotary Clamp Carrier system for solid wood edge and face laminating. This type of machine is ideal for producing a variety of laminated components such panels, table tops, worktops, block gluings and general furniture parts. Due to the length capacity of 5m (16.5ft) it is particularly suited for laminating stair strings, handrails and joinery sections.
It can also be used for laminating waste material. The patented equaliser clamp arms incorporate a number of important features not found on other type of mechanical clamp that help ensure a quality glue joint is produced. As standard the machine is fitted with a pneumatic semi auto clamp tightener and pneumatic component flattener and air motor rotation.
On request either a hydraulic version can be specified. Machines can also be specified with 16, 20 or 30 working sections depending on the level of productivity required. Prices on request. In addition clamp arms with a max. opening of 1220mm can be specified.
5m (16.5ft) wide clamp carrier frame.72 x 302 type clamp arms with 90mm (3.5) high jaws and 1015 (40") max. opening.(12 clamps per section).2 x 80AA standard duty pneumatic motor drives for rotation.1 x 815A pneumatic semi auto clamp tightener.1 x 817B pneumatic component flattenerFront rest pneumatic operation in / outPneumatic joy stick rotation control - forward / reverse.CE safety perimeter guards.
Above frame / clamp size but with semi auto hydraulic operation and uprated rotary drive motors:
2 x 80S heavy duty hydraulic motor drive for rotation.1 x 80V semi automatic hydraulic clamp tightener.1 x 817b pneumatic component flattener.Pneumatic movement in / out of front rest.3hp hydraulic pack motor.
Rocker Plates 100 to 150mm (4" to 6") for thick stock laminating per pair171B motorised 'doctor roll' roller PVA glue spreader 330mm (12") wide with 3m (10ft) infeed.Conveyorised doctor roll PVA glue applicator 330mm (13") wide with 3.6m (12ft) infeed and 4.9m (16ft outfeed). Outfeed control with light sensor to automatically stop conveyor when end of timber detected.Powered hold down roller for conveyorised glue app. for face gluingAdditional 302 type clamp arms 1015mm (40") opening.Inside Hold down bars for thin panels (less than approx 19mm). each.(Price for options based on order / supply with main machine).Moving up to 16, 20 or 30 working sections - price on request.
JLT 2.4m & 3.6m clamp racks
Stromab SL1 Hydraulic presses for beams /posts
Stromab STH special vertical hydraulic clamp
Taylor 20/5 automatic hydraulic clamp carrier system for solid wood edge and face laminating
Taylor 6/2.5 m clamp carrier system
Taylor PVA glue applicator range
Stromab STH OR-A
