Taylor 6/2.5 m clamp carrier system

Standard 2.4m capacity pneumatic rotary clamp carrier for solid wood edge and face laminating

  • Versatile
  • Reliable
  • Pneumatic Operation

About this Product

A versatile 6 section clamping machine specifically designed for solid wood edge and face laminating, the Clamp Carrier is ideal for producing a variety of components such as panels, table tops, block gluings, joinery sections and stair parts.

The patented 'equaliser' clamp arms incorporate a number of important features not found on other types of mechanical clamp that help ensure a quality glue joint is produced. As standard the machine is equipped with a pneumatic clamp tightener / loosener, pneumatic component flattener and air motor drive for rotation. On request the machine can be specified with a working width of 3.1m and also with 12 working sections.

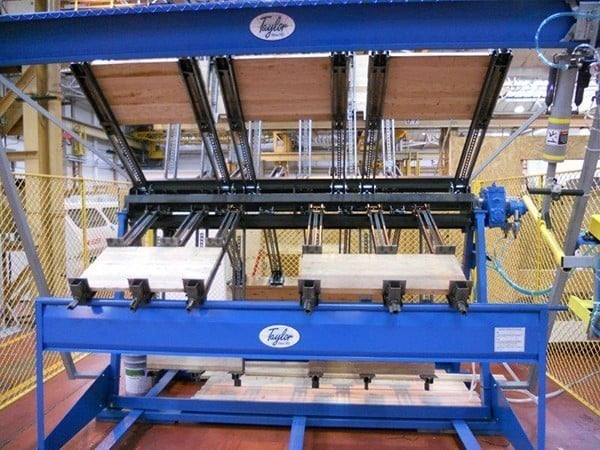

Taylor 6 25m Clamp Carrier System For Solid Wood Edge Face Laminating 4
Taylor 6 25m Clamp Carrier System For Solid Wood Edge Face Laminating 4
Taylor 6 25m Clamp Carrier System For Solid Wood Edge Face Laminating 5

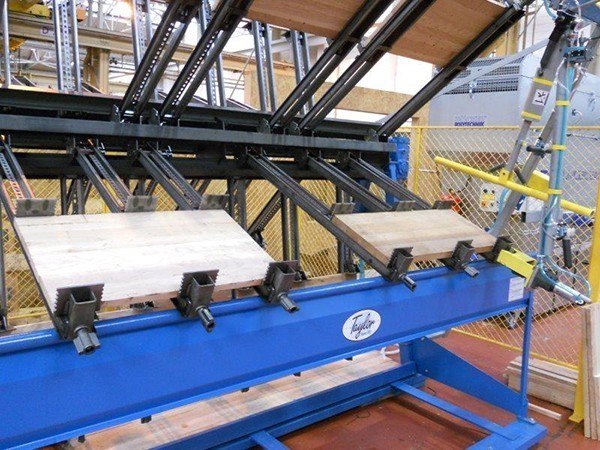

Taylor 6 25m Clamp Carrier System For Solid Wood Edge Face Laminating 2
Specification

2.5m (8.5ft wide) 6 section frame.
36 x 302 type clamp arms with 90mm (3.5") high jaws and 1015mm (40") max. opening.
(6 clamps per section).
1 x 80U type swing style pneumatic clamp tightener and component flattener with push button operation.
1 x 80AA pneumatic motor drive rotation.
Front rest - manually operated.

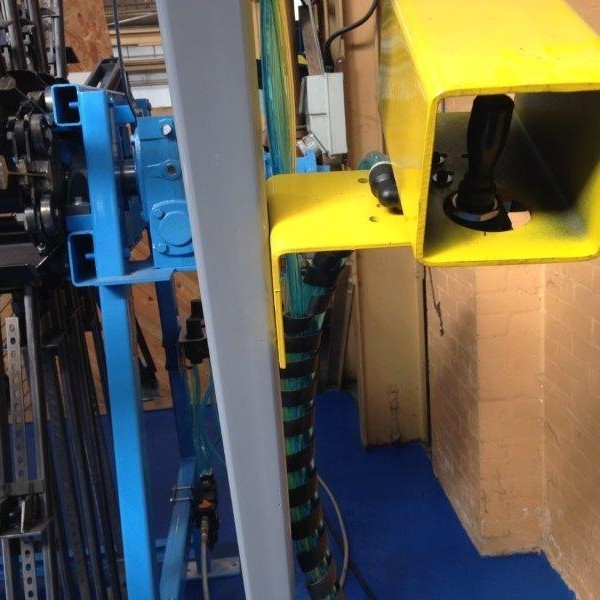

Pneumatic joy stick control for rotation / forward reverse.
CE safety perimeter guards to sides / rear
