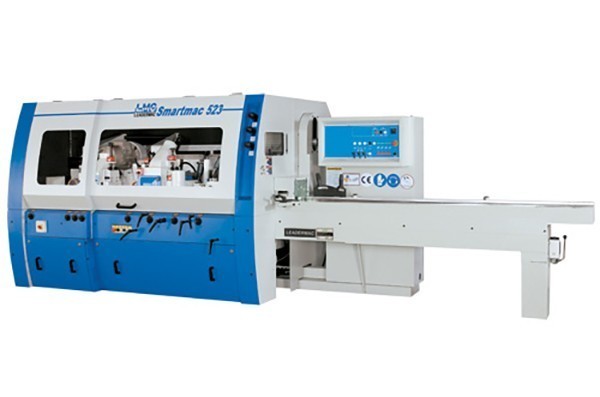

Leadermac LMC523S 5 head planer moulder

A heavy duty 5 head, through feed planing and moulding machine with pre-straightening table

  • Heavy duty
  • Cast iron frame
  • Quick set up
Contact A Specialist Add to Quote
Leadermac

About this Product

A heavy duty, cast iron construction, 5 head pre-straightening planer moulder that has a high standard specification. Features include chrome bed plates, driven bed rollers, full carden drive feed system, pneumatic pressures centralised lubrication system and electronic setting to front side head / top head and beam.

LMC523S 5 Head Planer Moulder
LMC523S 5 Head Planer Moulder
Contact A Specialist
Phone icon +44 (0)151 548 9000 Email icon sales@jjsmith.co.uk
Specification
  • Capacities
  • Maximum size of timber admitted width 15 - 230 mm
    Maximum size of timber admitted thickness 10 - 125 mm
  • Head Sequence & Motor Powers
  • First bottom 5.5 kw/7.5 hp
    Fence side } 7.5 kw/10 hp
    Near side }
    Top 7.5 kw/10 hp
    Second Bottom 7.5 kw/10hp
  • Cutting Circles
  • First bottom head 125 mm -160 mm maximum
    Fence side head 112 mm -180 mm maximum
    Near side head 112 mm -180 mm maximum
    Top head 112 mm - 200 mm maximum
    Second bottom head 112 mm - 200 mm maximum
  • Feed System
  • Maintenance free full cardan shaft drive to feedworks for balanced drive performance, with individual worm reduction gear box to each feed roller station
  • Feed roller diameter 140 mm
  • Infinitely variable feed speeds via inverter with LED readout 6 – 24 metres per minute
  • Feed motor power 3.0 kw/4.0 hp
  • Top infeed rollers before first bottom head with pneumatic rise and fall by switch
  • Intermediate top driven feed roller station with pneumatic loading for feeding minimum 200 mm length workpieces
  • Steel feed rollers up to top head are hardened and chromed to resist wear and to prevent chips sticking to them
  • Polyurethane feed rollers after top head
  • 1 unit infeed powered serrated bed roller before first bottom head
  • 1 unit powered outfeed driven bed roller
  • Pneumatic pressures to feed roller loading with 2 no pressure regulator controls
  • Powered rise and fall to feed beam with .75 kw/1 hp motor
  • All feed rollers and pressures move with top beam rise and fall, including safety switches at extreme points
  • Inch forward and reverse to feed with duplicate control at top head position for fast and easy setting
    Features
  • - Siemens electro magnetically braked motors
  •  Edge reference straightening system
  • Double side pressure unit opposite fence side head moving with near side head
  • Adjustable side guides after near side head
  • Spring loaded chipbreaker to top head with vertical screw adjustment and mechanical digital readout
  • Pad pressure after top head with vertical screw adjustment and mechanical digital readout
  • 2000 mm pre-straightening infeed table with fence each with10 mm adjustment
  • 25 mm high fences
  • 40 mm diameter spindles belt driven, with spindle speed of 6000 rpm
  • All spindles have horizontal and vertical adjustment, with mechanical digital readouts for fast and accurate setting, except first bottom head which has vertical only
  • High precision spindle units
    - All bed plates and fences have 0.3mm hardened chrome HRC at 60o
    - Manual bed lubrication system
    - One piece cast iron heavy duty main frame with optimum vibration absorption
    - Centralised lubrication system to all main slides
    - Safety interlock at infeed to prevent feeding oversized material
    - Lift up sound and safety enclosure with gas struts, including internal lighting and safety interlocks, with noise absorbing material and rear access panel with interlock
  • Thin side guides after near side head
    - Independent locking to all spindle adjustments
    - Main electrical control panel with clearly marked and in your field of vision, remote control for setting positioned by top spindle
    - Timed interlock to lift up enclosure
    - Dust hoods 125mm dia oulet size.
  •  Toolkit
    - Instruction and maintenance manual, electrical diagram and parts list.
    - Machine supplied with electrics arranged 3/50/415 v
    - Machine conforms to CE specification
  • Options Included
  • ATS Electronic positioning by keypad control and motorised adjustment to near side spindle horizontal movement with dual LED measurement display for tool compenstation to give radius and actual cutting sizes. Type REC-705B
  • ATS Electronic positioning by keypad control and motorised adjustment to top spindle vertical movement with LED measurement display for tool compensation to give radius and actual cutting sizes . Type REC 705B. Additional readout TYPE REC 720 positioned at first top head.
  • Toolings
  • 2 no 230 mm long 4 knife circular planing Centrolock cutterblocks complete with quick change HSS knives
  • 2 no 125 mm long 4 knife circular planing Centrolock cutterblocks complete with quick change HSS knives
  • 1 no TCT Centrolock edge reference cutter
