Leadermac LMC623C 6 head planer moulder

A heavy duty 6 head, through feed planing and moulding machine with pre-straightening table

  • Heavy duty
  • Cast iron frame
  • Quick set up
Leadermac

About this Product

A heavy duty, cast iron construction, 6 head pre-straightening planer moulder that has a high standard specification. Features include chrome bed plates, driven bed rollers, full carden drive feed system, pneumatic pressures centralised lubrication system and electronic setting to front side head / top head and beam.

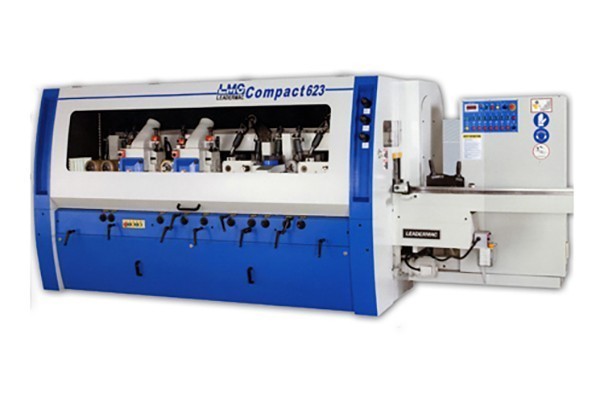

LMC623C 6 Head Planer Moulder Edit
LMC623C 6 Head Planer Moulder Edit
Specification
  • Maximum size of timber admitted width 15 – 230 mm
  • Maximum size of timber admitted thickness 10 – 150 mm
  • Head Sequence & Motor Powers
  • First bottom 5.5 kw/ 7.5 hp
  • Fence side 5.5 kw/ 7.5 hp
  • Near side 5.5 kw/ 7.5 hp
  • First top 7.5 kw/10.0 hp
  • Second top 7.5 kw/10.0 hp
  • Second bottom 7.5 kw/10.0 hp
  • Cutting Circles
  • First bottom head 125 mm 160 mm maximum
  • Fence side head 112 mm 200 mm maximum
  • Near side head 112 mm 200 mm maximum
  • Top heads 100 mm 200 mm maximum
  • Second bottom head 100 mm 200 mm maximum
  • Feed System
  • Maintenance free full cardan shaft drive to feedworks for balanced drive performance, with individual worm reduction gear box to each feed roller station
  • Feed roller diameter 140 mm
  • Infinitely variable feed speeds via inveter with led display 6 – 24 metres per minute
  • Feed motor power 3.75 kw/5 hp
  • Steel feed rollers up to top head are hardened and chromed to resist wear and to prevent chips sticking to them
  • Polyurethane feed rollers after top head
  • Top infeed rollers before first bottom head with pneumatic rise and fall by switch
  • 1 unit infeed driven serrated full width bed roller
  • 1 unit full width driven plain bed roller between first and second top heads
  • 1 unit full width driven plain out feed bed roller
  • Intermediate top driven feed roller station with pneumatic loading
  • for feeding minimum 200 mm length workpieces
  • Pneumatic pressures to feed roller loading with 3 no pressure regulator controls
  • Powered rise and fall to feed beam with .75 kw/1 hp motor
  • All feed rollers and pressures move with top beam rise and fall, including safety switches at extreme points
  • Inch forward and reverse to feed with duplicate control at top head position for fast and easy setting
  • Features
  • Siemens electro magnetically braked motors
  • Edge reference straightening system
  • 25 mm high fences
  • Telescopic bed plates between vertical spindles
  • Double side pressure unit opposite fence side head moving with near side head
  • Adjustable side guides after near side head
  • Chip breaker before top heads with vertical screw adjustment and mechanical digital readout
  • Pad pressure after top heads with vertical screw adjustment and mechanical digital readouts
  • 2000 mm pre-straightening infeed table with fence each 10 mm adjustment
  • 40 mm diameter spindles belt driven, with spindle speed of 6000 rpm
  • All spindles have horizontal and vertical adjustment, with mechanical digital readouts for fast and accurate setting, except first bottom head which has vertical only
  • Independent manual vertical adjustment to top head
  • High precision spindle units
  • All bed plates and fences have 0.3 mm hardened chrome HRC at 60o
  • Manual bed lubrication system
  • One piece cast iron heavy duty main frame with optimum vibration absorption
  • Centralised lubrication system to all main slides
  • Safety interlock at infeed to prevent feeding oversized material
  • Lift up sound and safety enclosure including internal lighting and safety interlocks
  • Machine supplied with 1 set (of 6) 4 knife circular planing cutterblocks complete with HSS knives
  • (First bottom spiral planing block, Z6, with reversable knives.
  • Timed interlock to lift up enclosure
  • Dust extraction hoods outlet diameter 125 mm
  • Toolkit
  • Instruction and maintenance manual, electrical diagram and parts list.
  • Machine supplied with electrics arranged 3/50/415 v
  • Machine conforms to CE specification
  • Options Included
  • Inverter brakes for 6 spindles
  • Set of 6 planing blocks
  • Electronic positioning by keypad control and motorised adjustment
  • to near side spindle horizontal movement with LED measurement display - Type DP-525
  • Electronic positioning by keypad control and motorised adjustmentto top spindle vertical movement with LED measurement display - Type DP-525
