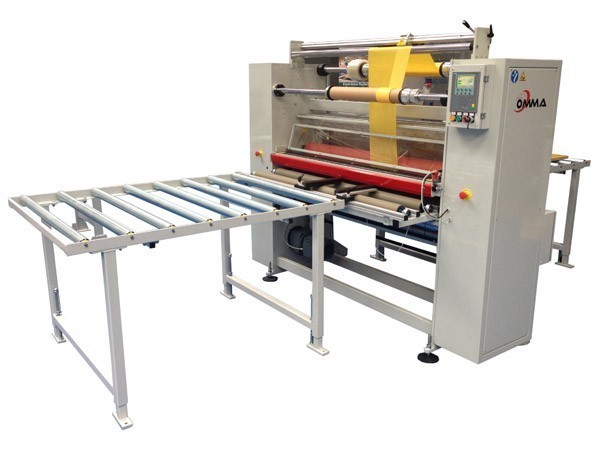

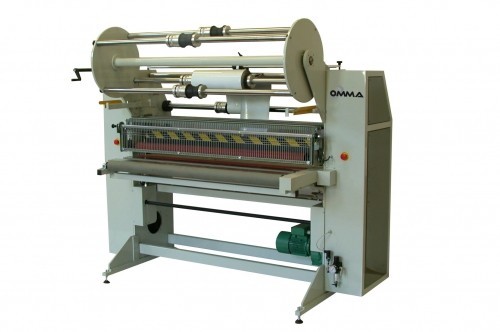

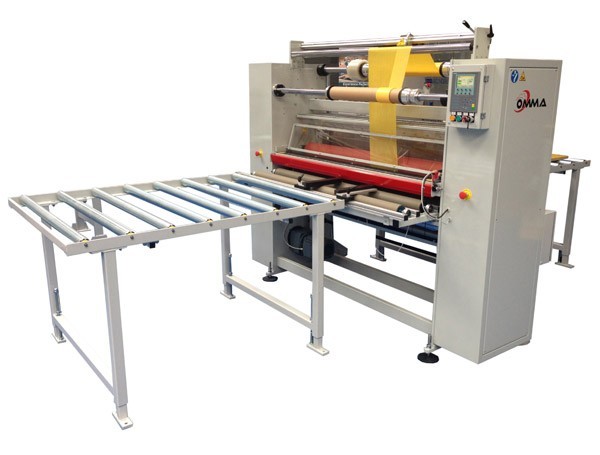

This model of machine has been specifically designed for the application of protective films to a wide range of flat materials such as panels, laminates, high gloss panels, glass, aluminium, painted timber, plastic etc. The film once applied protects the material from accidental scratching / marking. The machine can be configured with various options to suit customers individual production requirements, such as infeed and outfeed roller conveyors and rotating film carousel
This model of machine has been specifically designed for the application of protective films to a wide range of flat materials such as panels, laminates, high gloss panels, glass, aluminium, painted timber, plastic etc. The film once applied protects the material from accidental scratching / marking. The machine can be configured with various options to suit customers individual production requirements, such as infeed and outfeed roller conveyors and rotating film carousel
Max working width 1300mm
Max working thickness 80mm (higher on request)
Adjustable feed speeds 4 - 18m/min
Dia of laminating rollers 150mm
Infeed / outfeed idle rollers 300mm
Working height 905mm

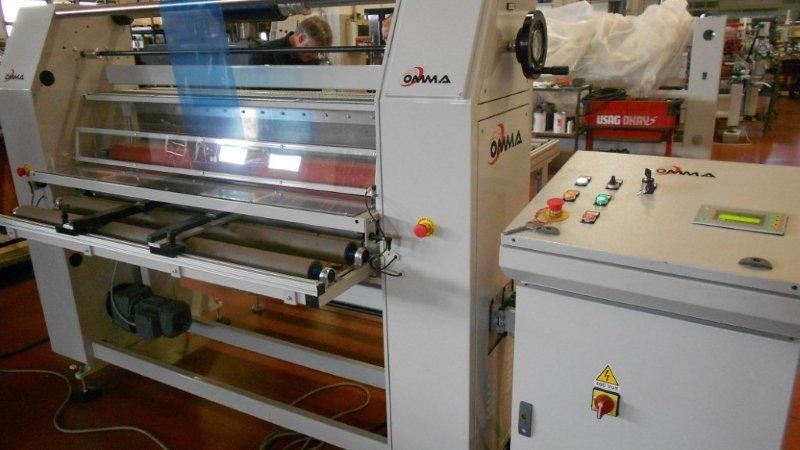

Separate control cabinet
Max. dia of film roll 300mm
Internal dia of film roll 76mm
⠀
Technical equipment
Automatic transversal cutting of the film by electro pneumatic cutting guillotine. Cutting position is controlled by a programmable electronic positioner connected to an encoder. Cutting precision is about 8/10mm over panel size. Cutting time approx 1 sec.

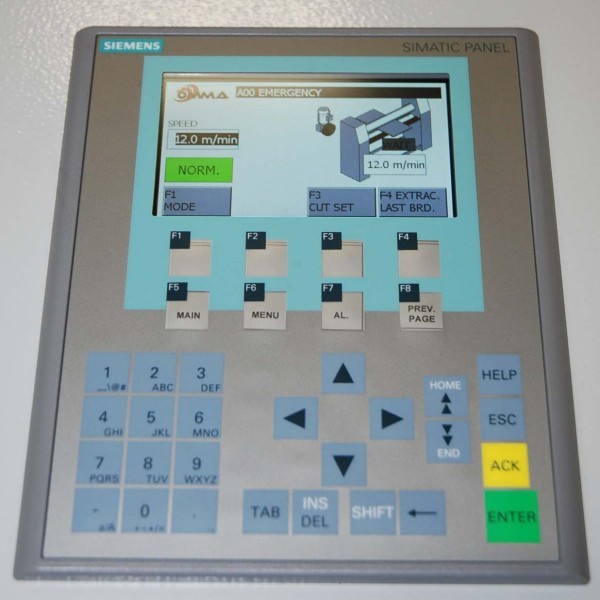

Multi function PLC display for machine program with diagnostic
Laminating rollers with special anti-adhesive rubber coating
Thickness control via hand wheel and mechanical readout with 1/10mm precision
Twin guide on infeed / outfeed for panel alignment
Geared motors controlled by electronic units for continuous variable feed speed
Optical safety device
CE safety equipment
