Sarmax Apache Timber Protection Coating Machines

For the simple, quick and effective application of primer, stains and paints on to timber components

  • Various configurations
  • Even application
  • Quick clean up

About this Product

For the simple, quick and effective application of primer, stains and paints on to timber components. For companies who manufacture outdoor products such as garden furniture, log cabins, sheds, summerhouses, gazebo's, children's play equipment etc, there is generally a requirement at some stage of the manufacturing process to apply a protective primer, stain or decorative paint to either the individual components or the finished structure.

For many this is a time consuming, messy job using a dip tank, manual application by brush or spray gun. These methods of application usually result in an uneven coating of the liquid protection and high levels of waste. To help alleviate these problems specialist manufacturer Sarmax have a range of machines dedicated for this task.

The popular Apache series have a working capacity from 40 x 200mm up to 900 x 300mm meaning even large oak beams can be accommodated. The general method of operation is that the piece is fed in to the machine by driven rollers, with the liquid protection sprayed on in the first compartment. Then thanks to a combination of air blowers and brushing units the liquid is evenly spread on either 2 faces or all 4 faces depending on the model specified.

The excess liquid that has been removed as a result of this process drains through a filter, back in to the tank and is re-used. For cleaning the brushing units are removed in a matter of seconds, while the optional Teflon coating means the internal compartments are easily cleaned with water. To change from one colour stain to another only takes 5 to 10 minutes.

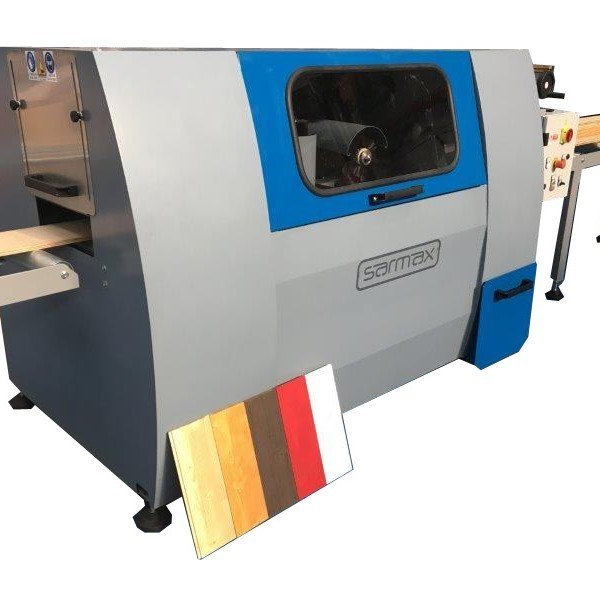

Sarmax Apache Protection Coating Machines

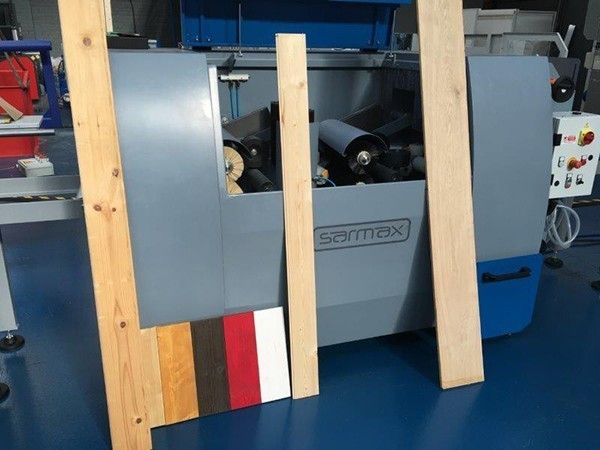

Sarmax Apache Protection Coating Machines
Sarmax Apache Timber Protection Coating Machines
Specification
  • APACHE 3 model

Max workpiece width 30cm
Max workpiece thickness 5cm
Min workpiece length 80cm
Pneumatic auto spraying pump
Brush dia 16cm
3 off brushes - 1 bottom and 2 top
Variable feeding speed through inverter 10-60 m/min
Motorised roller dia 80mm - 3 off
Blowing units for tongue / groove board cleaning - 1 x left / 1 x right

  • APACHE 5 model

Max workpiece width 30cm
Max workpiece thickness 15cm
Min workpiece length 80cm
Pneumatic auto spraying pump
Brush dia 16cm
5 off brushes - 2 top, 1 bottom, 1 left, 1 right
Variable feeding speed through inverter 10-60 m/min
Motorised roller dia 80mm - 2 off

  • APACHE 7 model

Max workpiece width 30cm
Max workpiece thickness 32cm
Min workpiece length 100cm
Pneumatic auto spraying pump
Brush dia 16cm
5 off brushes - 2 top, 2 bottom, 1 left, 1 right
Variable feeding speed through inverter 10-60 m/min
Motorised roller dia 80mm - 4 off
