Sarmax Q Base Timber Protection Coating Machine

For the simple, quick and effective application of primer, stains and paints on to timber components

  • Application to profiled timber
  • Even application
  • Reduce waste

About this Product

For the simple, quick and effective application of primer, stains and paints on to timber components. For companies who manufacture outdoor products such as garden furniture, log cabins, sheds, summerhouses, gazebo's, children's play equipment etc, there is generally a requirement at some stage of the manufacturing process to apply a protective primer, stain or decorative paint to either the individual components or the finished structure. For many this is a time consuming, messy job using a dip tank, manual application by brush or spray gun. These methods of application usually result in an uneven coating of the liquid protection and high levels of waste. To help alleviate these problems specialist manufacturer Sarmax have a range of machines dedicated for this task.

The Apache Q base machine has been designed for all types of profiled timber, which has already been machined, with tenons / grooves / holes / mortises rebates etc etc where a standard machine with brushes cannot touch all surfaces. Thanks to a set of 8 air blowers the Q base assures a perfect application coverage and finishing of all types of liquid.

The machine is equipped with 5 air blades with adjustable positions literaly blow away any excess of primer material from the workpiece giving a super grade of finishing.
With a V type workpiece chain feeder this ensuresa minimum 2 position contact between the workpiece and feeding unit.

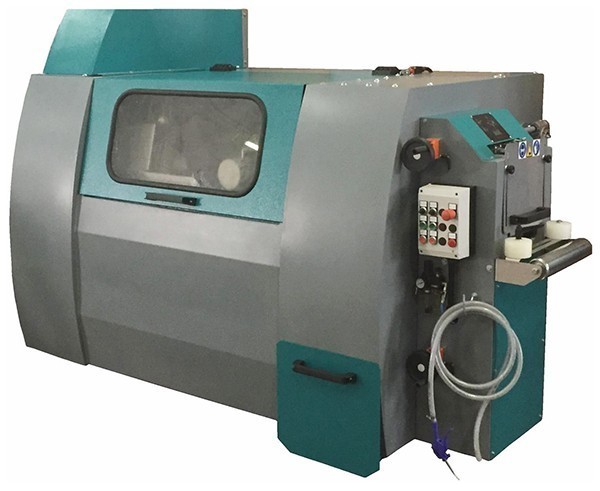

Sarmax Q Base Timber Protection Coating Machine 1
Sarmax Q Base Timber Protection Coating Machine 1
  • Apache Q Base Machine
  • Max workpiece width 20cm
  • Maxworkpiece thickness 15cm
  • Min workpiece length 30cm
  • Number of spraying nozzles 8
  • Number of Air Blades 5
  • Pneumatic spray pump
  • Adjustable feed speed by inverter 5 - 25m/min
  • Air consumption 600lt / min

Air working pressure 5 bar
