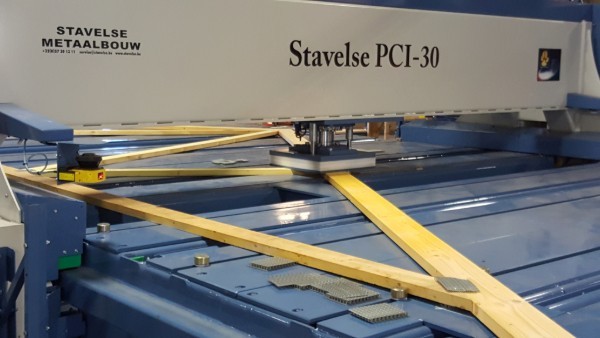

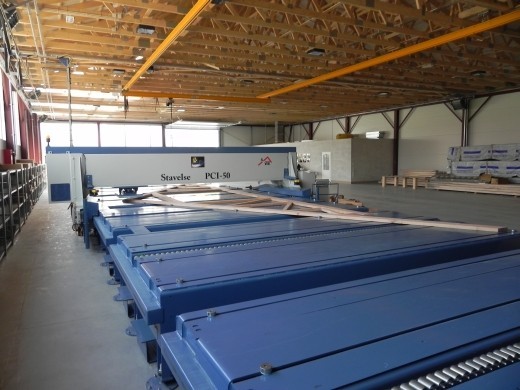

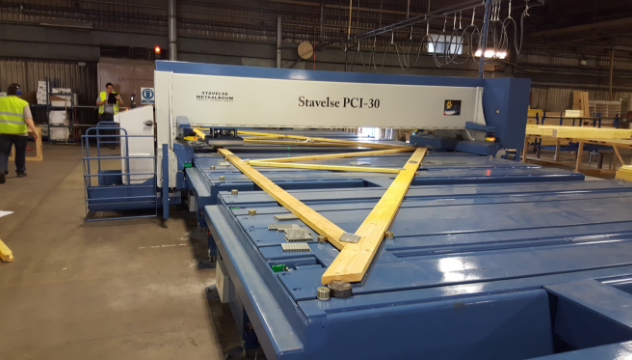

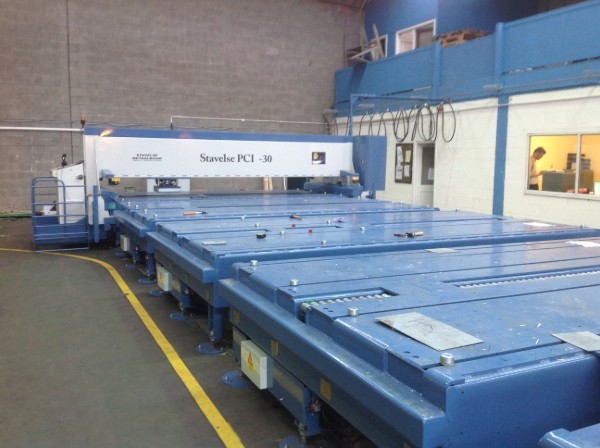

The Stavelse press PCI is a machine for the prefabrication of all types of roof trusses.
The PCI press has been extensively optimised in recent years and thanks to the servo motors, frequency systems and touchscreen and is equipped with the most modern technologies.
The PCI press can be operated manually, with “touch-and-go” or with DXF files. The DXF drawings of the complete truss are displayed on the screen and, if desired, it is possible to program additional points. The PCI press can easily be connected to the internet. This enables us to be connected to the press, to read customer’s programs and to help in a fast and efficient way.
Due to the solid and stable design, the precision, speed and power are exceptional.
The Stavelse press PCI is a machine for the prefabrication of all types of roof trusses.
The PCI press has been extensively optimised in recent years and thanks to the servo motors, frequency systems and touchscreen and is equipped with the most modern technologies.
The PCI press can be operated manually, with “touch-and-go” or with DXF files. The DXF drawings of the complete truss are displayed on the screen and, if desired, it is possible to program additional points. The PCI press can easily be connected to the internet. This enables us to be connected to the press, to read customer’s programs and to help in a fast and efficient way.
Due to the solid and stable design, the precision, speed and power are exceptional.
Technical Information
Press force: 50 tons
Working range:
x-axis : 4200mm
y-axis : desired length, extension possible by elements of 2400mm + 400MM (between tables).
Axe-z : 100mm
Maximum Speed
X : 800mm/ sec
Y : 1000mm/ sec
CNC Control
Schneider Electric : M251
Screen : IPC15’’
Dimensions and Weight
Length : Depending on the number of tables (2400mm + 400mm)
Width : 6710mm
Height : 2030mm
Weight of each table : 6150 kg
Weight of the press : 4800 kg
