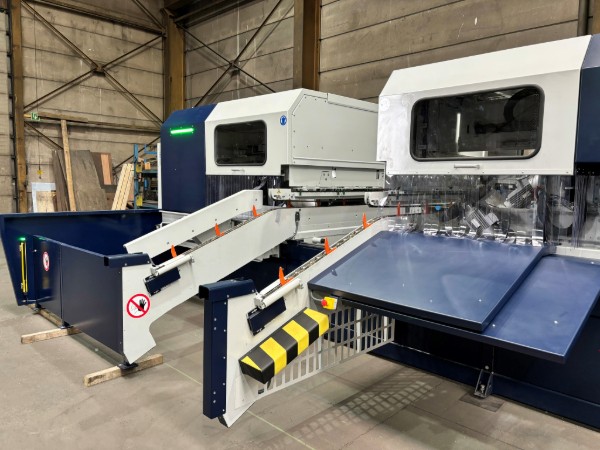

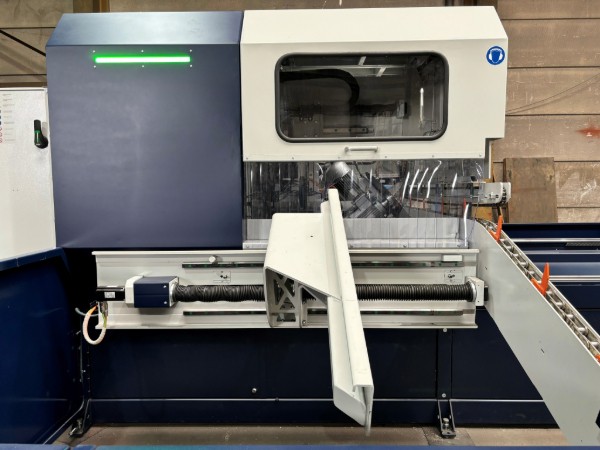

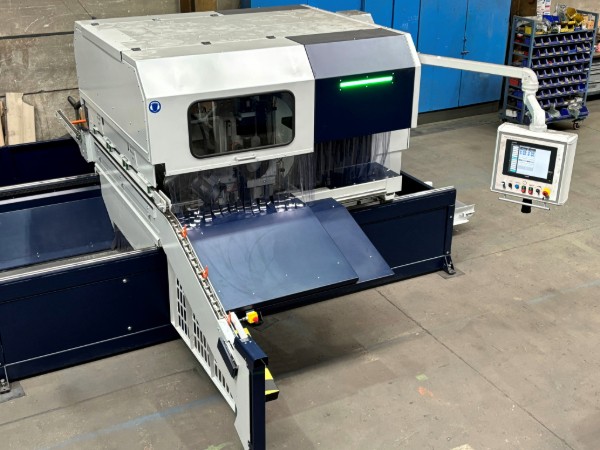

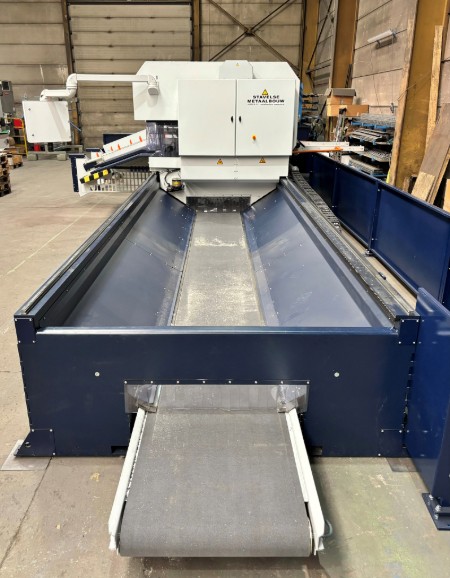

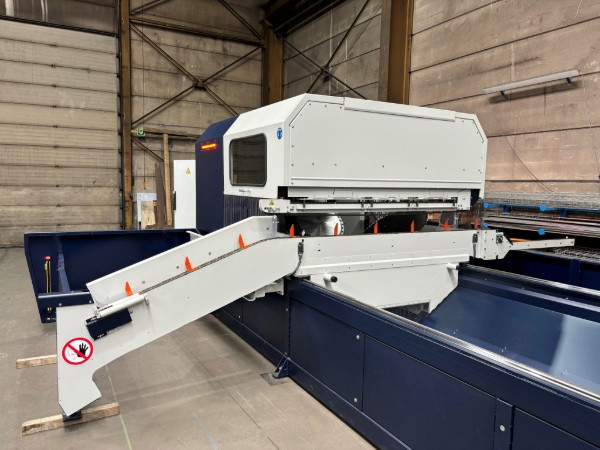

Based on the design of the DePauw Quadricut, Stavelse Unicut 6500 4 blade sawing machine is specifically designed for roof truss manufacturing:

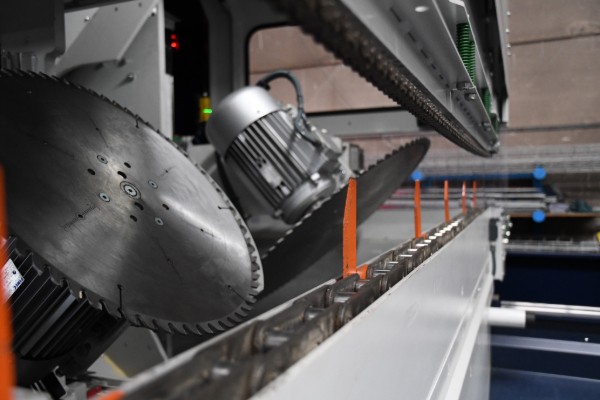

4 saw blades - allowing 4 sawing operations to be performed simultaneously
CNC positioning of saw blades using .dxfs
Speed of positioning
The Unicut 6500 has a sturdy and robust design, allowing high positioning and input speed, and high accuracy. The Unicut is further optimised with the following features:
Safety
Door security
Emergency stops

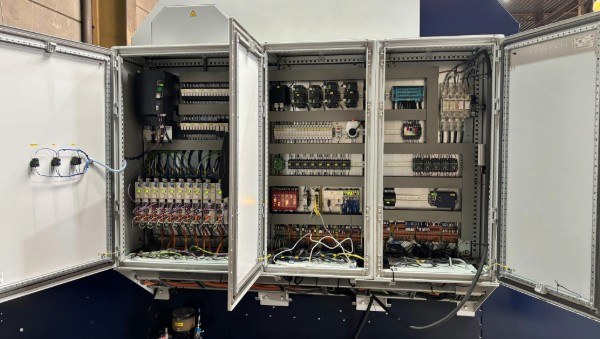

Safety PLC
Anti-collision bumper

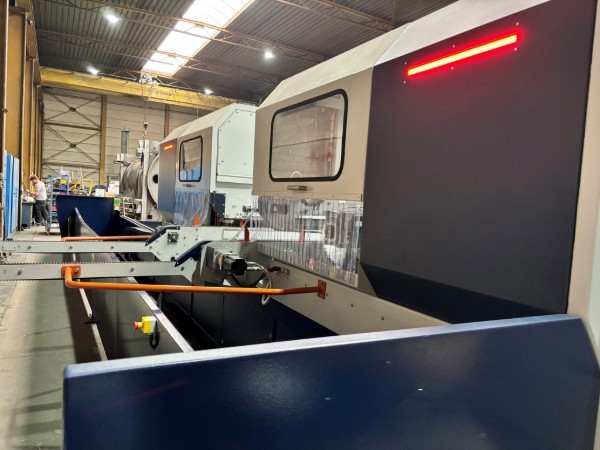

Shielding with safety switch front and rear

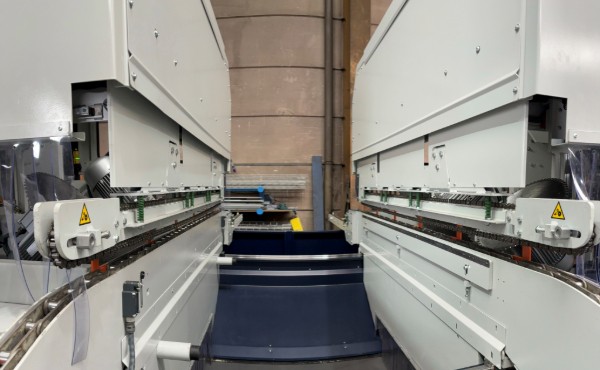

Sliding front panels to ensure blade shielding
Productivity

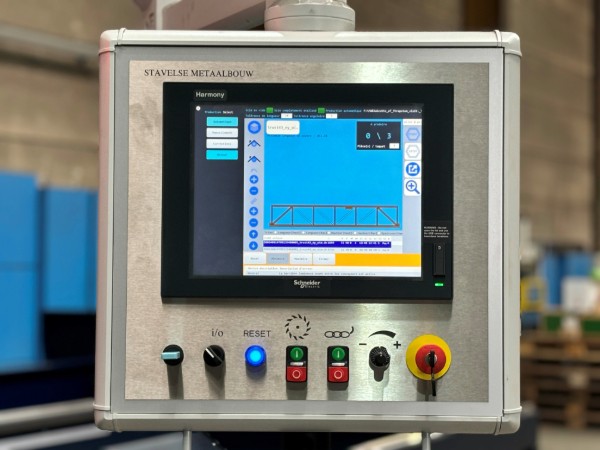

Automatic DXF readout and manual input possible
Linear guidance on all axis leading to stability and high precision
A solid and stable construction enable high speed precision manufacturing
Maintenance
Maintenance areas are now more accessible
Doors prevent panel disassembly
Improved protection of the critical parts of the machine
Specific signals to indicate maintenance tasks
Standard components that are available worldwide
Roof truss manufacturers choose the Stavelse Unicut 4-blade sawing machine due to its capabilities of processing up to 40 planks per minute.
Based on the design of the DePauw Quadricut, Stavelse Unicut 6500 4 blade sawing machine is specifically designed for roof truss manufacturing:
4 saw blades - allowing 4 sawing operations to be performed simultaneously
CNC positioning of saw blades using .dxfs
Speed of positioning
The Unicut 6500 has a sturdy and robust design, allowing high positioning and input speed, and high accuracy. The Unicut is further optimised with the following features:
Safety
Door security
Emergency stops
Safety PLC
Anti-collision bumper
Shielding with safety switch front and rear
Sliding front panels to ensure blade shielding
Productivity
Automatic DXF readout and manual input possible
Linear guidance on all axis leading to stability and high precision
A solid and stable construction enable high speed precision manufacturing
Maintenance
Maintenance areas are now more accessible
Doors prevent panel disassembly
Improved protection of the critical parts of the machine
Specific signals to indicate maintenance tasks
Standard components that are available worldwide
Roof truss manufacturers choose the Stavelse Unicut 4-blade sawing machine due to its capabilities of processing up to 40 planks per minute.
Number of saw blades - 4
Front saw blade diameter - 500 mm
Front saw angles - 0 - 180 °
Rear saw blade diameter - 800mm
Rear saw angles - 0 - 180°
Min and max height timber - 50 – 300mm
Weight saw +/- 14.000 Kg
Horizontal displacement speed - 450mm/s
Maximum speed infeed - 40 Planks / min
Vertical speed saw head - 130mm/s
Horizontal speed saw head - 130mm/s
Angle adjustment speed - 90°/s
