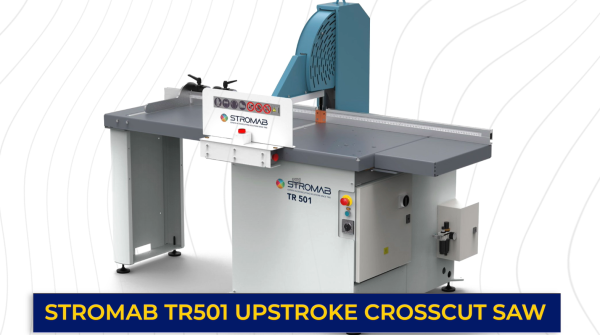

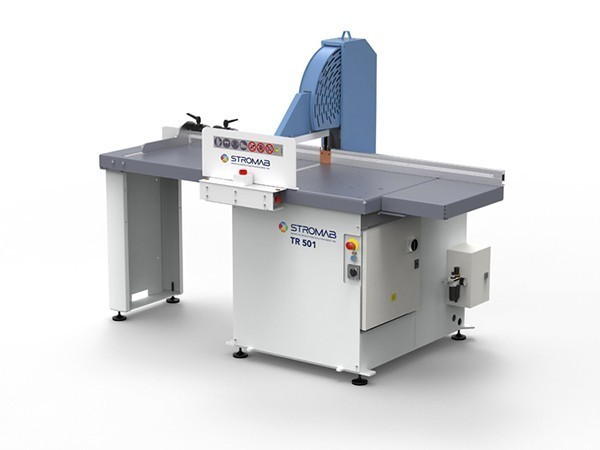

A robust upstroke crosscut saw, designed and built for general purpose crosscutting
A robust upstroke crosscut saw, designed and built for general purpose crosscutting, The machine is built with safety first in mind, but without detracting from its ergonomic features.The 10 hp saw motor allows for effortless cutting of most building, furniture, joinery and case making requirements, the pneumatic saw stroke speed is variably controlled to suit the conditions, with a top clamp holding the timber in position during the cutting cycle.
The machine comes complete with a 1000mm working table and scaled fence fitted from the left and right of the saw blade, with additional tables available as an option extra.The machines comes in 3 versions with fromt fixed guard, Front pneumatic guard or the upper safety hood, all versions include a 2 hand push button start , an emergency stop button located within reach of the operator, with automatic braking of the saw motor.
10 hp saw motor500mm TCT saw blade1000mm working table to left of saw1000mm working table from right of saw2 hand push button startPneumatic upstroke with feed speed controlCutting capacity 250 x 135mm or 380 x 30mm
Extended roller tables 1000mm ( Ø 60mm ) 1000 mm scale 0 to 1000 repeatedManual side stop ( 60mm )Manual side stop ( 250mm )Pneumatic side stop ( 60mm )Pneumatic side stop ( 330mm ) outside of guard ( 542mm for TR500 )500mm TCT saw bladeLaser ( 220 volts )Front pneumatic protection ( TR501/P )Upper protection on cutting area ( TR501/G )
