Woodworking Robotics Conveyor Loader & Unloader

Seamlessly integrates into your existing conveyor system, optimising workflow and minising downtime in your production processes.

About this Product

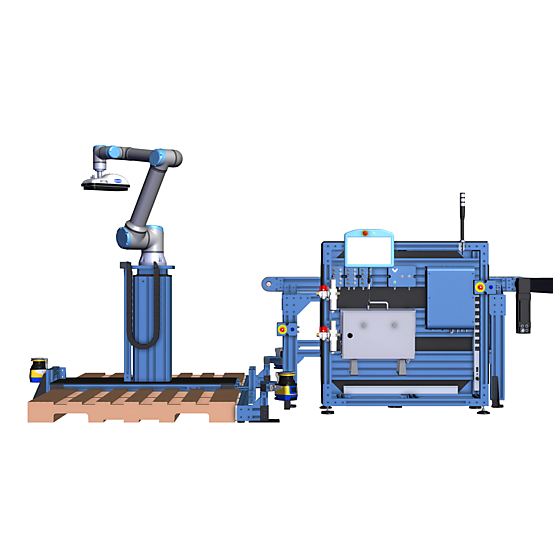

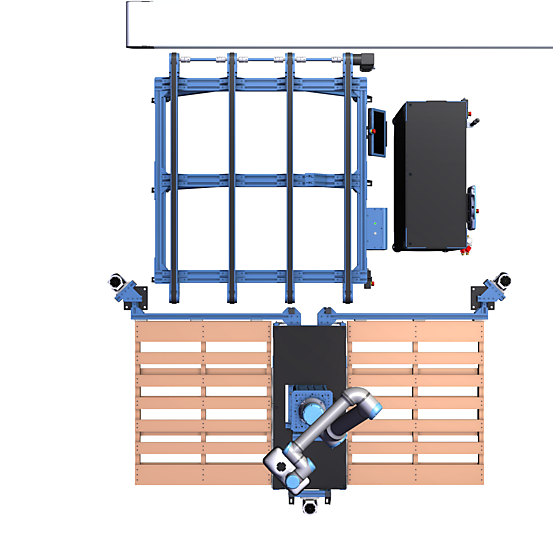

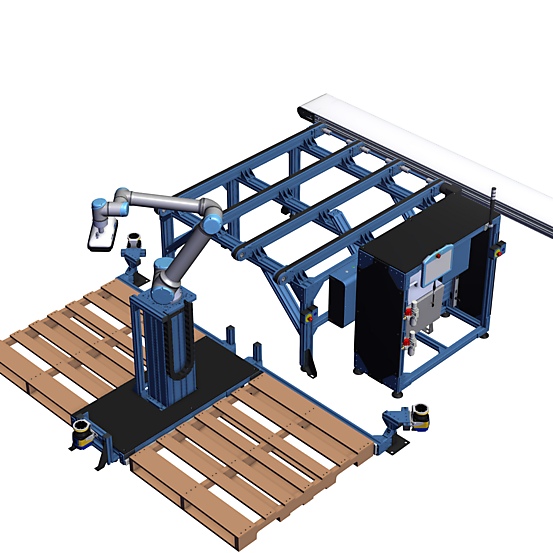

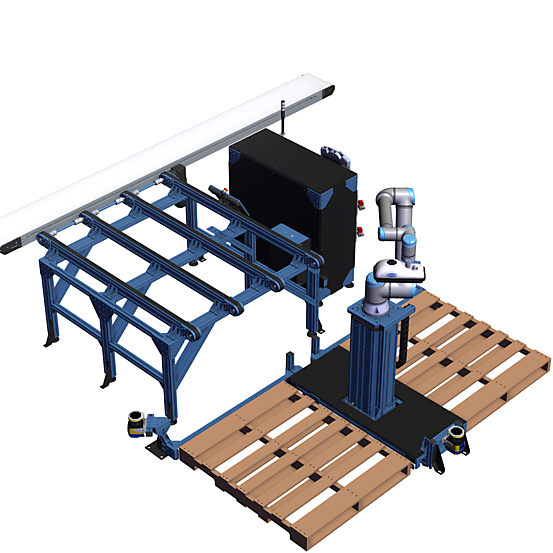

Our automated conveyor loading and unloading system is tailored to seamlessly integrate with any conveyor system. With our innovative optional range extender feature, one robot can efficiently handle both loading and unloading functions simultaneously, optimising your workflow and maximising efficiency.

Compatible with your existing conveyor setup, our automated loading and unloading system boasts customisable adaptability. Equipped with quick release Millibar grippers, setup times are drastically reduced allowing for swift transitions between tasks without sacrificing precision or reliability. Say goodbye to time consuming adjustments and hello to seamless operation!

For added convenience and mobility, our automated loading and unloading system can be easily mounted on a mobile robot base, for effortless redeployment across your facility. Whether you need to adapt to changing production demands or optimise floor space, this solution offers unmatched versatility.

  • Removes risk from repetitive and dangerous tasks
  • Optimises workflow with minimal downtime
  • Seamless integration with existing conveyor setup

Specification

Robot

Univeral Robot UR10e - 12.5kg payload with 1300mm radius reach

Universal Robot UR20e - 20kg payload with 1750mm radius reach

Hardware

Vention 585mm (UR10e) / 945mm (UR20e) HD base & pallet docking stations

EOAT

Venturi Vacuum System (part weights dependant)

Safety

Simple programming (PSX)

Sick - S-bot safety area scanner

CE Safety - integrated safety relay between machine and robot

Options
