Woodworking Robotics T-Nut Inserter

Automated T-nut insertion guarantees consistent and reliable performance, ensuring perfect results with every time. Available from £51,000 plus VAT.

About this Product

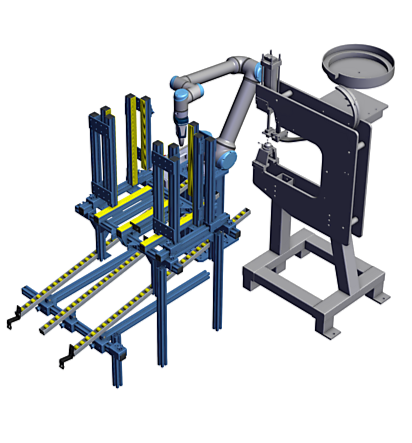

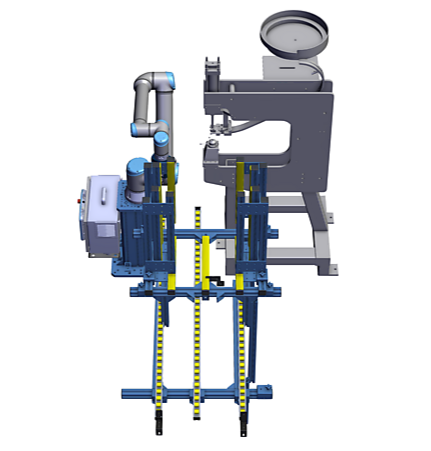

Experience the ultimate in flexibility with our highly adaptable T-nut inserter cell. No matter the complexity of your woodworking projects, our system ensures precise insertion of T-nuts into timber components.

Loaded via our customisable adjustable hopper, our automated system maximises uptime, allowing for up to one hour of continuous production without the need for reloading. Say goodbye to frequent interruptions and hello to increased productivity and efficiency!

Whether you're working on small-scale or large-scale woodworking projects, our automated T-nut insertion system guarantees consistent and reliable performance, ensuring perfect results with every time.

Available from £51,000 + VAT - contact us for a bespoke quotation.

  • Customisable and adjustable hopper
  • Continuous production with minimal downtime
  • Integrated safety features and compact footprint
Specification

Robot

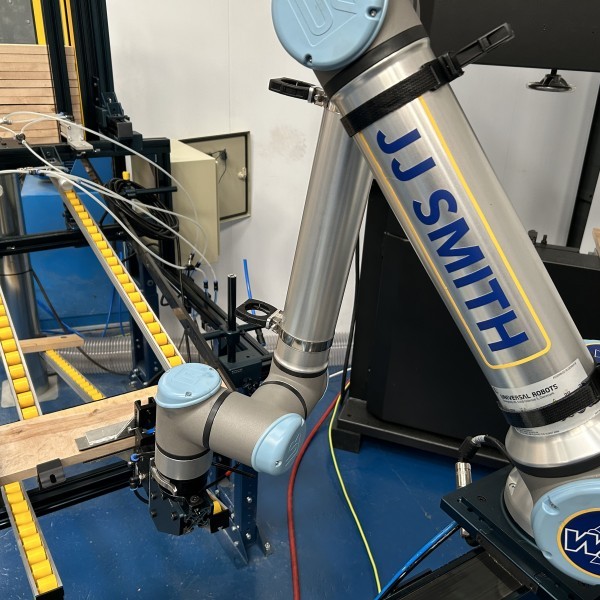

Universal Robot UR5e - 5kg payload with 900mm radius reach

Univeral Robot UR10e - 12.5kg payload with 1300mm radius reach

Univeral Robot UR20e - 20kg payload with 1750mm radius reach

Hardware

Vention 945mm Base & 1m wide "return to operator" hopper feed

T-nut Inserter

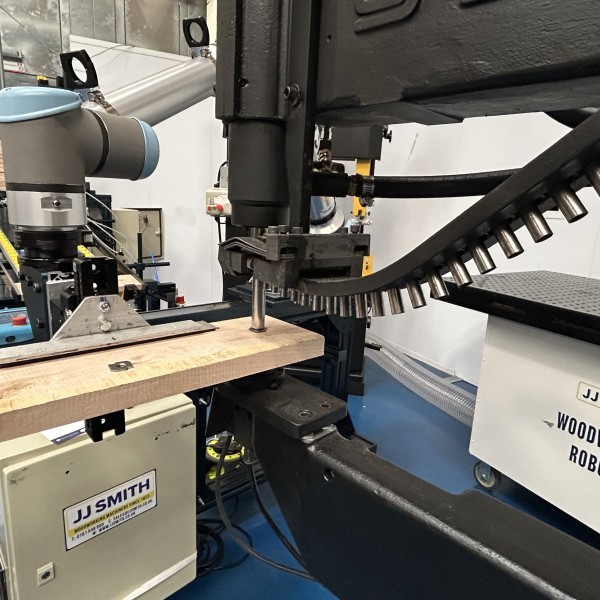

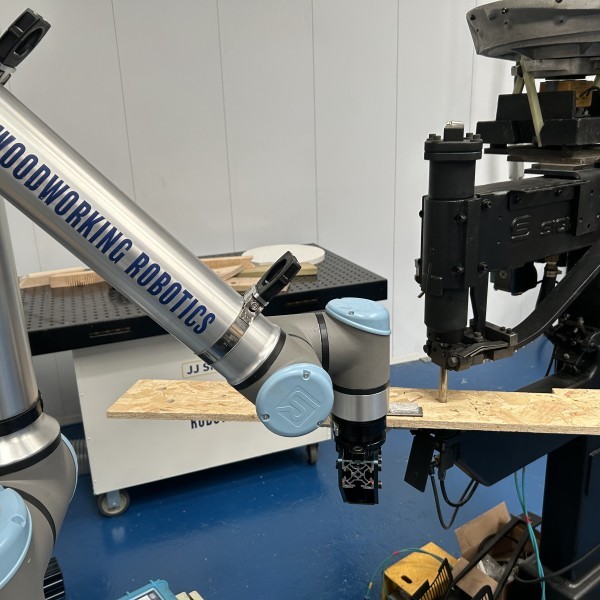

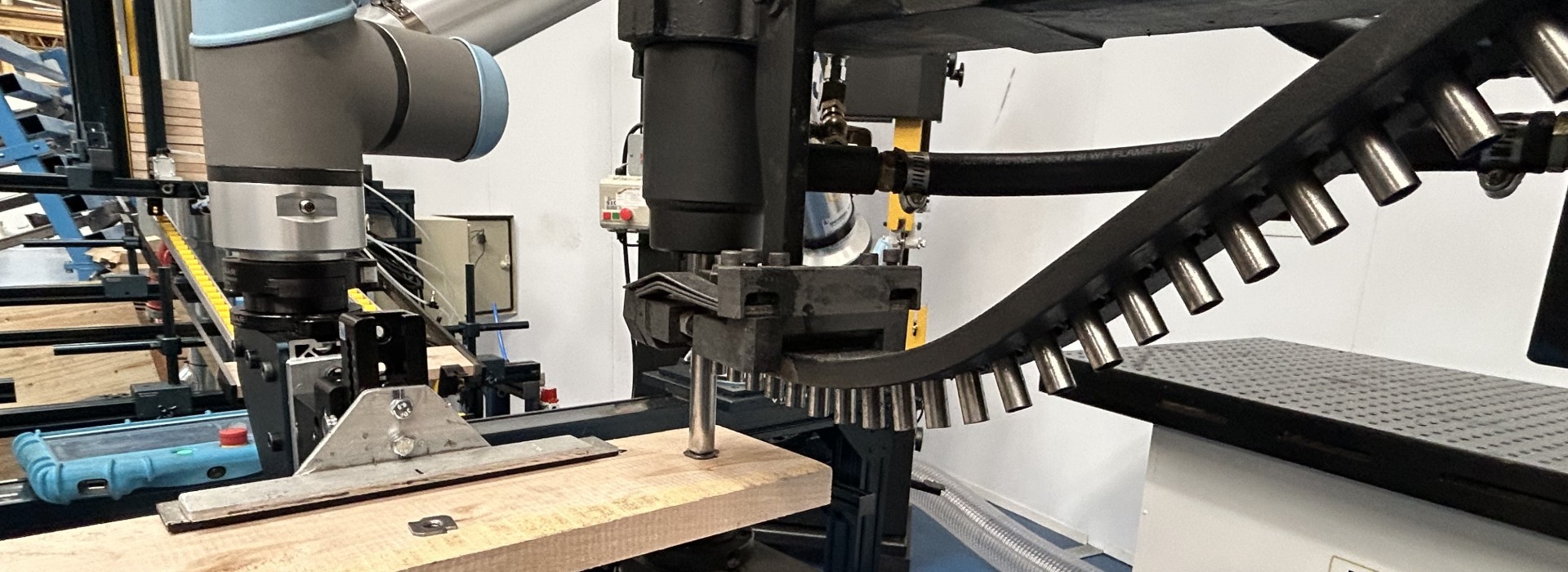

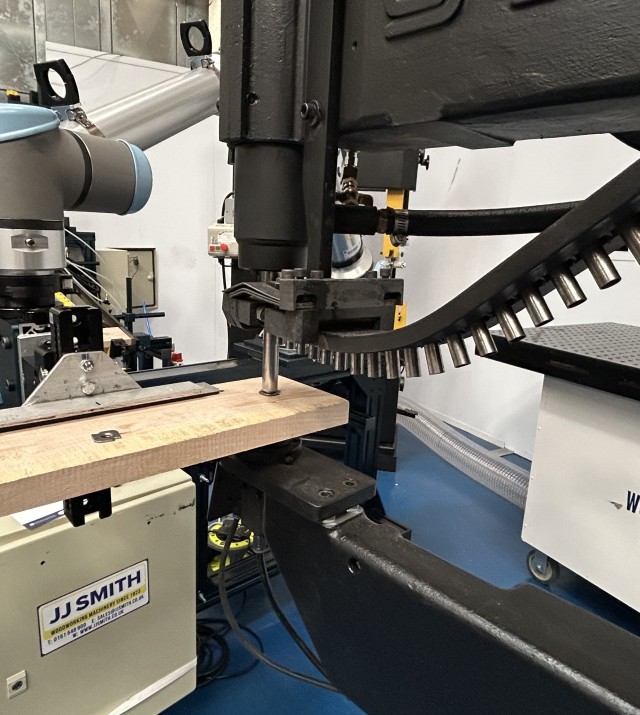

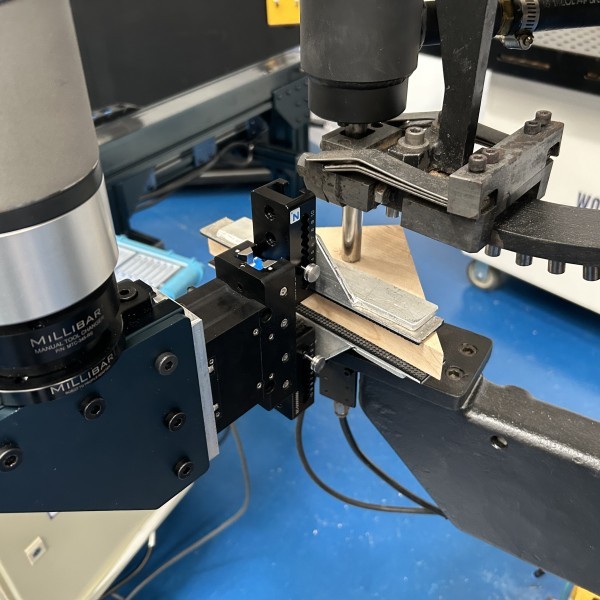

Sigma / Jet Press - T-nut riveting machine

EOAT

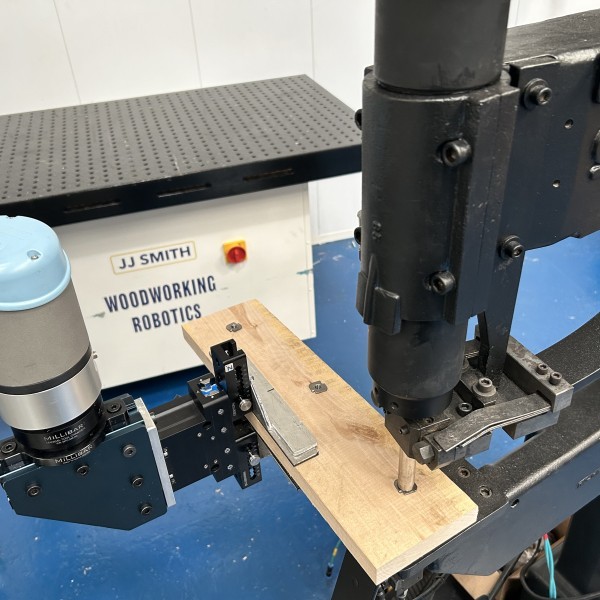

Zimmer GPP50 Parallel Gripper

Safety

Sick - S-bot safety area scanner

CE Safety - integrated safety relay between machine and robot

Pressure switch for air volume

Power & Air

Max 615w (robot) 13amp supply

6 bar operating pressure

Options
