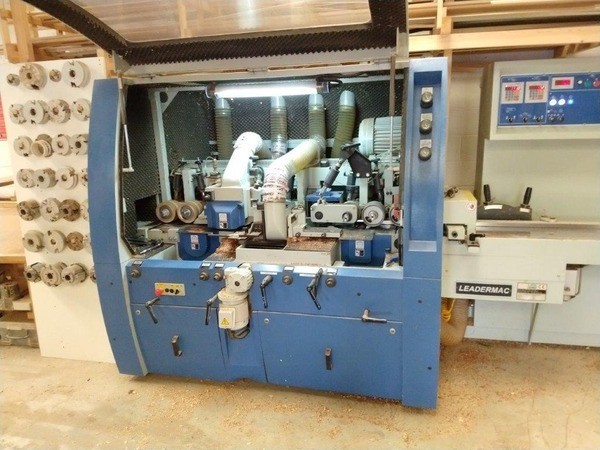

Leadermac Smartmac LMC523S 5 Head Throughfeed Moulder - 2013

About this Product

A heavy duty, cast iron construction, 5 head pre-straightening planer moulder that has a high standard specification. Features include chrome bed plates, driven bed rollers, full cardan drive feed system, pneumatic pressures centralised lubrication system.


Maximum size of timber admitted width 15 - 230 mm

Maximum size of timber admitted thickness 10 - 125 mm

2000mm long pre-straightening infeed table with 10mm adjustment

Head Sequence & Motor Powers

Bottom 7.5 hp

Right } 15hp

Left }

Top 10 hp

Bottom 10hp

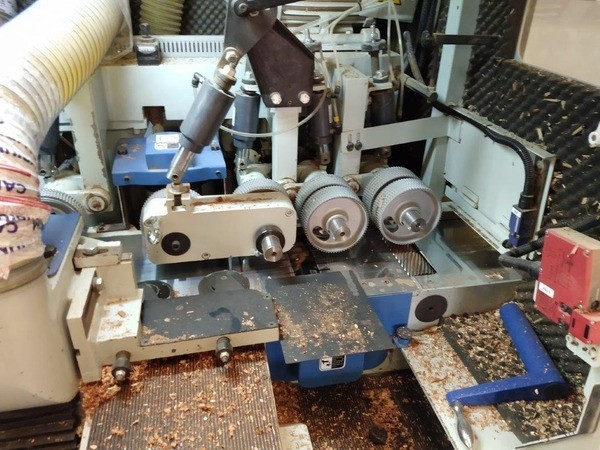

Full cardan shaft drive to feedworks

Pneumatic pressures to feed rollers

Feed roller diameter 140 mm

Feed motor x 4hp

Infinitely variable feed speeds 6 - 24m/min

Spindle diameters 40mm x 6000rpm

Automatic bed lubrication

Sound and safety enclosure

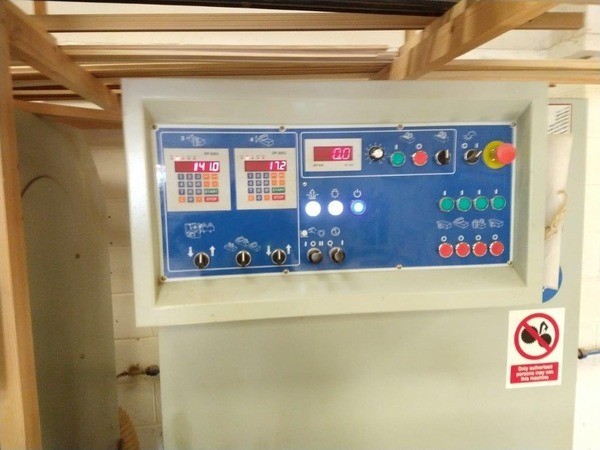

Electronic positioning and LED readout for width and thickness setting

Year - 2013 CE

This item is SOLD. Contact our team for details of new stock.
