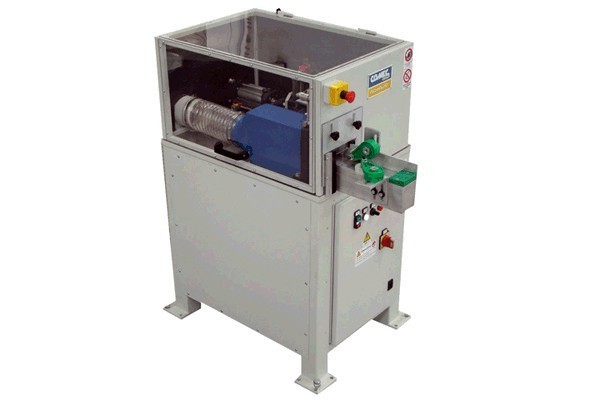

A simple to use machine that was specifically designed for the machining of the end of bed laths safely and quickly. All the operater has to do is insert the end of the lathe in to the machine and the milling cycle automatically starts and stops.
A simple to use machine that was specifically designed for the machining of the end of bed laths safely and quickly.
High speed
Safe operation
Simple operation
A simple to use machine that was specifically designed for the machining of the end of bed laths safely and quickly. All the operater has to do is insert the end of the lathe in to the machine and the milling cycle automatically starts and stops.
1 x electro spindle 2.2kw at 12000 rpm with inverter.
Adjustable vertically with screw / siko mechanical readout to set milling depth.
Max. length of milling 80mm - adjustable.
Max. width of component - 80mm.
Max. component thickness 50mm.
Solid profile cutter block 80mm dia.
Extraction point 120mm dia.
Safety guarding according to CE regs. 415/3/50.
